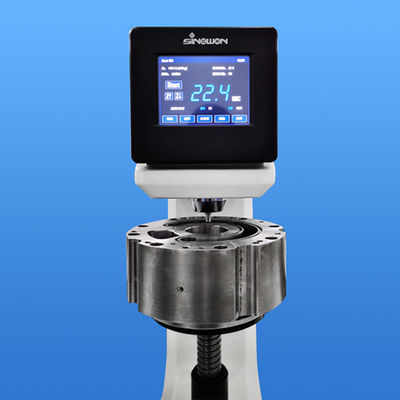

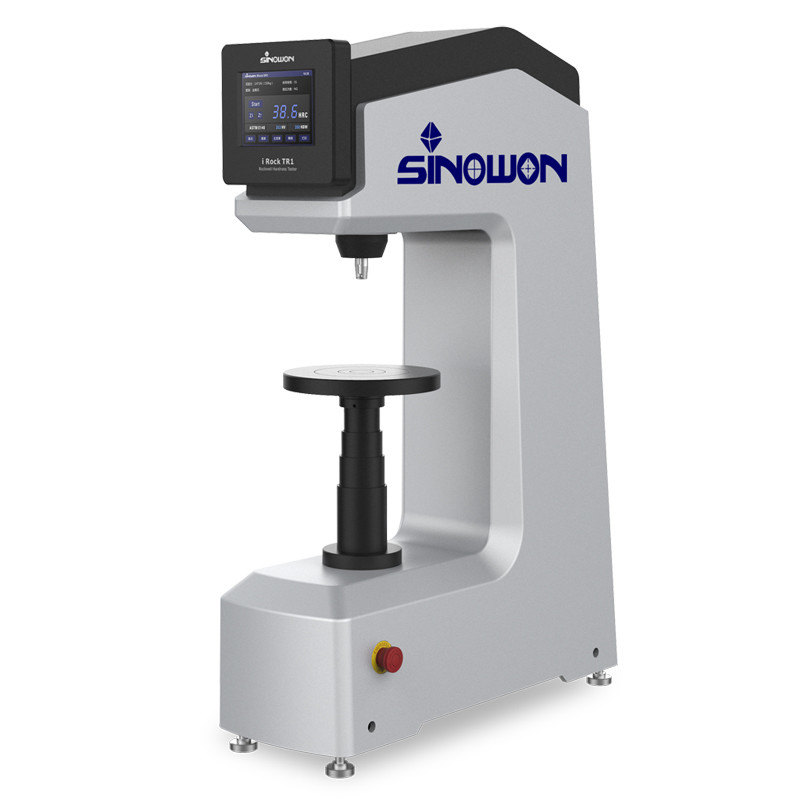

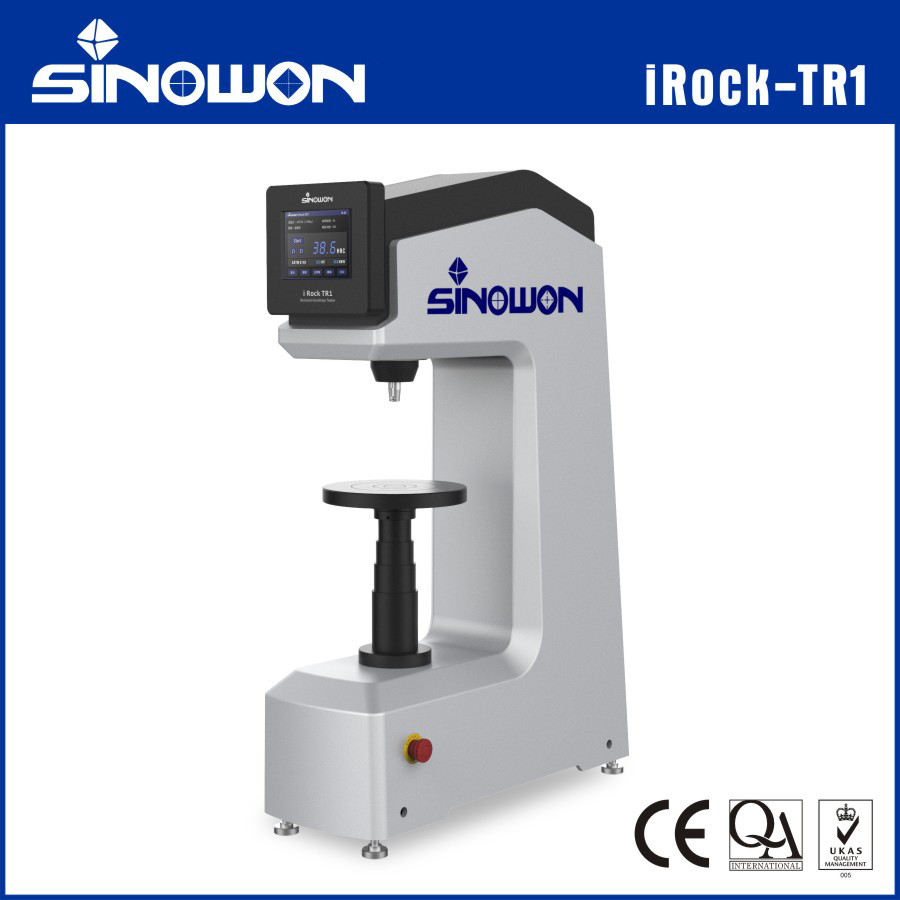

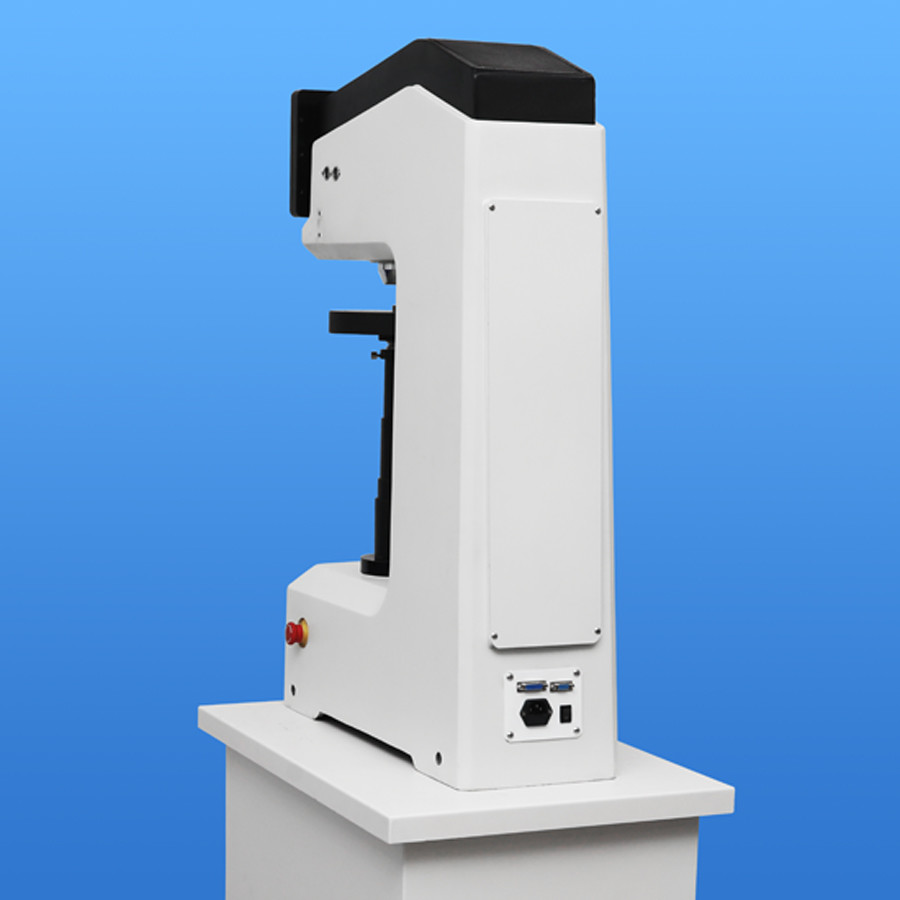

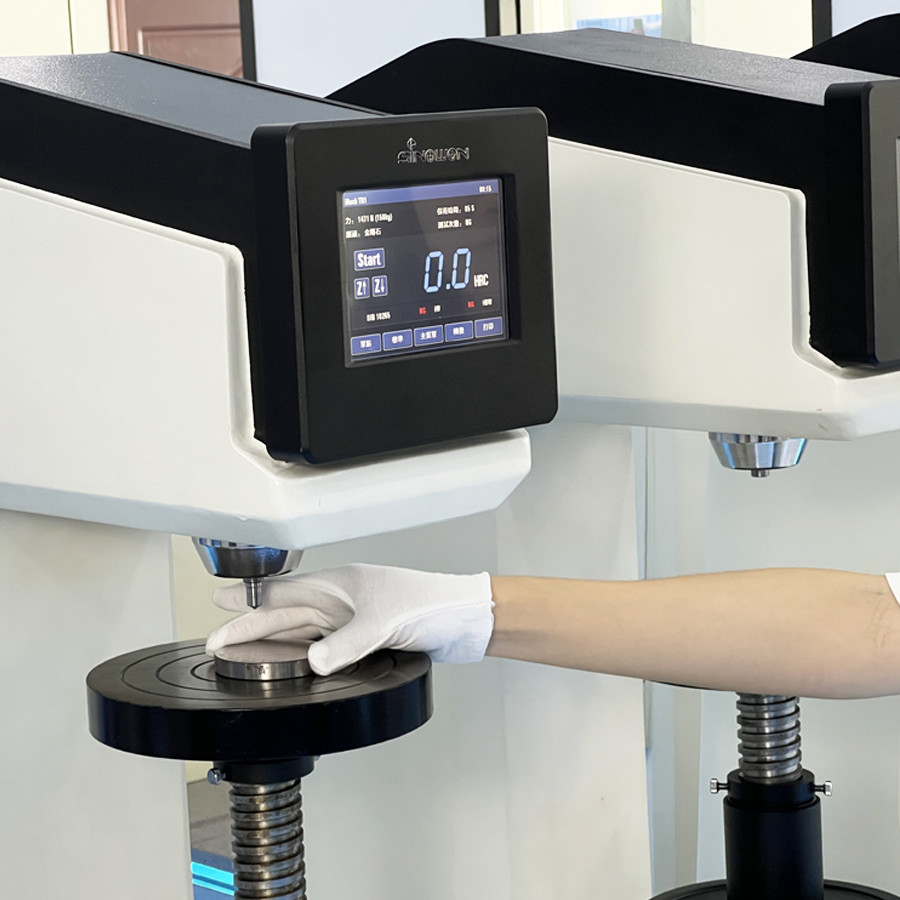

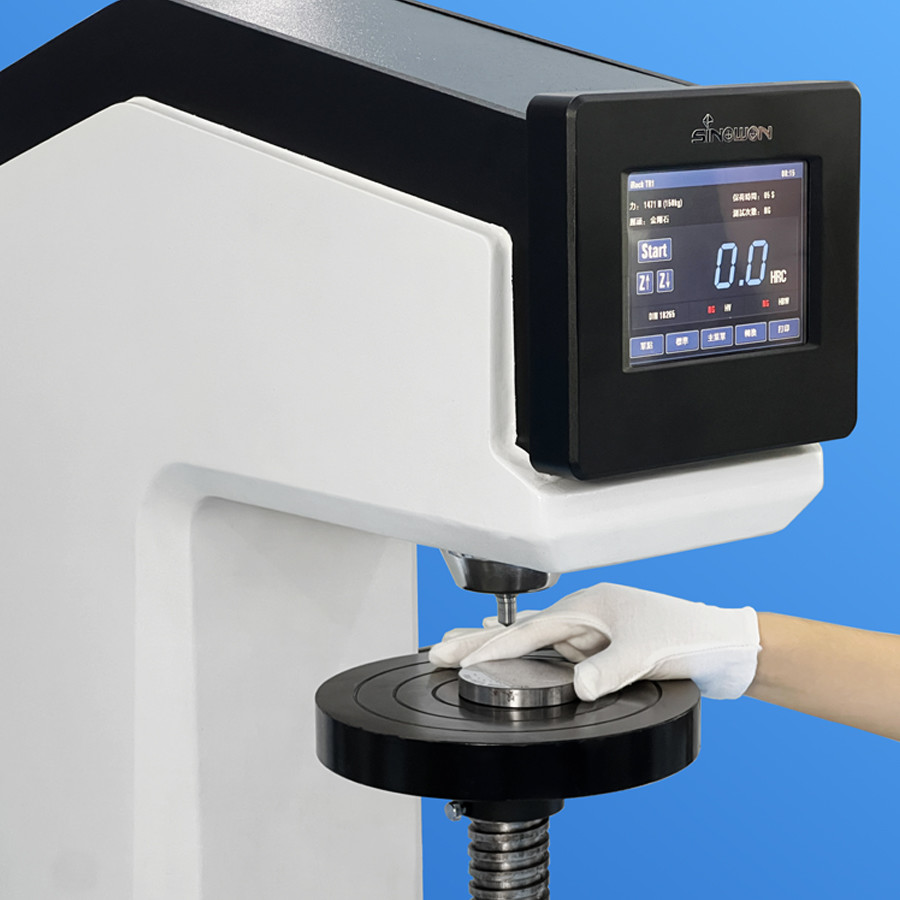

Full-Auto Rockwell Hardness Tester iRock-TR1
Features:
● A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.

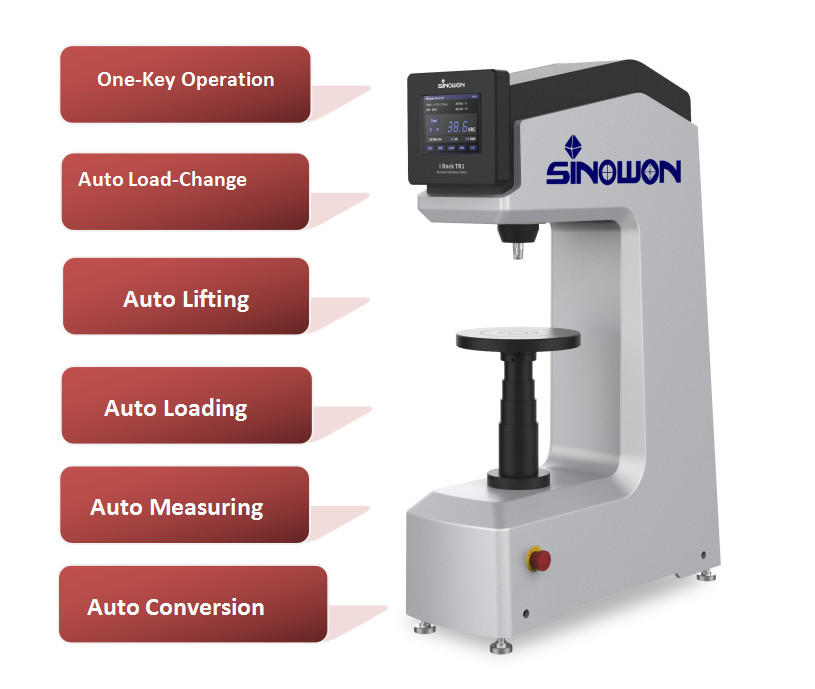

● One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.

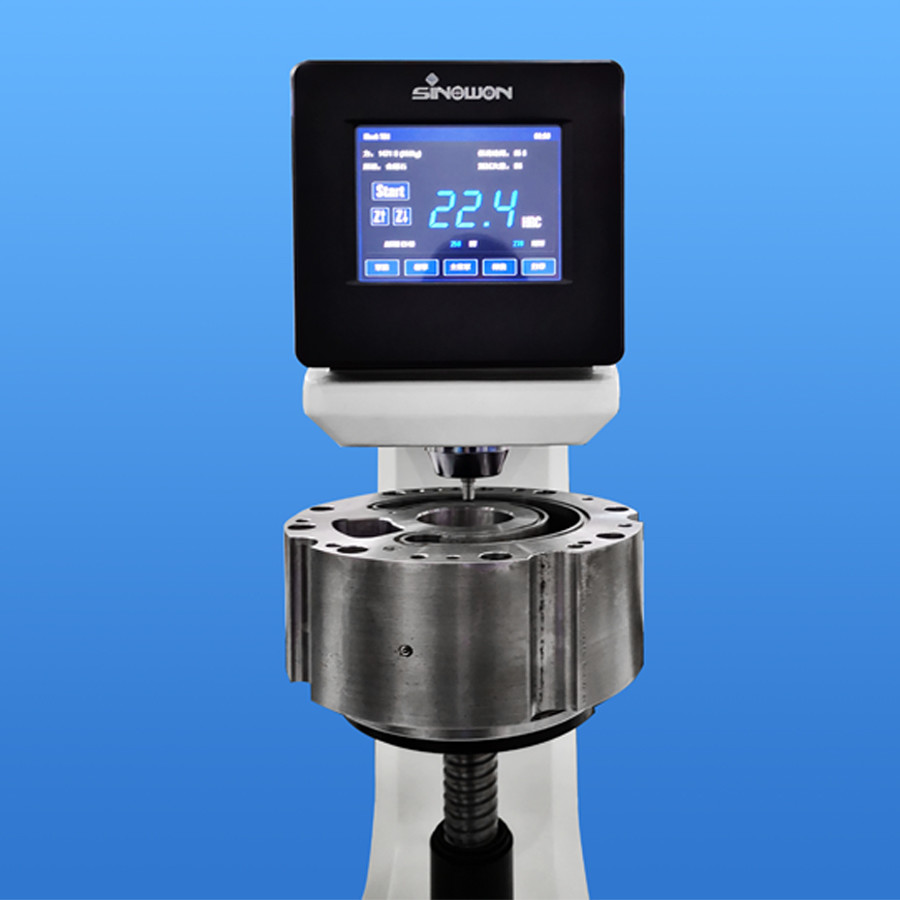

● Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.
● Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.
● Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.
● With software compensation function, available to compensate ±3HR, need not mechanical adjustment.
● With function of auto conversion according to ASTM E140, without checking hardness contrast table.
● Available to switch languages.: Chinese,English,German,Portuguese,Turkish,Czech,Korean.
● Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis
● With optional wireless Bluetooth printer, there is no need to record results and report by hand.
● With optional data analysis software and Bluetooth receiver to input and analyze data.
● Support FexQMS data analysis and control software, improve integral control and decrease material consumption.
Applications:
● Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
● Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
● Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Specifications:
| Commodity |
Full-Auto Twin Rockwell Hardness Tester |
| Model |
iRock-TR1 |
| Code # |
811-350 |
| Preliminary Test Force |
3Kgf(29.4N);10Kgf(98.1N) |
| Total Test Force |
15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N);60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N) |
| Full Rockwell Scale |
HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV;15T,30T,45T;15T,30T,45T; 15N,30N,45N |
| Dwell Time |
1-60s adjustable |
| Display Screen |
5.2 ”Color touch screen; Resolution:640*480 |
| Resolution |
0.1HR |
| Loading Mode |
Auto loading/dwell/unloading |
| Conversion Scale |
HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
| Conversion Standard |
ASTM,DIN |
| Language |
Chinese,English,German,Portuguese,Turkish,Czech,Korean |
| Software Correction |
-3.0HR ~ +3.0HR, step value 0.1HR |
| Data Processing |
2000 group single dat, line chart of group data function; respectively provide single data viewing and group data viewing |
| Print |
Optional wireless printer |
| Max. Height of Specimen |
280mm |
| Throat |
170mm |
| Power Supply |
AC 220V/50Hz;AC110V/60Hz |
| Dimension |
620 x 210x 900mm |
| Packing Dimension |
710×530×1000(mm) |
| Net Weight /Gross |
125Kg/143Kg |
| Execution standard |
GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
