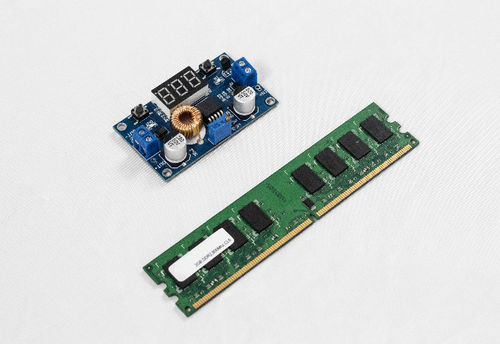

Example: PCB are made using electronic printing, so they called “printed” circuit boards. PCB is an important electronic component in electronics industry, is the support body of electronic component, is the carrier of electronic connection of electronic component. Its dimensional requirements are very accurate and the vision measuring machine can accurately measure the size of the PCB board to ensure product quality.

Customer Measurement Requirements：Measurement of the geometrical dimensions such as length, width, intervals, diameters, position degrees etc. of PCB.

Solution: AutoVision is a high-precision mobile bridge automatic image measuring instrument product, using a mobile bridge structure. The measurement workpiece is fixed, to ensure the measurement accuracy and stability. The use of Sinowon high-precision gantry automatic vision measuring machine model AutoVision 542 can meet the measurement requirements.

Benefits:

• High Stability: The moving bridge structure keeps the measured workpiece stationary, getting rid of inertial interference and improving measurement accuracy.
• High-precision Measurement: 2million pixel 1/1.8" high-resolution color digital camera, sharp imaging, stronger image quality. The whole series is equipped with Sinowon's 10-speed zoom Zoom650MC high-resolution coaxial light electric lens as standard, which doubles the accuracy and service life;
• Efficient Operation: IMeasuring auto vision measuring machine software. Its measurement, input and output functions are powerful, and the human-computer interaction is good.
• Multi-functional Applications: It can be equipped with an optional MCP tactile probe to upgrade the machine to a 3D tactile measurement system. It can also be equipped with an optional confocal white light sensor, which can upgrade the machine to a laser scanning measurement system;
• Data Export: The vision measuring machine can export the measurement data to Excel, Word and other formats, which is convenient for users to analyze and process data.

Sinowon Innovation Metrology Manufacture Limited.'s vision measuring machine has a wide range of application prospects in the PCB industry. Through high-precision, high-efficiency and automated measurement, it can meet the needs of the PCB industry for measurement, effectively reduce the workload and complexity of PCB circuit board finished product inspection and subsequent rework, and help enterprises optimize production efficiency.
