The key role of the vision measuring machine in the mobile phone manufacturing industry

The example is the measurement of the dimensions of the outer frame of a mobile phone:

The frame induction of mobile phone: The frame of mobile phone needs to be produced in large quantities, so the externa dimension is required meet the standard, and the vision measuring machine can detect whether the length and width of the frame meet the requirements.

Measurement requirements: Geometric dimensions such as the length and width of the shape and spacing of the assembly position are required to be measured.

Solution: According to the customer needs, we recommend the vision measuring machine model MVS-322A to customers.

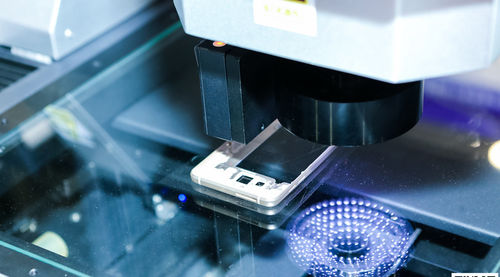

Measurement: The cantilever auto vision measuring machine MVS-322A was used and combined with imeasuring measurement software. We need to fix the product on the glass table of the measuring machine and set the customer coordinates calibrated by drawing. The drawing requires data measurement and annotation of the actual product. The current programming is saved, and subsequent related products can be automatically tested by simply calling up.

The advantage of cantilever auto vision measuring machine:

1. Fast and accurate measurement:

Cantilever vision measuring machine use advanced optical sensor and image processing algorithms to accurately measure the size and shape of mobile phone accessories in a short period of time. This greatly improves production efficiency.

2. Data analysis and feedback:

The cantilever auto vision measuring machine stores and tracks the measurement data of each workpiece, providing strong support for quality management. If a problem is found during the production process, the user can trace it back to the specific measurement data, find out the root cause of the problem, and take steps to correct and improve it.

3. Reduce labor costs:

The auto vision measuring machine can automatically record and process the measurement data without human intervention. The significantly reduces the time and labor costs of data processing.

In today’s highly competitive mobile phone market, manufactures are faced with the challenge of improving production efficiency while maintaining high quality. The emergence of auto optical vision measuring machine with high precision and automation, has become a key tool to solve the problem. Sinowon’s vision measuring machine has become a powerful assistant for various mobile phone accessories manufacturers. We believe that with the application of optical measuring machine in the mobile phone manufacturing industry, the production of mobile phone accessories will further develop in a more intelligent direction.
