You want to know what a vision machine is?

What is a vision measuring machine?

Vision measuring machine is a dimensional measuring device. It uses digital imaging technology to measure and analyze objects. By taking an image of the object, the computer is used to process the image data to calculate the size, shape, position, angle and other parameters of the object, and obtain the measurement results.

The vision measuring machine is suitable for all application field with 2D plane measurement purposes, such as the measurement of mobile phone glass, touch screen and the flatness, warpage, thickness and curved surface of the shell, as well as electronics, molds, injection molding, automobiles, medical and other manufacturing field.

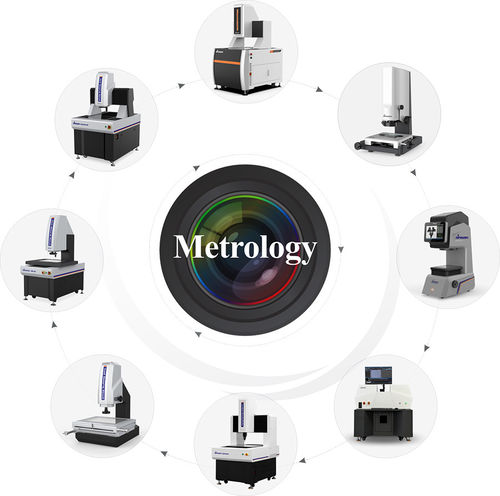

There is another very special name for the vision measuring machine, which is called 2D measuring machine. It mainly refers to the fact that the vision measuring machine only has the XY axis of the platform of the workpiece to be measured, and the light source cannot move, so the vision measuring machine is also known as the 2D measuring machine in the industry. It provides a solution for the measurement of small, thin, soft and complex existing parts. At present, our Sinowon vision measuring machine include mini manual vision measuring machine, high-precision manual vision measuring machine, cantilever high accuracy fully automatic vision measuring machine, gantry high accuracy fully auto vision measuring machine, heavy-duty auto vision measuring machine and composite auto vision measuring machine.

Features of the Vision Measuring Machine:

1.The measurement range is relatively large. Vision measuring machine can measure samples of different shapes and sizes, which is suitable for a variety of industries, such as mobile phones, electronics, molds, injection molding, automobiles, hardware, etc.

2. High-precision. Vision measuring machine using high-performance industrial camera, high-precision scale and professional geometric measurement software, can achieve high-precision measurement and analysis, and the error is basically controlled at the micron level.

3. High efficiency. The auto vision measuring machine can automatically complete a large number of measurement tasks according to the present measurement program, which greatly improves the production efficiency and quality, and also avoid the error caused by human operation.

4. Easy to operate. The operate interface of vision measuring machine is easy to operate and simple. The user only needs to follow the instruction of software to complete the measurement.

5. Multifunction. The vision measuring machine is equipped with a variety of measurement functions, such as length, diameter, angle, to meet the requirement for different customers.

The most important thing to choose a vision measuring machine is to see whether image is clear and whether the accuracy is up to standard (the general accuracy selection standard is 1/3~1/8 of the full distance of the tolerance zone). The captured images are transferred to a computer’s data acquisition card via a data cable, and then imaged by software on a computer monitor. Finally, the operator makes a quick measurement on the computer with the mouse.

Sinowon precision instrument’s auto vision measuring machine can measure the contour and surface shape size of various precision parts with high efficiency, such as points, lines, circles, arcs, rectangles, grooves, rings, open curves, closed curves, cylinders, cones, spheres, planes. It can also measure the circumference, area, diameter, etc. of curve. At the same time, it can carry out parallelism, perpendicularity, angle, symmetry, position, concentricity, straightness, flatness, etc., which is suitable for high-precision product inspection.
