2D Mini Vision Measuring Machine

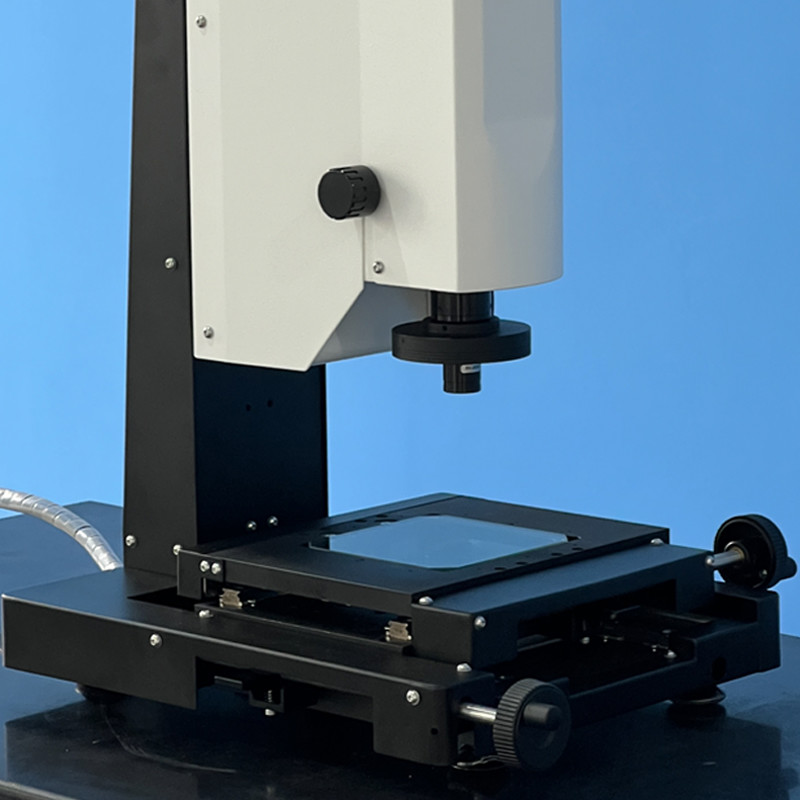

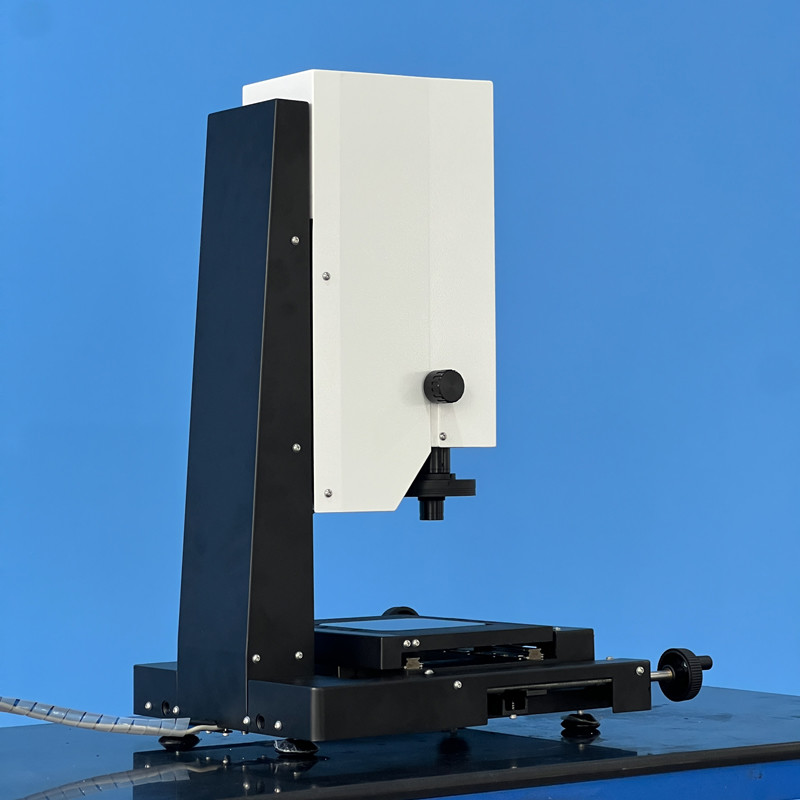

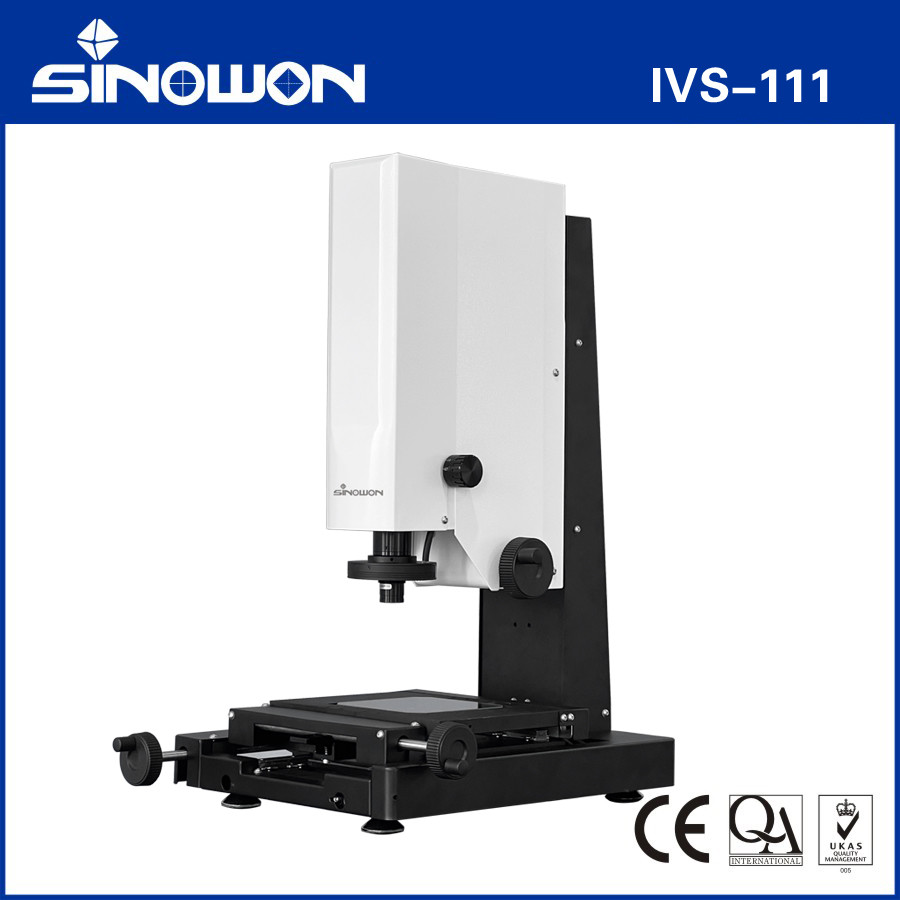

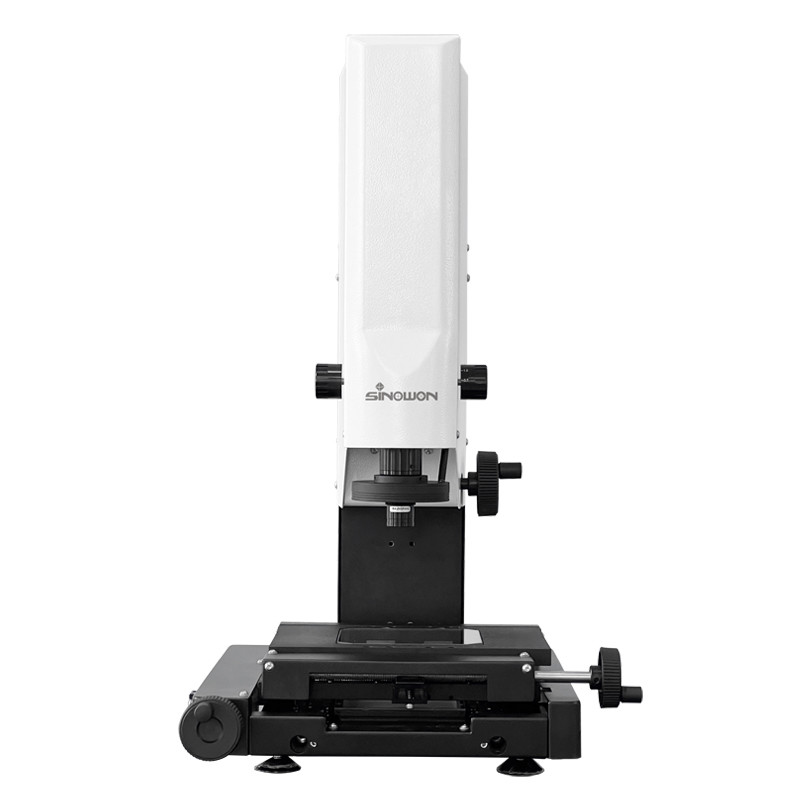

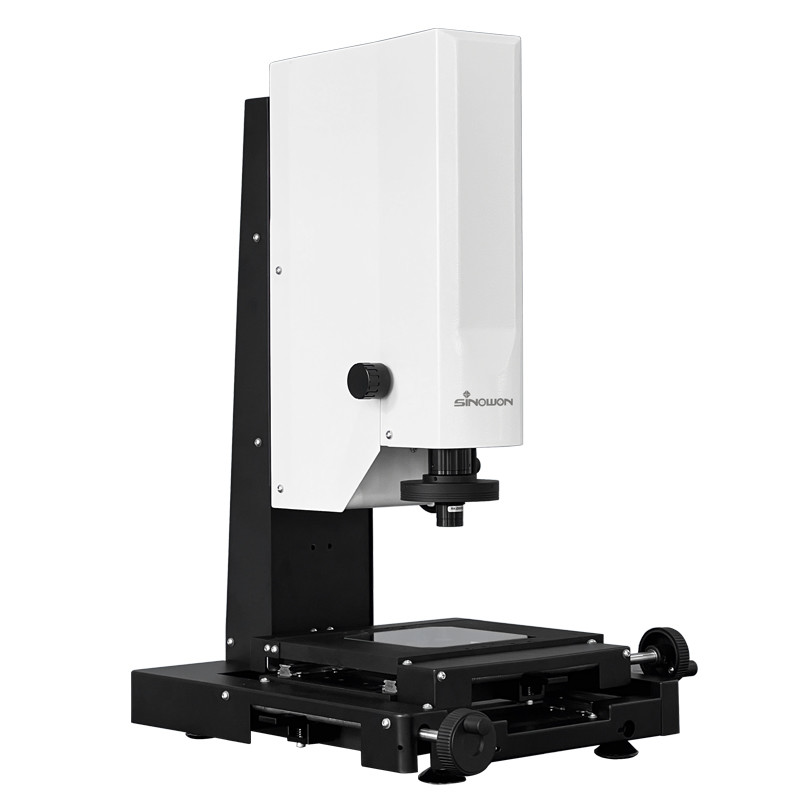

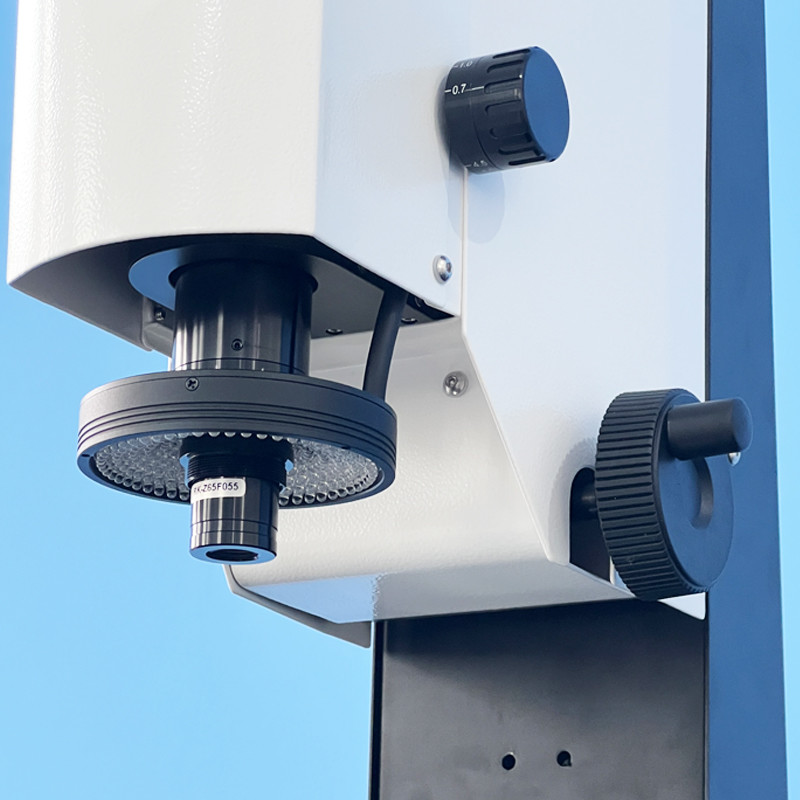

2D Mini Vision Measuring Machine IVS-111 Series

Product Characteristic:

l IVS-111 is a Sinowon new generation of portable 2D optical measuring system for the geometric dimension measurements;

l Adopt precision T6 aluminum base and column to ensure the stability and precision of the machine;

l Precision grade P V-shaped cross guide, non-slip rod, and quick-moving locking device to ensure that the workbench return error is within 2um;

l Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within≤3.0+L/200um;

l Powerful image measurement software, it can automatically output test reports in formats such as Word, Excel, PDF, TXT, dxf, etc.

Technical Specifications:

Note:

• L represents the measurement length, in millimeters, the mechanical accuracy of the Z axis
• Computer system is optional, and the video magnification is approximate and depends on monitor size and resolution.
