High Precision Digital Toolmakers Measuring Microscope 100X50mm Working Stage Travel

1 Sets
MOQ
Can be discussed
Price
High Precision Digital Toolmakers Measuring Microscope 100X50mm Working Stage Travel
Features Gallery Product Description Request A Quote
Features
Specifications
Code#: 531-130
Metall Stage Size: 252×252mm
Glass Stage Size: 196×96mm
Resolution: 0.5um
Measuring Accuracy: ≤5um
Measuring Device: Digital Readout DP400
Max.Height Of Specimen: 115mm
Max.Weight Of Specimen: 5Kg
Standard Working Distance: 67mm
Dimension(D×W×H): 415*315*420mm
Net Weight: 25Kg
Highlight:

Digital Toolmakers Measuring Microscope

,

High Precision Toolmakers Measuring Microscope

,

High Precision Microscope 100X50mm
Basic Infomation
Place of Origin: Jiangmen, China
Brand Name: SINOWON
Certification: CE
Model Number: STM-1050
Document: D4 Sinowon STM-1050 Digital...a1.pdf
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Month
Product Description

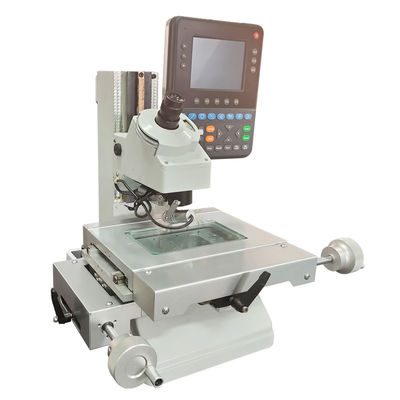

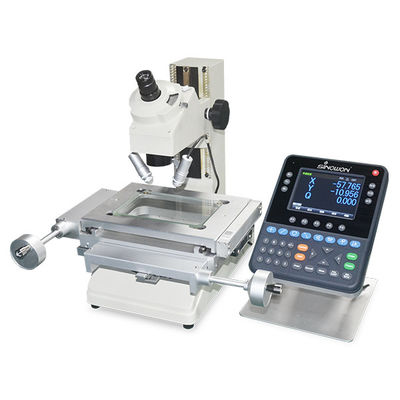

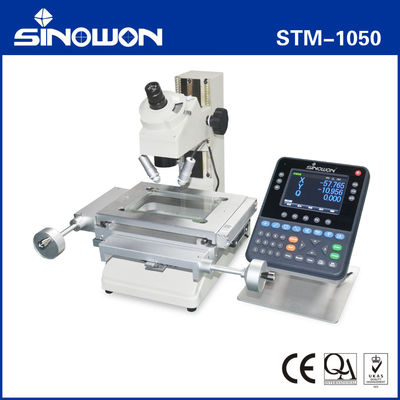

Digital Toolmakers Microscope STM-1050



High Precision Digital Toolmakers Measuring Microscope 100X50mm Working Stage Travel 0



Characteristics:



● Precision working stage travel:100 x50mm；

● High precision linear scale : 0.5um；

● Color screen multifunctional digital readout : DP400；

● Optical objective with adjustable LED ring reflector illumination;

● With high accuracy and high stability.





Application:



It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The digital toolmakers microscope can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.





Specification:



Model STM-1050
Code#

531-130
Metall Stage Size 252×252mm
Glass Stage Size 196×96mm
Resolution 0.5um
Measuring Accuracy ≤5um
Measuring Device Digital Readout DP400
Max.Height of Specimen 115mm
Max.Weight of Specimen 5Kg
Max.Magnification 150×(Φ0.13mm)(15×Eyepiece+10×Objective)
Min.Magnification 20×(Φ6.5mm)(10×Eyepiece+2×Objective)
Standard Magnification 30×(Φ0.13mm)(15×Eyepiece+2×Objective)

Standard Working Distance

 67mm
Optical Tube Monocular with 30°depression angle

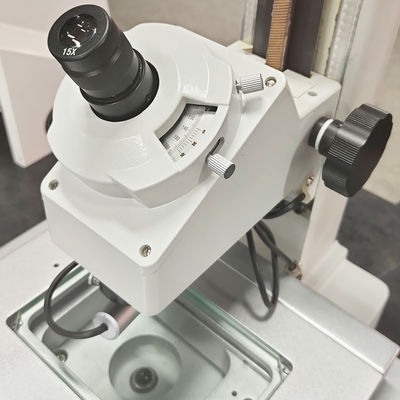

15×Eyepiece with Crossline Reticle
Eyepiece WF15/13
Objective Magnification:2×
Working Distance:2.638"(67mm)
Eyepiece Protractor Range 360°
Eyepiece Protractor Graduation 1°
Vernier Angle Reading 6’
Contour Illumination Light source:Tungsten bulb(24V;2W)
Surface Illumination Ring LED illumination brightness adjustable

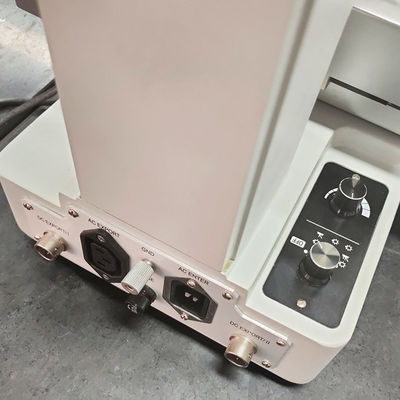

Power Supply AC110V/60Hz;220V/50Hz
Dimension(D×W×H) 415×315×420mm
Packing Dimension(D×W×H) 210×333×391mm
Gross/Net Weight 30Kg/25Kg
