Name: Portable Leeb Hardness Tester HL HRC HRA HV HB HS HRB Hardness Tester
Brand: Hoyamo and Sinowon Inc
SKU: SH-200
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 852-120

Hardness Scale: HL,HRC ,HRB, HRA, HV,HB,HS

Measuring Direction: 0~360°

Indicating Error: HLD:±5; HRC:±1; HB:±4

Language: Option Chinese, English, German, Portuguese, Turkish

Memory: 500 Groups Test Maximum

Printer: Optional Printer

Shell Material: Plastic

Data-Output: RS-232

Impact Device: D (standard)

Dimension: 148mm*72mm*30mm

Power Supply: AA/3V

Weight: 220g (Excluding Impact Device And Printer)

Highlight:

Portable Leeb Hardness Tester

HRA Leeb Hardness Tester

HRB Hardness Tester

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: SH-200

Document: D4 Sinowon SH-200 Portable...a1.pdf

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Portable Leeb Hardness Tester HL HRC HRA HV HB HS HRB Hardness Tester

Product Description

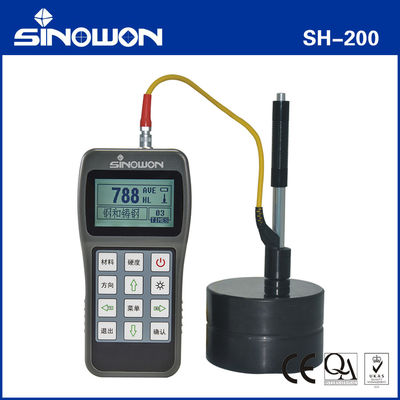

Portable Leeb Hardness Tester SH-200

Features:

● Large memory for 500 groups test results;

● Auto-recognition of connected Impact Device;

● Auto-recognition of Impact Device test direction;

● RS-232 interface (to hyperterminal or data view software);

● Time and date setting; auto-clock;

● Back-light LCD;

● Direct display of hardness scales HRB, HRC, HV, HB, HS, HL;

● Conversion to tensile strength σb (U.T.S.);

● For all metallic materials;

● Impact device provides testing at any angle, even upside down;

● High accuracy ±6HLD and conforms to ASTM A 956;

● Six impact devices are available for special applications.

Specifications:

Commodity	Portable Leeb Hardness Tester
Model	SH-200
Code#	852-120
Hardness Scale	HL,HRC ,HRB, HRA, HV,HB,HS
Measuring Range	(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB
Measuring Direction	0~360°
Indicating Error	HLD:±5; HRC:±1; HB:±4
Language	Option Chinese, English, German, Portuguese, Turkish
Memory	500 Groups test maximum
Printer	Optional Printer
Shell Material	Plastic
Statistics	Average value, min-max ,upper-lower limits
Data-Output	RS-232
Impact Device	D (standard)
Optional impact Devices	DC/D+15/DL/G/C/E
Work piece radius (convex/concave)	Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight	2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple	5mm,expect with impact device G:10mm,C:1mm
Workpiece min. case hardened depth	0.08mm except C impact device 0.2mm and impact device 1.2mm
Dimension	148mm72mm30mm
Power Supply	AA/3V
Operating Temperature	0 ℃ to 40 ℃
Weight	220g (Excluding impact device and printer)

Measuring Range / Materials:

Material	HLD	HRB	HRC	HB	HV	HSD
Steel and cast steel	300-900	38-100	20-68	81-654	81-955	32-100
Cold work tool steel	300-840	—	20-67	—	80-898	—
Stainless steel	300-800	46-101	—	85-655	85-802	—
Grey cast iron	360-650	—	—	93-334	—	—
Nodular cast iron	400-660	—	—	131-387	—	—
Cast aluminum alloys	170-570	23-84	—	19-164	—	—
Brass	200-550	13-95	—	40-173	—	—
Bronze	300-700	—	—	60-29	—	—
Copper	200-690	—	—	45-315	—	—

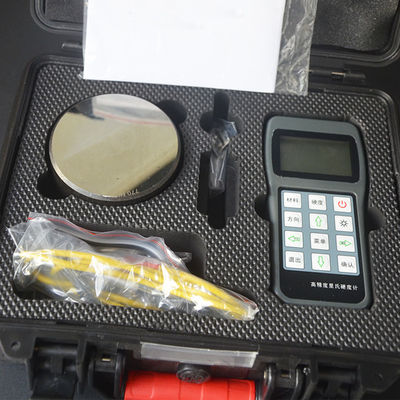

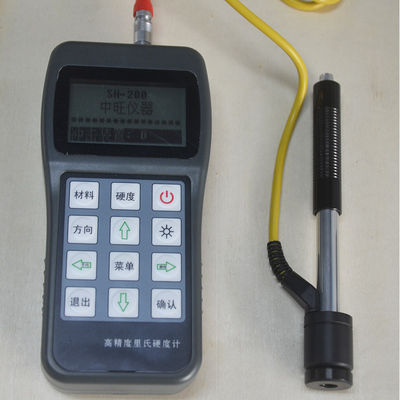

Portable Leeb Hardness Tester HL HRC HRA HV HB HS HRB Hardness Tester 1

Portable Leeb Hardness Tester HL HRC HRA HV HB HS HRB Hardness Tester 2
