Name: Portable Electronic Hardness Tester Brinell For Hardness Measurement SHB-3000E
Brand: Hoyamo and Sinowon Inc
SKU: SHB-3000E
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 831-111

Measuring Range: (8~650) HBW

Hardness Display: Check The Table Of Brinell Hardness Scale

Magnification Of Microscope: Analogue 20x Microscope

Max Height Of Specimen: 225mm

Instrument Throat: 135mm

Dimension: 893*720*747mm

Gross/Net Weight: 160Kg/130Kg

Highlight:

Portable Electronic Hardness Tester

Electronic Hardness Tester Measurement

Electronic Portable Hardness Tester Brinell

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: SHB-3000E

Document: D4 Sinowon SHB-3000E Electr...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Portable Electronic Hardness Tester Brinell For Hardness Measurement SHB-3000E

Product Description

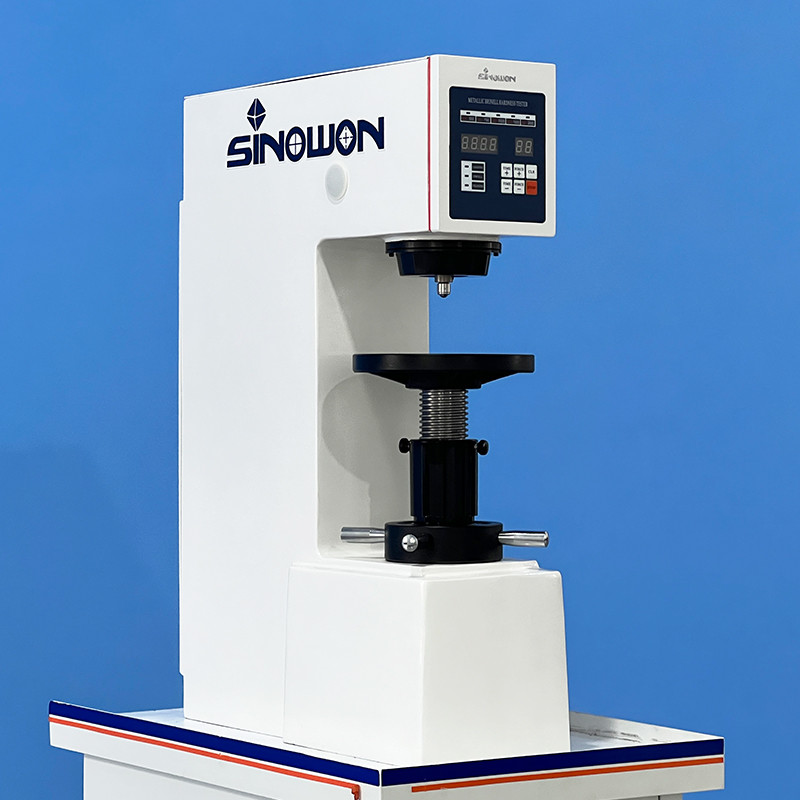

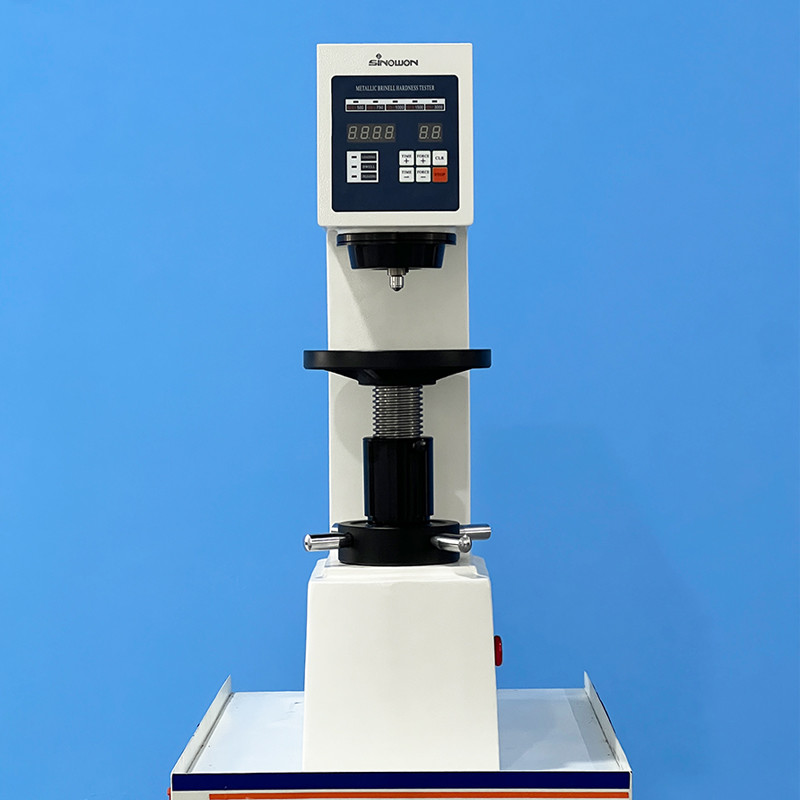

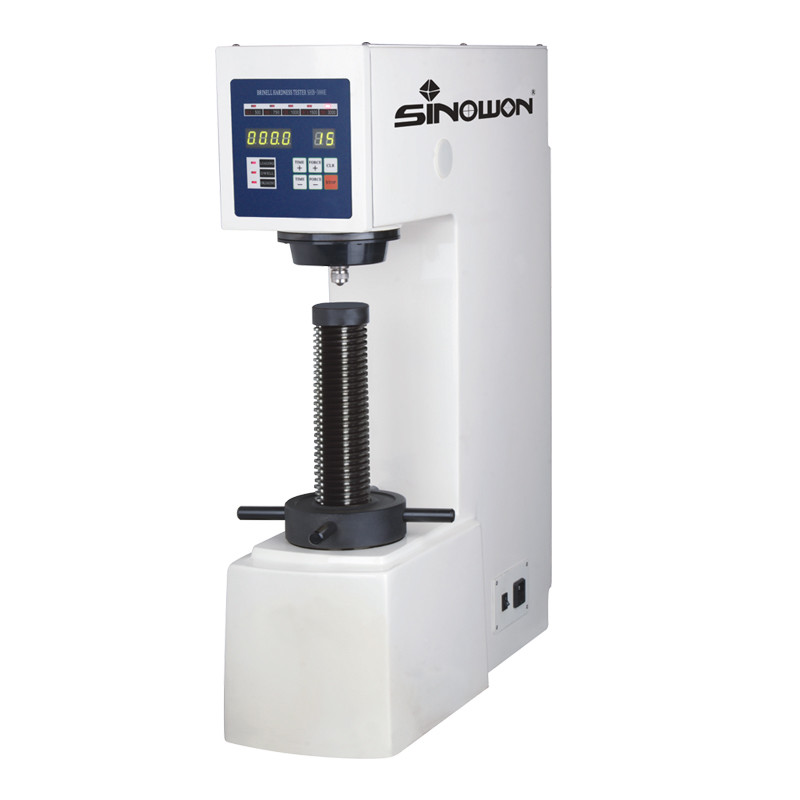

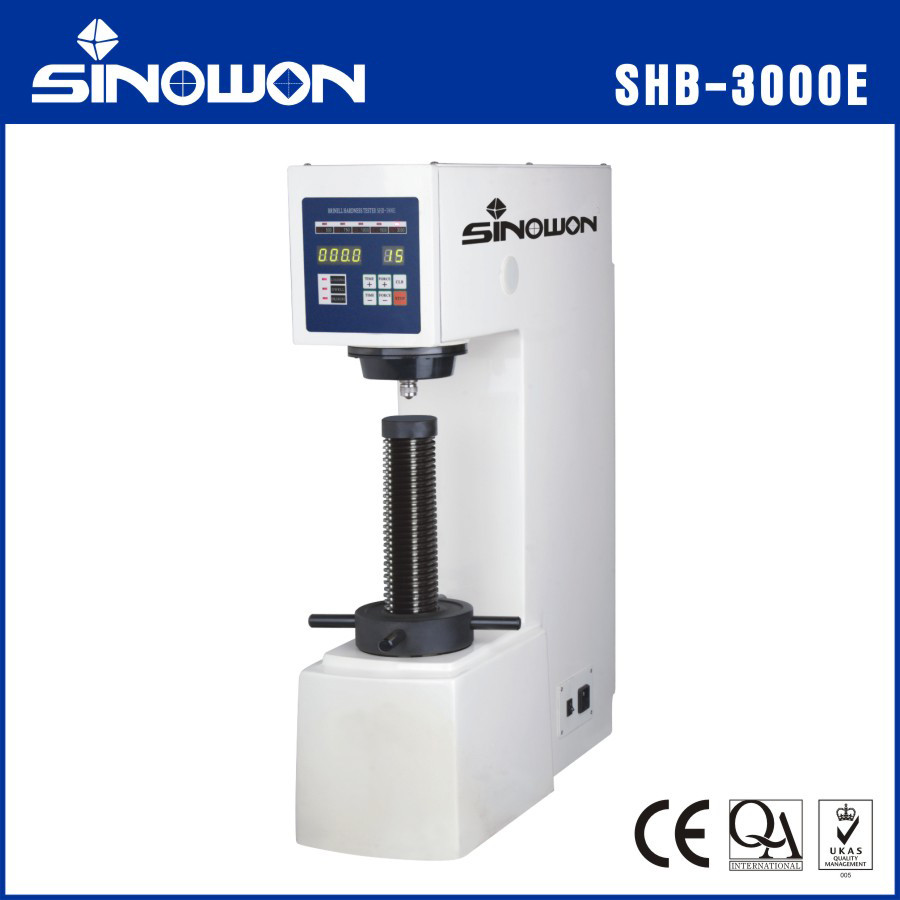

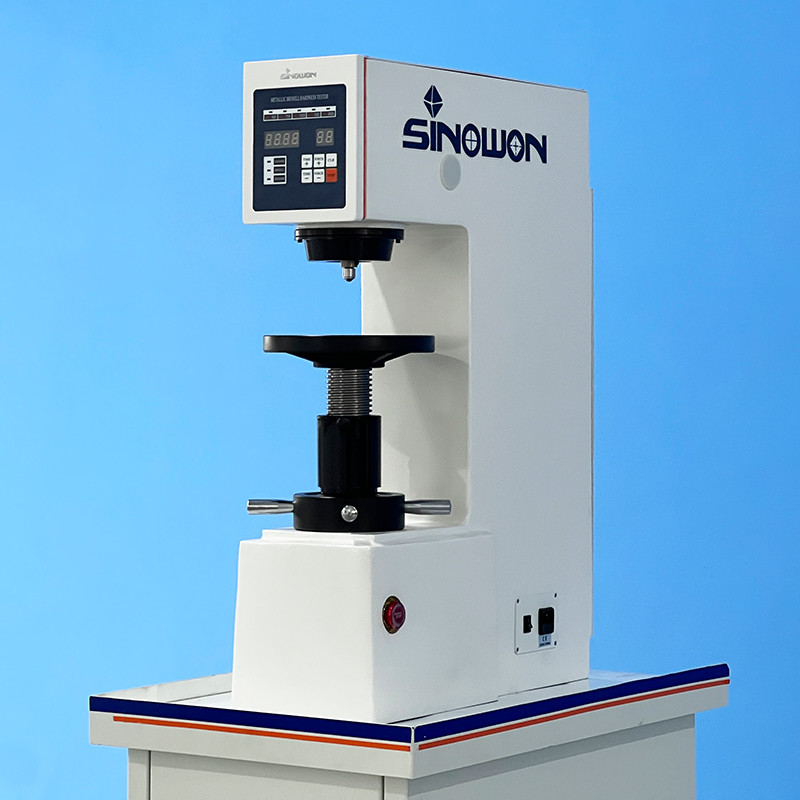

Electronic Brinell Hardness Tester SHB-3000E

Portable Electronic Hardness Tester Brinell For Hardness Measurement SHB-3000E 0

Characteristic:

● SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

● SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

● SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.

Application:

It is not only suitable for hardness measurement of cast iron, steel, non-ferrous metal and soft alloy, but also can be used to determine the hardness of some non-metallic materials such as hard plastics and bakelite.

Specifications:

Commodity	Electronic Brinell Hardness Tester
Model	SHB-3000E
Code#	831-111
Testing Force	62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf
	612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N
Testing Range	(8~650) HBW
Hardness Display	Check the Table of Brinell Hardness Scale
Magnification of Microscope	Analogue 20x Microscope
Max. Height Of Specimen	225mm
Instrument Throat	135mm
Power Supply	AC220V/50Hz;110V/60Hz
Dimension(LxWxH)	893720747mm
Gross/Net Weight	160Kg/130Kg
Execution Standard	ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Accuracy of Brinell Hardness Testing
Hardness Range	Max. Tolerance	Repetition
HBW≤ 125	≤± 3.5％	≤ 3.5％
125＜HBW≤225	≤± 2.5％	≤ 3.0％
HBW＞ 225	≤± 2.0％	≤ 2.5％

Portable Electronic Hardness Tester Brinell For Hardness Measurement SHB-3000E 1
