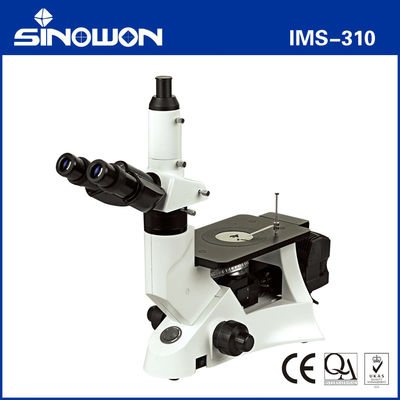

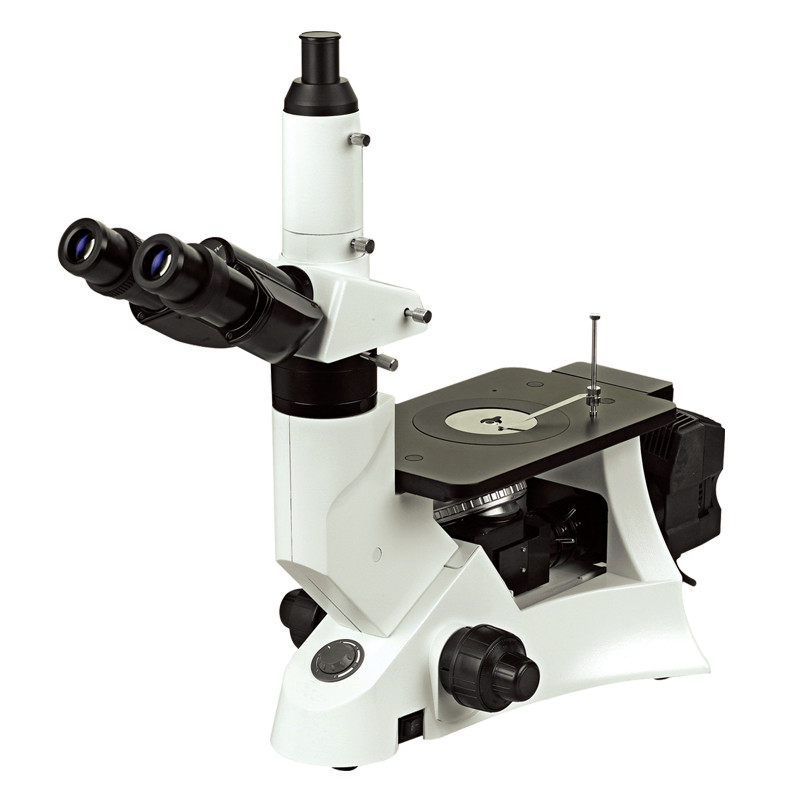

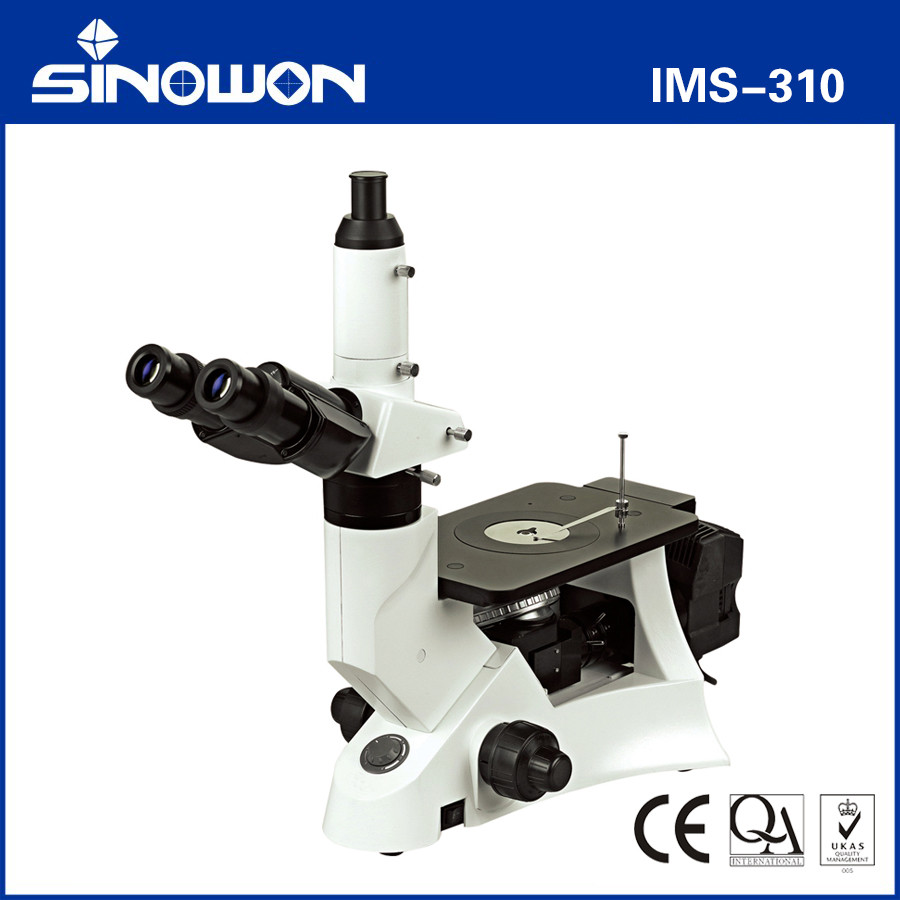

Name: Quintuple Nosepiece Inverted Metallurgical Microscope IMS-310 Infinitive Optical System
Brand: Hoyamo and Sinowon Inc
SKU: IMS-310
Availability: InStock

Quintuple Nosepiece Inverted Metallurgical Microscope IMS-310 Infinitive Optical System

1 Sets

MOQ

Can be discussed

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 431-144

Eyepiece: High-point , Extra Wide Field Eyepiece EW10×/ 20

Viewing Head: Inclined 30°, Interpupillary Distance 48-75mm

Nosepiece: Quintuple Nosepiece

Color Filter: Yellow, Blue , Green Color Filter, Ground Glass

Highlight:

Inverted Metallurgical Microscope

Quintuple Nosepiece Metallurgical Microscope

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: IMS-310

Document: D4 Sinowon IMS-310 Inverted...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Quintuple Nosepiece Inverted Metallurgical Microscope IMS-310 Infinitive Optical System

Product Description

Inverted Metallurgical Microscope IMS-310

Quintuple Nosepiece Inverted Metallurgical Microscope IMS-310 Infinitive Optical System 0

Product Introduction:

IMS-310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.

Specifications:

Commodity	Inverted Metallurgical Microscope IMS-310 (#431-144)	Code#
Eyepiece	High-point , extra wide field eyepiece EW10×/ 20	431@514
Objectives	Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6	431-614 431-634 431@644 432-654
Viewing Head	Inclined 30°, interpupillary distance 48-75mm	431-504
Focusing	Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation	431-704
Mechanical Stage	Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm Moving range 120X78mm,loading plate 128X86mm	431-404
Nosepiece	Quintuple Nosepiece	431-604
Illuminator	6V/30W Halogen Lamp,Adjustable	431-802
Color Filter	Yellow, Blue , Green Color Filter, Ground Glass	431-303
Power Supply	AC220V/50Hz;110V/60Hz	431-812
