Name: Inverted Optical Metallurgical Microscope 30mmx30mm Movement Range CE Certified
Brand: Hoyamo and Sinowon Inc
SKU: IMS-320
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 431-153

Overall Dimension: 242mmX200mm

Movement Range: 30mmX30mm

Eyepiece: High-point , Extra Wide Field Eyepiece WF10X/Ø20mm

Viewing Head: Inclined 30°, Interpupillary Distance 53-75mm

Nosepiece: Quintuple Nosepiece

Color Filter: Yellow, Blue, Green Color Filter, Ground Glass

Highlight:

Optical Metallurgical Microscope

Metallurgical Microscope 30mmx30mm

Inverted Optical Microscope CE

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: IMS-320

Document: D4 Sinowon IMS-310 Inverted...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

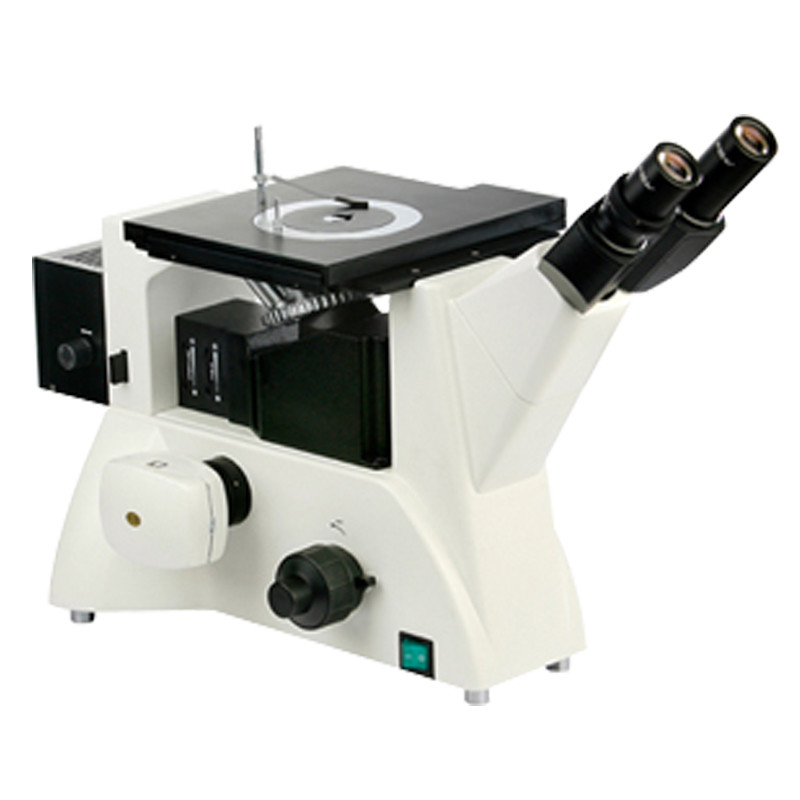

Inverted Optical Metallurgical Microscope 30mmx30mm Movement Range CE Certified

Product Description

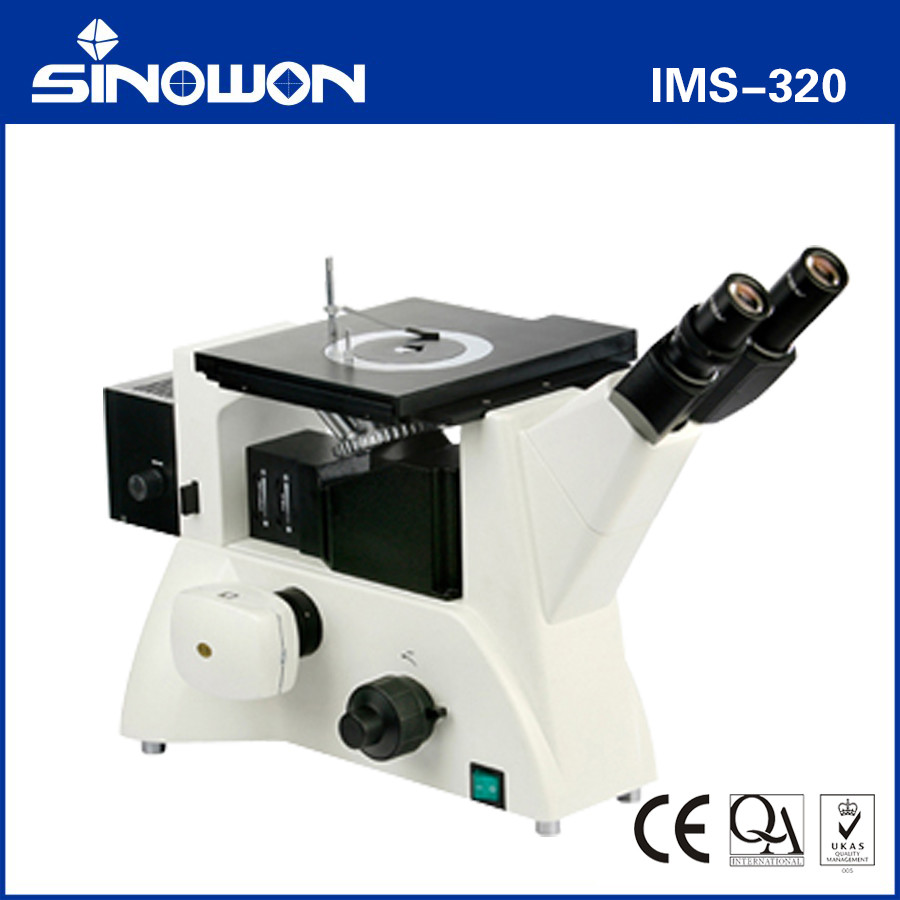

Inverted Metallurgical Microscope IMS-320

Inverted Optical Metallurgical Microscope 30mmx30mm Movement Range CE Certified 0

Product Introduction:

IMS-320 inverted gold phase microscopy adopts excellent infinite optical system and modular functional design concept, which can easily upgrade the system and realize the functions of polarlight observation, dark field observation and so on. The compact and stable high rigid main body fully embodies the vibration prevention requirements of the microscope operation. The ideal design that meets the ergonomic requirements makes the operation more convenient and comfortable and has a wider space. It is suitable for microobservation of metalstructure and surface morphology and is an ideal instrument for metalology, mineralalogy and precision engineering research.

Specifications:

Commodity	Inverted Metallurgical Microscope	Code#
Model	IMS-320	431-153
Mechanical Stage	Size of circular rotating carrier plate: maximum outer diameter Ф130mm, Minimum pass-light aperture is less than Ф12mm.	431-413
Mechanical Stage	Overall dimension: 242mmX200mm; movement range: 30mmX30mm	431-413
Eyepiece	High-point , extra wide field eyepiece WF10X/Ø20mm	431-533
Objectives	Inifitive Plan achromatic objective 5X/0.12 BD	431*613
	Working distance:9.70mm	431*613
	Inifitive Plan achromatic objective 10X/0.25 BD	431*623
	Working distance:9.30mm	431*623
	Inifitive Plan achromatic objective 20X/0.40BD	431*633
	Working distance:7.23mm	431*633
	Inifitive Plan achromatic objective 50X0.70 BD	431*653
	Working distance:2.50mm	431*653
Viewing Head	Inclined 30°, interpupillary distance 53-75mm	431-503
Nosepiece	Quintuple Nosepiece	431-603
Focusing	Coarse micro coaxial focus with locking device, microlattice value: 2 μm	431-703
Power Supply	AC220V/50Hz;110V/60Hz	431-813
Illuminator	12V/50W Halogen Lamp,Adjustable	431-833
Color Filter	Yellow, Blue , Green Color Filter, Ground Glass	431-303
