Features

Specifications

Code#: 411-222

Objective: 0.7x~4.5x Zoom Objective, Zoom Ration 6.4x

Eyepiece: WF10X/20mm

Magnification: 7x~45x,it Can Extend To 3.5x~180x

Zoom Driver: Horizontal Axial Driver Control Knobs

Working Distance: 100mm(effective Distance),it Can Extend To 30mm~165mm

Highlight:

High Precision Turret Stereo Microscopes

Turret Binocular Zoom Microscope

Binocular Zoom Stereo Microscope

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: A5

Document: D4 Sinowon A5 series Zoom S...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

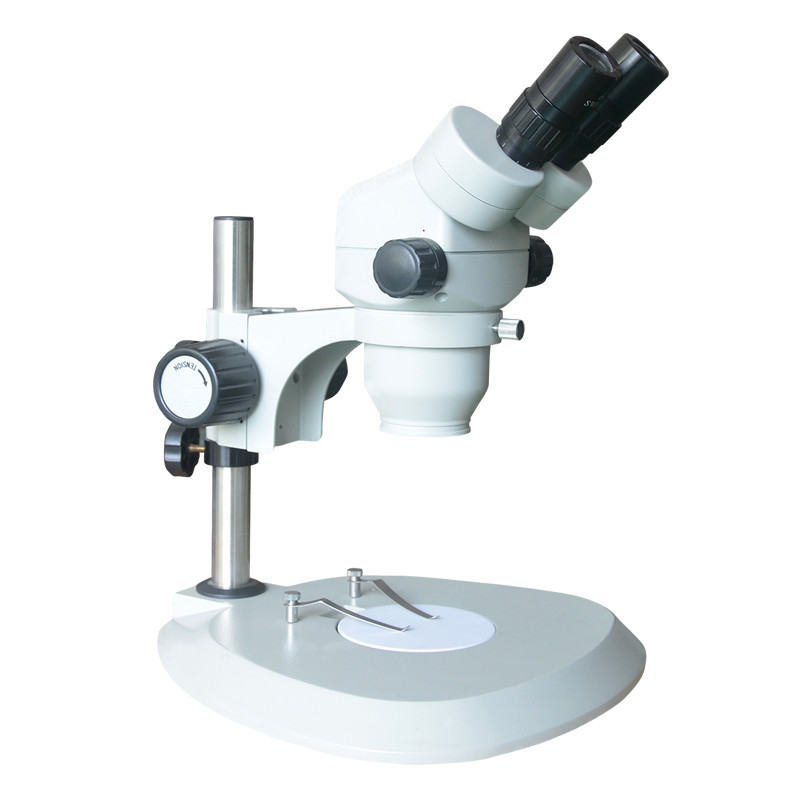

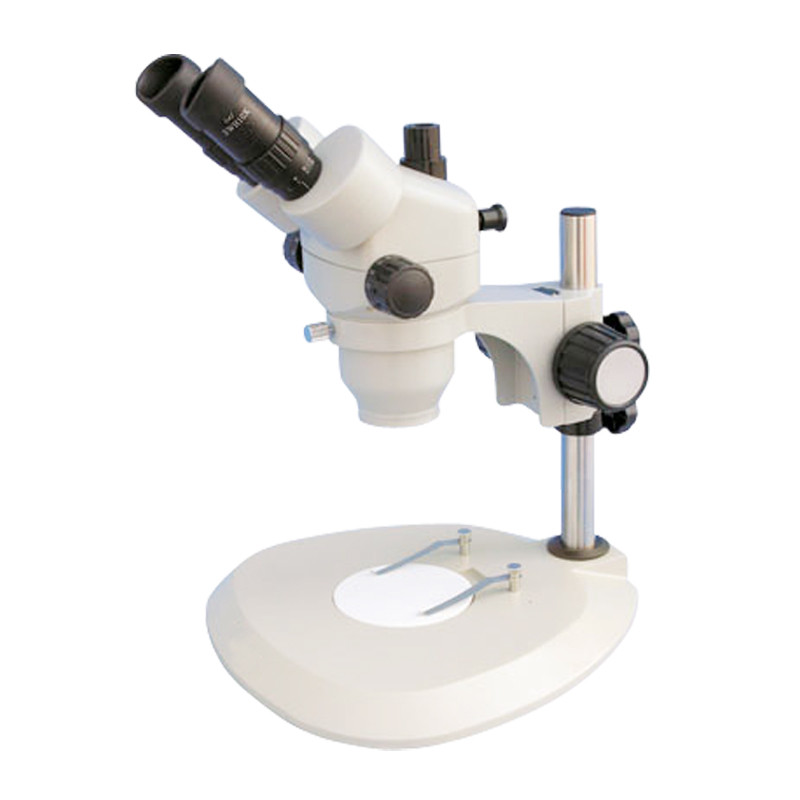

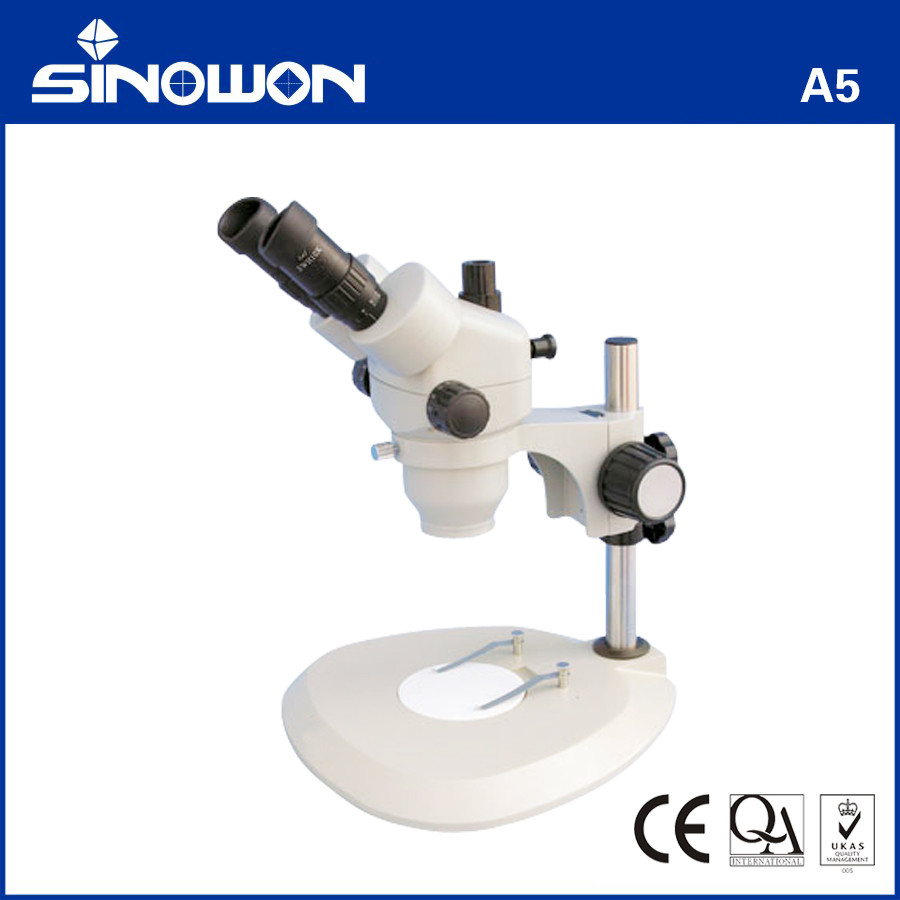

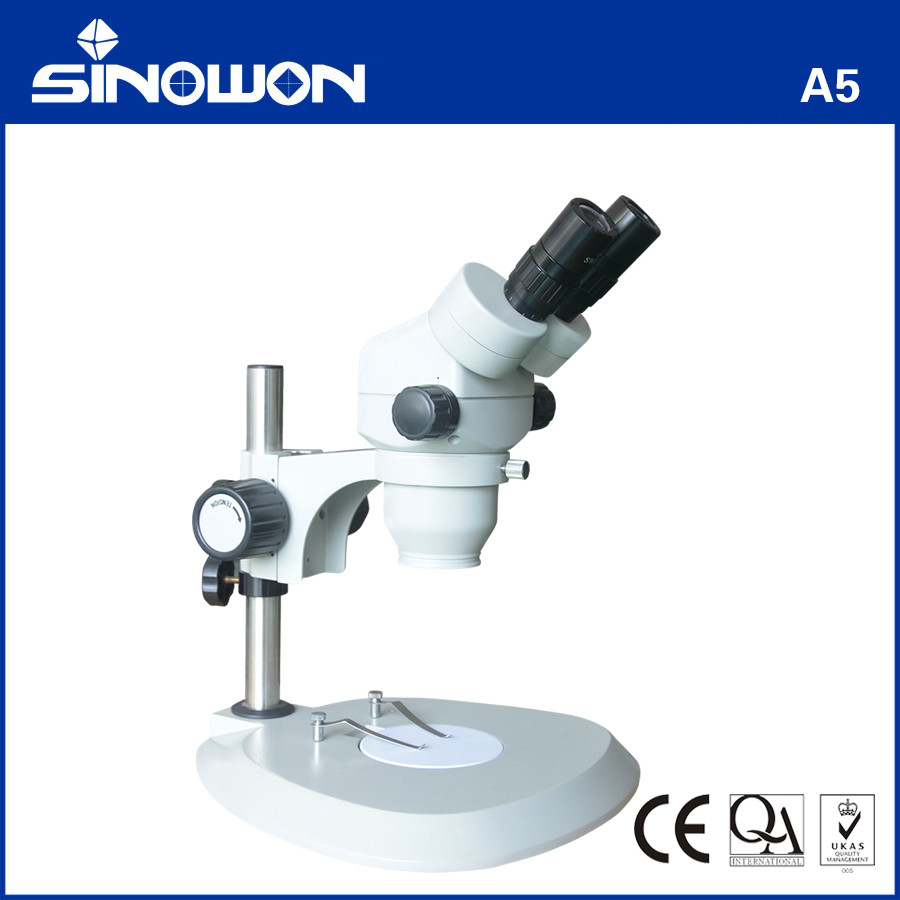

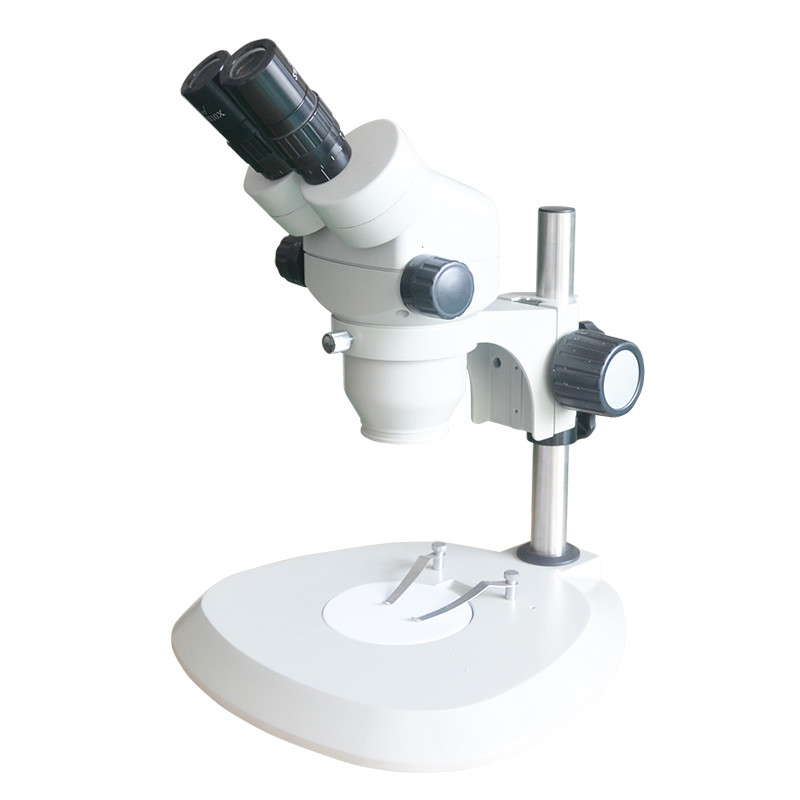

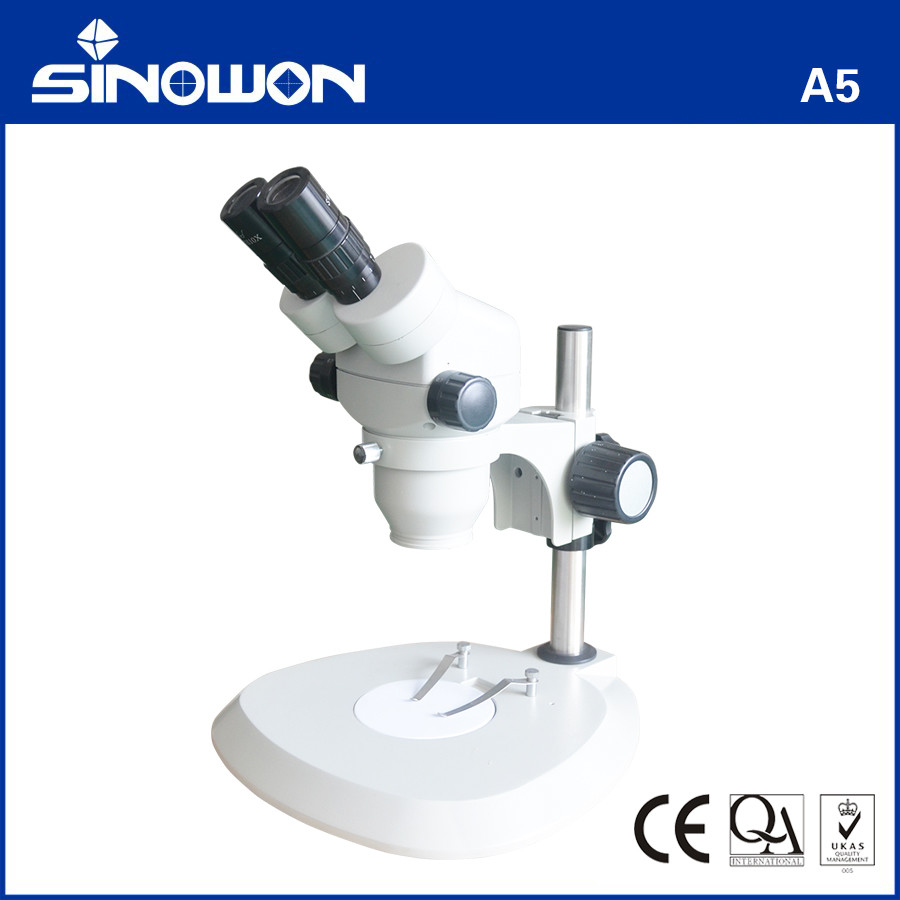

high precision Turret Stereo Microscopes Binocular Zoom Stereo Microscope A5 Series

Product Description

Zoom Stereo Microscope A5 Series

Features:

l With Zoom A5(binocular) and Zoom A5T(trinocular);

l Brand-new optical design, the best reproduction and true color image;

l Kinds of stands and attachments are available;

l Applied to modern biology research, semiconductor and the other science and technology industry ﬁeld to meet high precision requirement.

Technical Specifications:

Model	Binocular Zoom A5	Trioncular Zoom A5T
Code#	411-222	411-232
Objective	0.7x~4.5x Zoom Objective, Zoom Ration 6.4x
Eyepiece	High eye-point and wide-field eyepiece WF10X/20mm
	Optional WF15X/15mm,WF20X/10mm and object micrometer is available
Magnification	7x~45x,it can extend to 3.5x~180x
Zoom Driver	Horizontal Axial Driver Control Knobs
Working Distance	100mm(effective distance),it can extend to 30mm~165mm
Microscope Head	Binocular Observe Head with 45°incline and 360°rotatable	Trinocular Observe Head with 45°incline and 360°rotatable
	Interpupillary distance adjustment range 54~76mm with bilateral ±6 diopter
Microscope Holder	Focus adjustment range 50mm,focusing knobs elasticity adjustable Drawtube diameter 76mm
Microscope Stand	Pillar diameter 32mm and high 240mm Black & white working board diameter 95mm
Auxiliary Objective	0.5X/165mm,1.5X/45mm and 2X/30mm optional

Optical Specification:

Eyepiece	Main Body	Auxiliary Objective
	Main Body	0.5x	1x	1.5X	2X
	0.7x~4.5x	(#416-312)	(#416-322)	(#416-332)	(#416-342)
10X	Total Magnification	3.5x~22.5x	7x~45x	10.5x~67.5x	14x~90x
10X	Field of view	57.1~8.9mm	28.6~4.4mm	19~3mm	14.3~2.2mm
15X	Total Magnification	5.25x~33.75x	10.5x~67.5x	15.75x~101.25x	21x~135x
15X	Field of view	43.8~ 6.7mm	21.1~3.3mm	14.3~2.2mm	10.7~1.7mm
20X	Total Magnification	7x~45x	14x~90x	21x~135x	28x~180x
20X	Field of view	28.6~ 4.4mm	14.3~2.2mm	9.5~1.5mm	7.1~1.1mm
Working Distance(mm)		165	100	45	30
