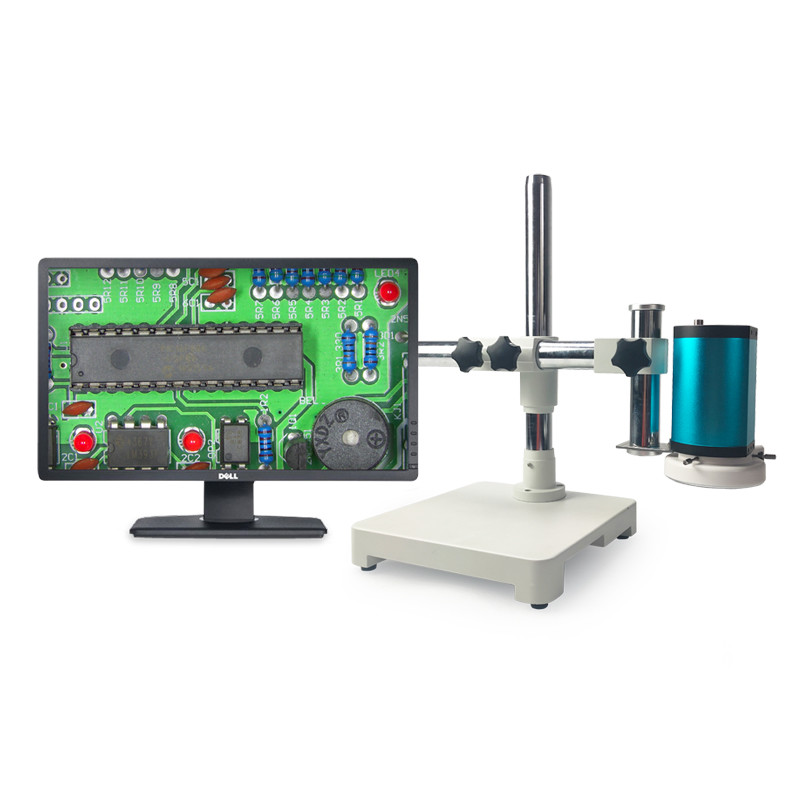

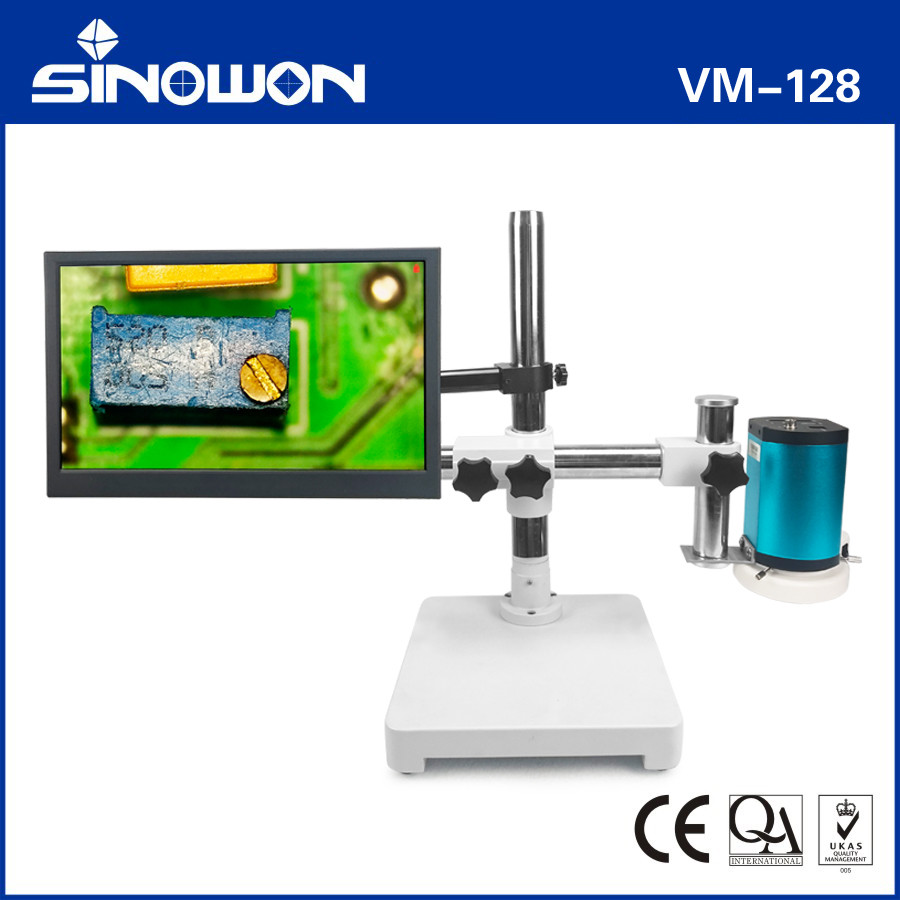

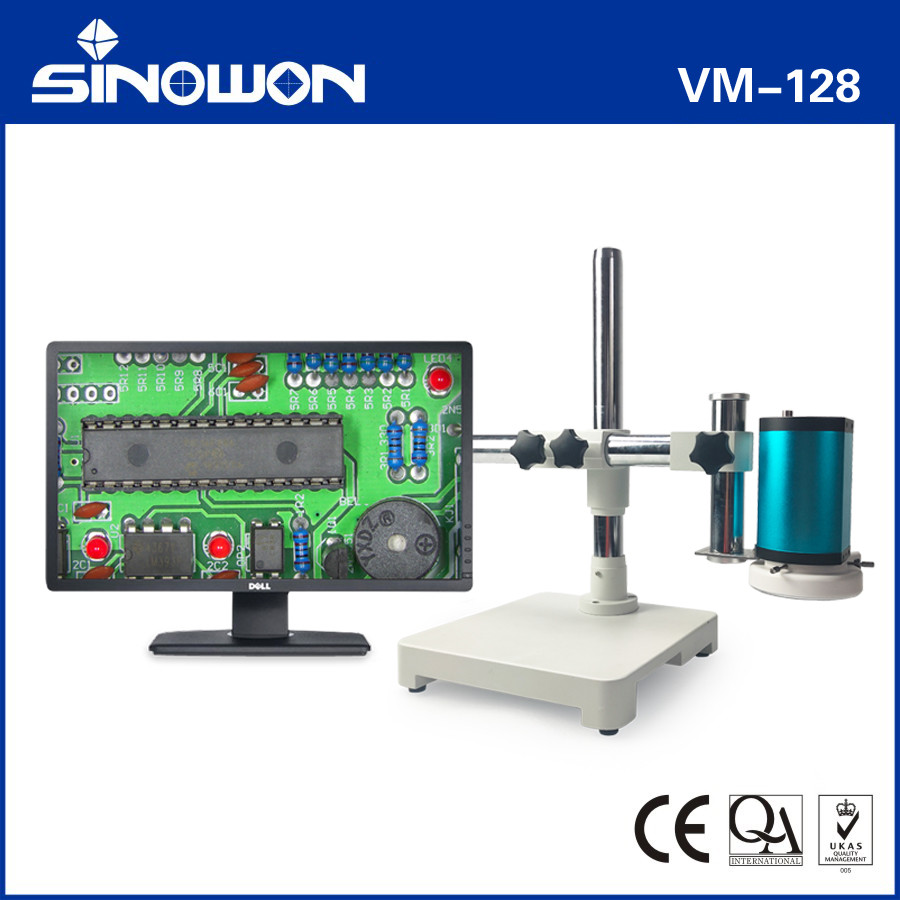

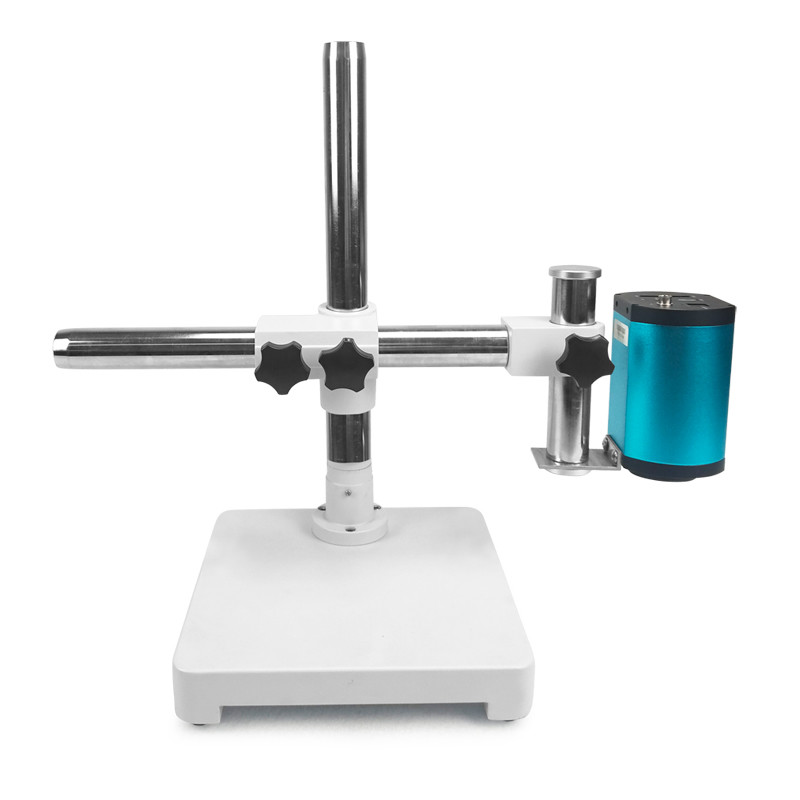

Universal Autofocus Video Microscope VM-128
Product Characteristics:
● The integrated design of autofocus and zoom, eliminating the need for time-consuming and laborious frequent focus adjustments；
● High working distance, large field of view, up to 28x zoom ratio；
● Equipped with a high-definition HDMI camera, directly connected to the monitor for taking pictures or videos；
● Cast iron base, rust and wear resistant metal column, aluminum alloy crossbar with rack and pinion telescopic adjustment；
● With universal support, expand the operating range, can be any direction to observe objects, three-dimensional sense of strong；
● 4K HD image quality with true color reproduction；
● USB output video resolution, supporting up to YUV 4K@20fps；
● Rich output interfaces and control interfaces, supporting multiple control interfaces such as mouse and keyboard；
● Equipped with adjustable dual fiber optic light source, independent control of light brightness;
● Optical magnification 1x~28x, digital magnification 1x~3x, support digital magnification.
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection and analysis, printing, textile inspection, biological autopsy, medical testing and other fields.

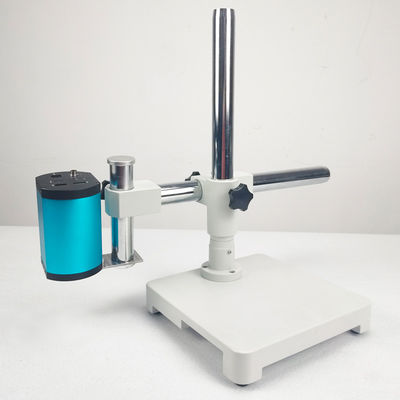

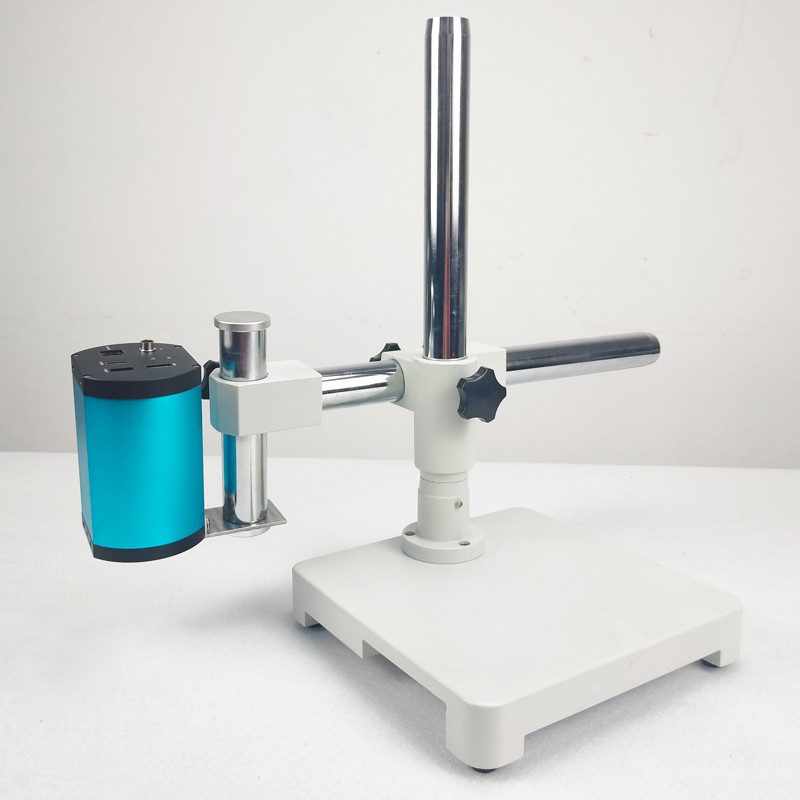

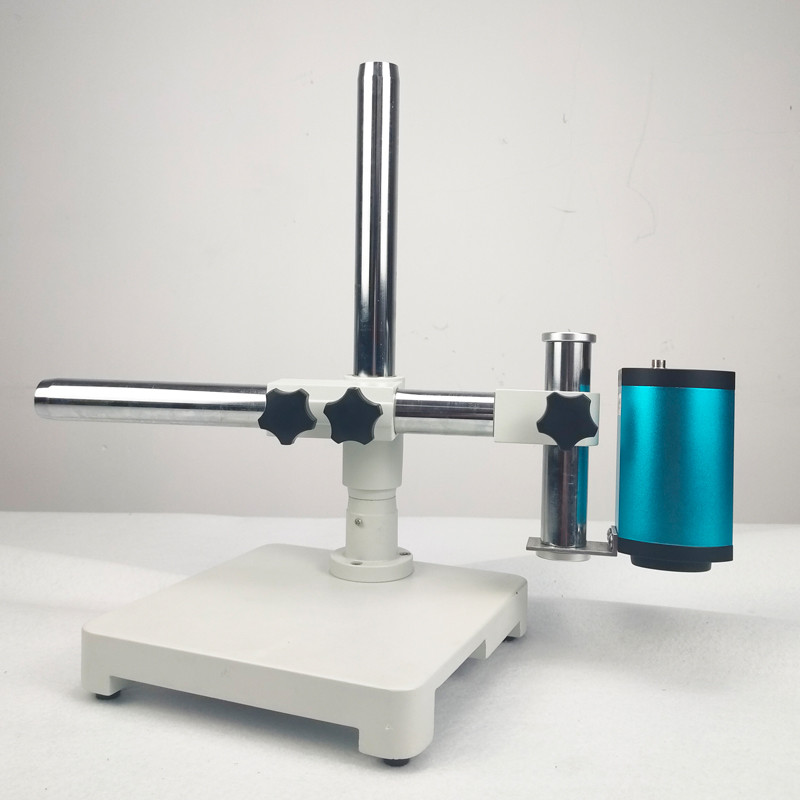

Universal bracket for viewing in any direction:

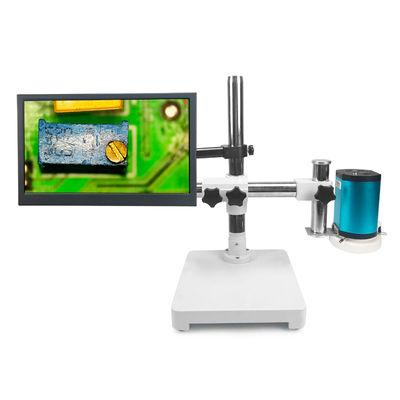

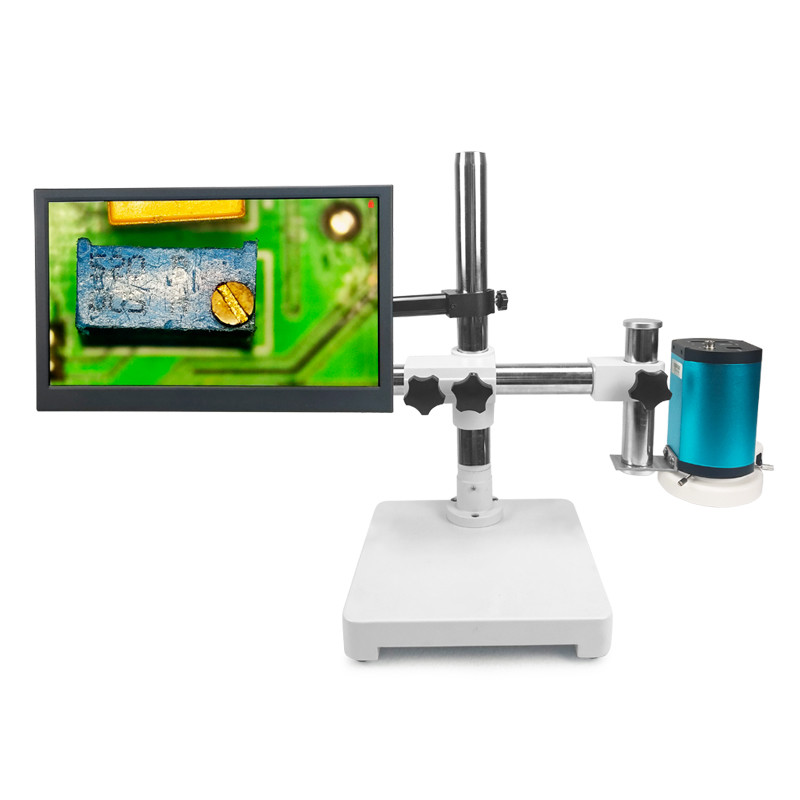

Imaging Effect:
Technical Specification:
| Commodity |
Universal Video Microscope |
| Model |
VM-128 |
| Article Code # |
451-128 |
| Digital Magnification |
1x~3x |
| Optical Magnification |
1x~28x |
| Camera Parameter |
Sensor Type |
Color CMOS |
| Effective Pixel |
8 Million Pixel |
| Target Surface Size |
1/2.8〞 |
| Menu |
Full Digital UI Design |
| Display Frame Rate |
4K@20fps/1080P@50fps |
| Scanning Method |
Line by Line Scanning |
| White Balance |
Manual / Automatic |
| Exposure Method |
Manual / Automatic |
| Electronic Shutter Speed |
1/50s(1/60s)～1/10000s |
| Working Distance |
10cm～∞ |
| Menu |
Full Digital UI Design |
| Storage Method |
PC-USB |
| Working Power |
DC12V |
| Output Method |
USB/ Web Port /HDMI |
| Vertical Column Height |
380mm |
| Diameter |
φ32mm |
| Horizontal Movement |
235mm |
| Base |
230*230*40mm |
| Dimension |
230*500*520mm |
| Application Industry |
SMT, PCB, BGA etc. |
Working distance to Zoom Ratio:
| Magnification (zoom ratio) |
FOV(100mm Working Distance) |
FOV(300mm Working Distance) |
| 1X |
165mm*89mm |
441mm*240mm |
| 2X |
97mm*54mm |
227mm*128mm |
| 3X |
72mm*40mm |
161mm*91mm |
| 4X |
60mm*34mm |
126mm*71mm |
| 5X |
53mm*29mm |
106mm*60mm |
| 14X |
23.4mm*13mm |
46.6mm*26mm |
