Home /Products/Optical Microscopes/Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera

Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera

1 Sets
MOQ
Can be discussed
Price
Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera
Features Gallery Product Description Request A Quote
Features
Specifications
Code#: 451-507
Magnification: 8X~600X ( HDMI 16:9 21.5”monitor）with Auxiliary Objective
Objective System: 0.7X~5X Zoom Lens
Camera: 2 Mega Pixel（1920*1080）
Column Height: H300mm*D30mm
Table Base Size: L320*W260*T13mm
Dimension: 450*310*525mm
Gross Weight: 12Kg (without Monitor)
Highlight:

HD Video Microscope 8X

,

Digital HD Video Microscope

,

600x Magnification Microscope
Basic Infomation
Place of Origin: Dongguan, China
Brand Name: SINOWON
Certification: CE
Model Number: VM-507
Document: D4 Sinowon VM507 Video Micr...a1.pdf
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 300 Sets/Month
Product Description

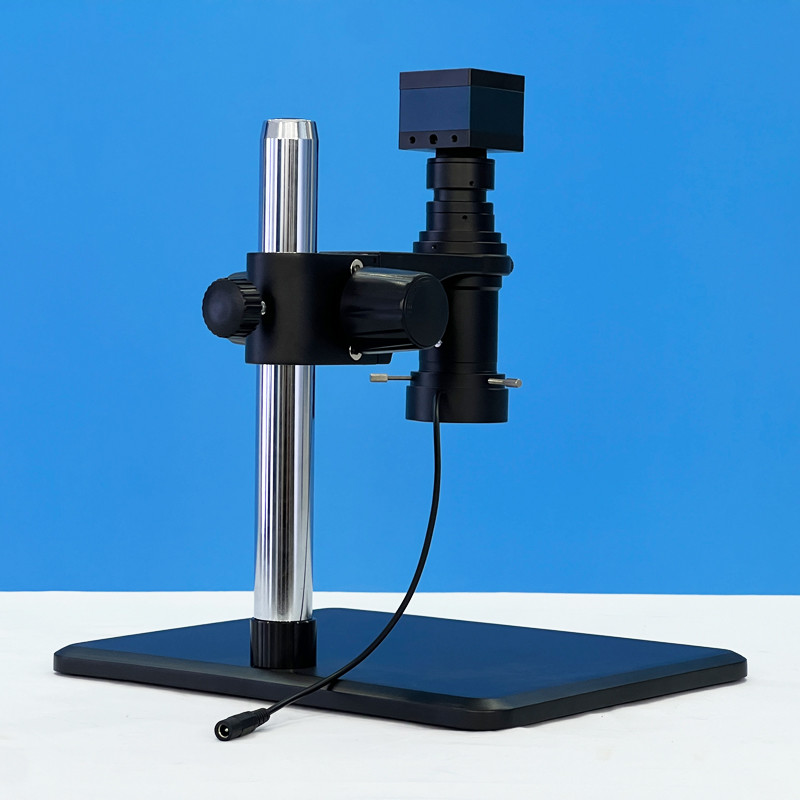

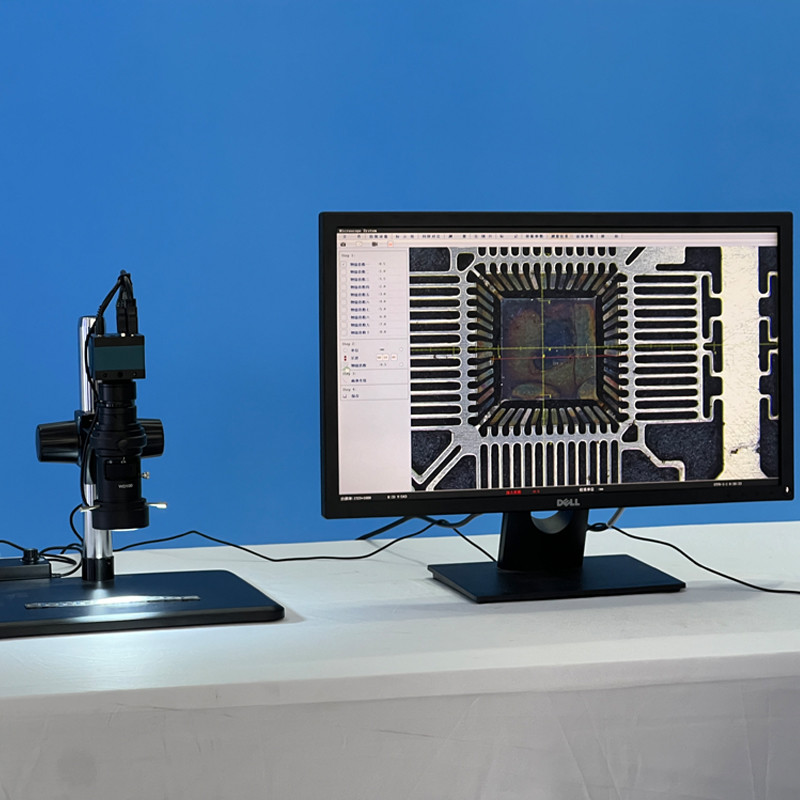

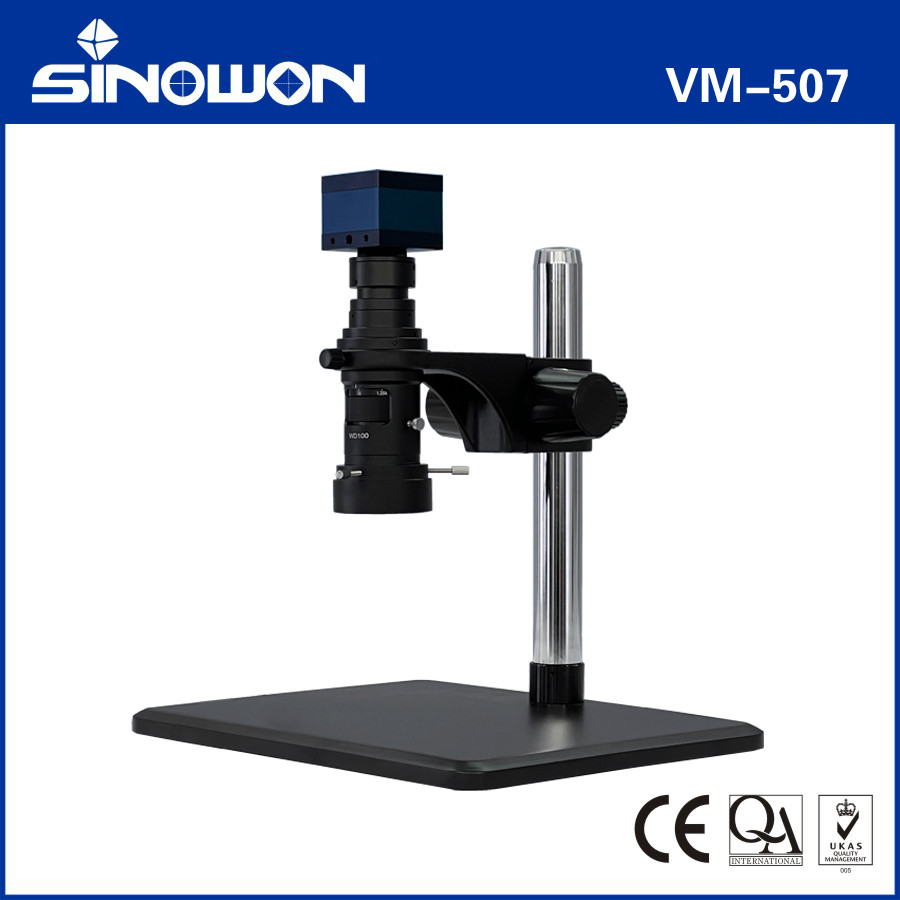

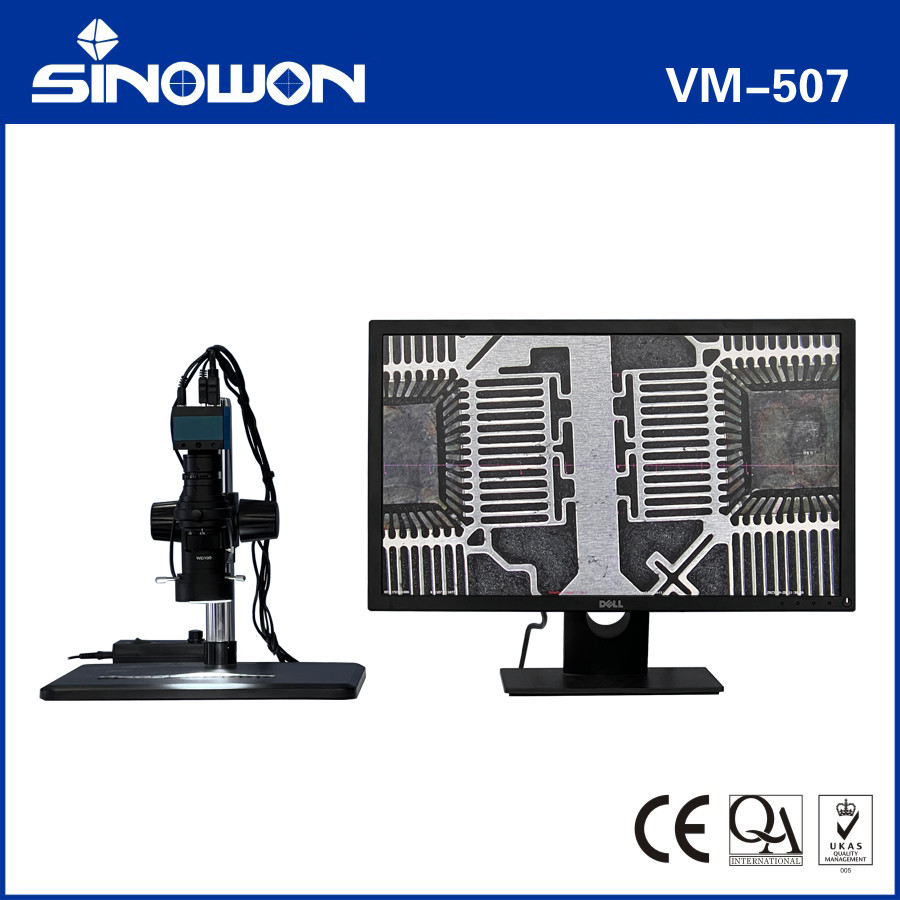

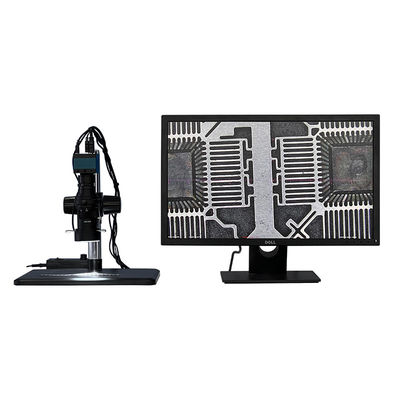

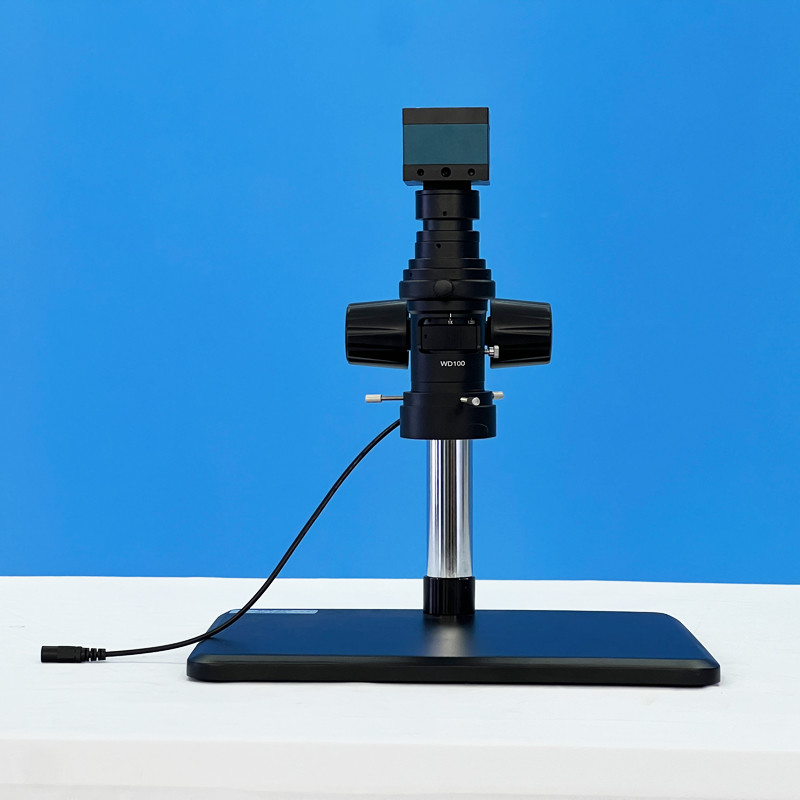

HD Video Measuring Microscope VM-507



Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera 0





Product Characteristics:



● Sample and generous design, easy to use.

● HDMI camera and clear image, by USB or SD flash memory storage pictures and video.

● 0.7~5X Horizontal continuous zoom lens, easy change the objective lens and save your time.

● LED illumination system and long life and easy change light.



Application:



Incoming inspection, production inspection, material research, PCSB and SMT inspection and analysis, printing, textile inspection and other fields.

Digital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera 1





Technical Specification:



Commodity Video Microscope
Mode VM-507
Code# 451-507
Magnification 8X~600X ( HDMI 16:9 21.5”monitor)with Auxiliary Objective
Objective system 0.7X~5X zoom lens
Zoom magnification ratio: 7:1
1X C-mount camera adapter

Digital Camera Specification

 2 Mega pixel (1920*1080)
Target size: 1/2.8”
Number of frames: 60fps
Camera function Manual focus
Photo taking and video record
HDMI/USB2.0
Crossline and Reticle
To measure the lines, circles, arcs, rectangle, and distances, angles, etc.
LED Lightsource Surface light:adjustable LED surface light
Ring fiber source (optional)
Microscope Size

Column Height: H300mm*D30mm
Table Base Size: L320*W260*T13mm
Power SupplyDigital HD Video Microscope 8X - 600X Magnification Microscope 1920x1080 Camera 2 AC90~240V；50~60HZ
Dimension 450*310*525mm
Gross Weight ≈12KG (without monitor)
