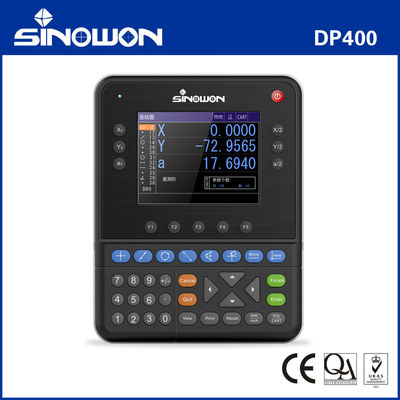

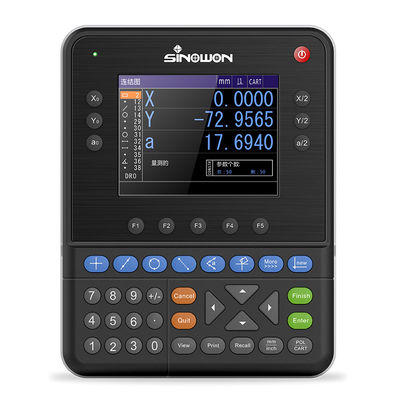

Color Screen Multifunction Digital Readout DP400
Features:
● 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
● Save 100 permanent image elements, can set and save current date;
● Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
● Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
● Section and linear compensation are available for 3-axis, highly ensure measurement accuracy;
● Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
● With polar and coordinate system, and can display millimeter and inch, and can shift easily;
● With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
● Support multiple language:Chinese, English and other language.
Specification:
| Model |
DP400 |
| Code# |
510-340 |
| Language |
Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size |
115mm×85mm |
| LCD Screen Resolution |
640*480 |
| Digital Display Range |
8Digits(With Decimal Point) |
| Display Axis |
3-axis (X,Y,Z/Q) |
| Z/Q Display Model |
Length or Angle |
| Angle Display Model |
Degree, Minutes and Second or Degree |
| Linear Scale Signal |
TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution |
0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate |
4800,9600,14400,19200,38400,57600 |
| Data Output Port |
RS232,DB-9 Parent interface |
| Operation Keyboard |
Sealed Silicone touch-type keyboard |
| Expansion port |
Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply |
AC90V-240V,15W |
| Operation Environment |
Working Temperature: 0 ℃～40 ℃；Storage Temperature:-10 ℃～60℃；Relative Humidity:<90%RH |
