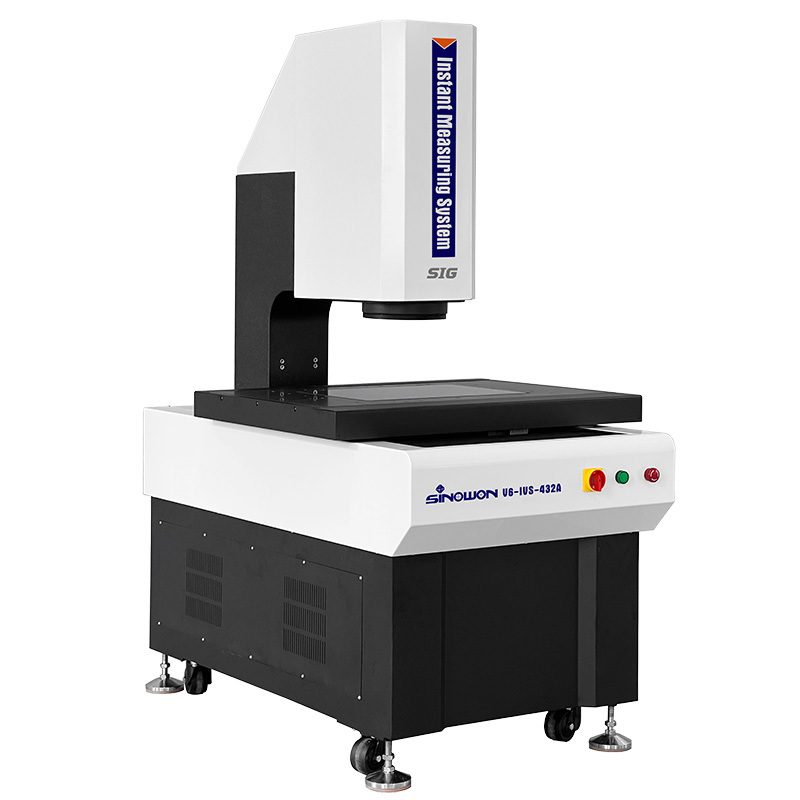

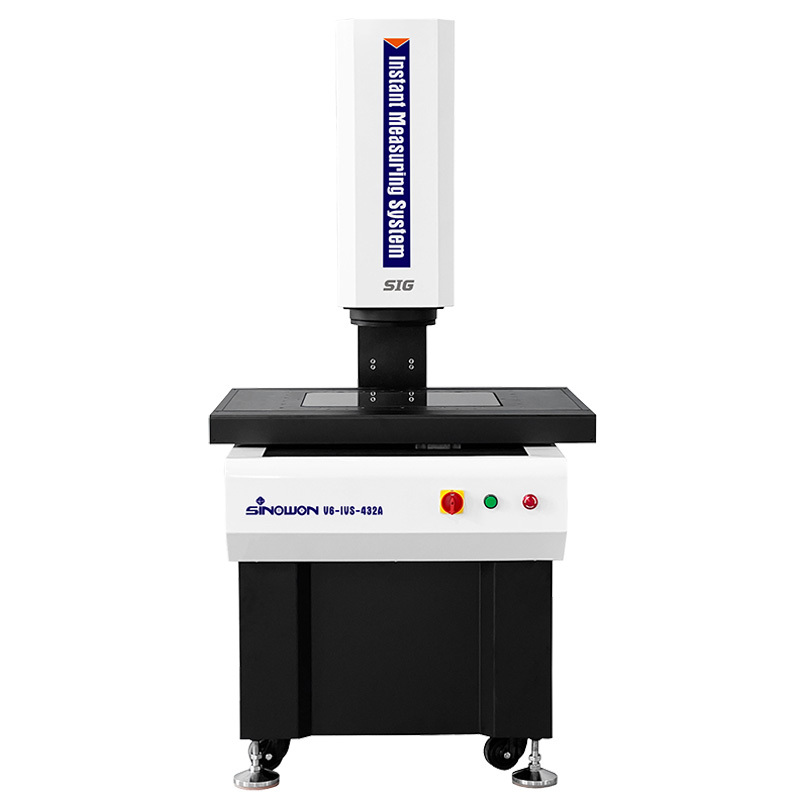

High Precision Cantilever Automatic Vision Measuring Machine V6-IVS-432 Series

High Precision Cantilever Automatic Vision Measuring Machine V6-IVS Series

V6-IVS series is cantilever fully automatic instant vision measuring machine with double-magnification lens system developed for GD&T measurement with three axis automatic motorized control. It equipped with automatic focusing, automatic lighting control, and automatic movement of hardware and software configuration to make the measurement of linear and geometrical dimensions quickly and accurately.

Product Characteristic:

• iMeasuring series automatic Vision measurement software, powerful and easy to operate.
• Equipped with a 20 million pixel camera and a dual telecentric lens with double magnification, the imaging quality is excellent;
• The high telecentricity design below 0.02° ensures measurement accuracy for products with significant height differences;
• The low TV distortion below 0.01% and the uniformity of distortion over the entire image ensure the dynamic repeatability accuracy of the measurement;
• The dual magnification design enables efficient measurement with a large field of view and high-precision measurement with high magnification, satisfying customers' dual needs for efficiency and accuracy;
• The XYZ three-axis CNC fully automatic precision control ensures accurate positioning;
• The use of an Indian marble base and column provides good stability;
• Precision linear guides, ground ball screws, AC servo motors, etc., ensure the accuracy and stability of the motion system;
• The 0.5μm high-precision linear scale ensures the positioning and measurement accuracy of the system;
• Equipped with various light sources and an intelligent lifting function to adapt to various measurement scenarios;
• The powerful and easy-to-use Geomea measurement software enhances quality control;
• Automatic measurement programs can be set up to efficiently and quickly complete batch measurements;
• Optional non-contact white light sensors can be used to measure thickness, flatness, etc.

Specifications:

Product Configuration Model Description(Example with V6-IVS-432):

Cantilever Automatic Vision Measuring Machine Models and Specifications:

Cantilever Automatic Vision Measuring Machine Travel Guide Table:

Vision Measuring Machine Structural Drawings:
