Name: IP54 Portable Industrial Endoscope Direct View / Side View / Double View Direction
Brand: Hoyamo and Sinowon Inc
SKU: VH510-39-300
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 461-236D

Direction: Direct View/Side View/Double View

View Angle(θ): 120°

DOF: 8mm~150mm

Pixel: 1MP

Probe Diameter(D): 3.9mm

Probe Articulating: 360° Full Direction Articulation

Inserting Tube Length: 3m

Packing Weight: 3.9Kg

Packing Case: 479*387*155mm

Bending Angle(ɑ): 130°±10°

Highlight:

IP54 Portable Industrial Endoscope

Double View Portable Industrial Endoscope

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: VH510-39-300

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 30 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

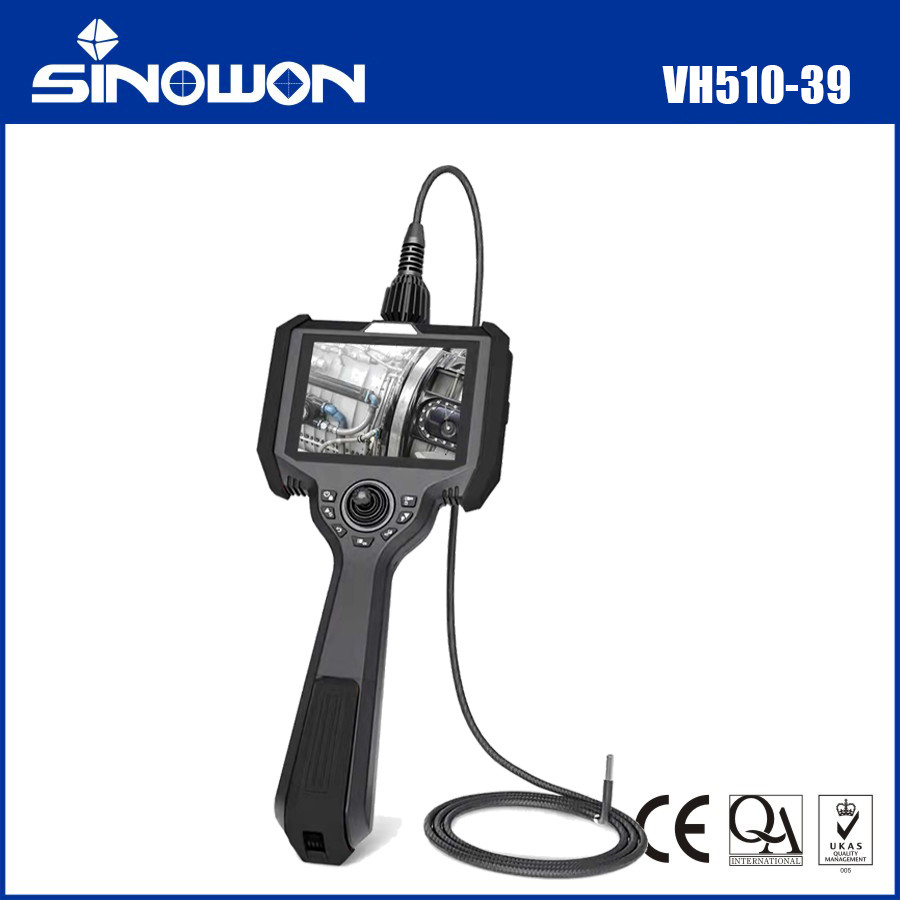

IP54 Portable Industrial Endoscope Direct View / Side View / Double View Direction

Product Description

Portable Industrial Endoscope VH510-39 Series

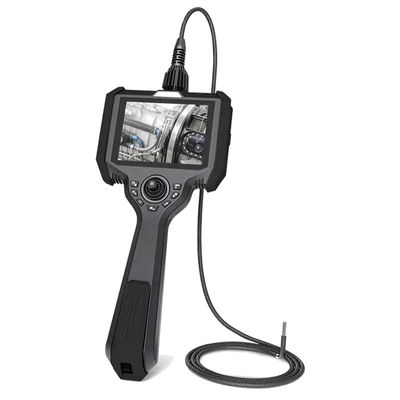

IP54 Portable Industrial Endoscope Direct View / Side View / Double View Direction 0

Product Introduction:

VH510-39 series is equipped with a number of detection functions, with advanced technology , and comprehensive functions , which assists the inspectors to complete the inspection work efficiently.
IP54 Portable Industrial Endoscope Direct View / Side View / Double View Direction 1

Specifications:

Commodity			Portable Industrial Endoscope VH510-39 Series
Model			VH510-39-100	VH510-39-200	VH510-39-300	VH510-39-400	VH510-39-500	VH510-39-600
Code#			461-216D	461-226D	461-236D	461-246D	461-256D	461-266D
Lens	Direction		Direct view/Side view/Double view
	View angle		120°
	DOF		8mm~150mm
	Pixel		1MP
	Illuminating system		Rear high-power LED fiber optic transmission
Probe	Length(L)		Direct view/Side view:12±0.5mm
			Double view:19±0.5mm
	Diameter(D)		3.9mm
	Articulating		360° full direction articulation
	Bending Angle(ɑ)		170°±10°	150°±10°	130°±10°	110°±10°	90°±10°	60°±10°
	Brightness of Illumination		1m	1m<L≤2m	2m<L≤4m		4m<L≤6m	＞6m
		Direct view	≥60000Lux	≥50000Lux	≥40000Lux		≥30000Lux	/
		Double view	≥40000/10000Lux	≥30000/10000Lux	≥20000/10000Lux		/	/
	IP grade		IP67
	Working temperature		-20°C~70°C
Inserting tube	Length		1m	2m	3m	4m	5m	6m
			Double view:3m
	Material		Flexible (tungsten braided tube)
Host	Dimension		35015559mm
	Display		5 inch industrial touch LCD screen
	Output port		HDMI video output,Micro USB,TF card slot
	Storage		32G
	Power		Special rechargeable lithium battery pack, online charging, battery life ≧4 hours
	IP grade		IP54
	Working temperature		-10℃～50℃
	Storage temperature		−20℃～60℃
	Relative humidity		Max 95%,No condensation
System	Operation System		Multifunctional operating system
	Operation method		Button navigation, dual camera and video buttons
	Support Function		With freeze, zoom, photo, flip, video playback, analog ruler functions
	File Format		Image:JPEG(JPG),Video:AVI
	Support Language		Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese
Packing Case	Weight		3.9Kg
	LWH		479387155mm

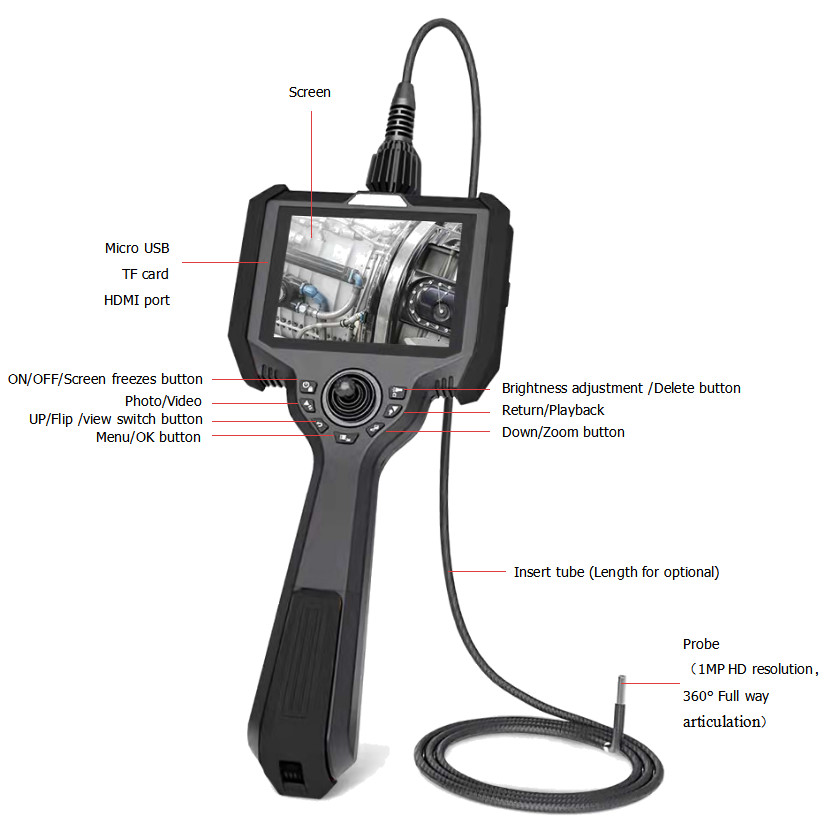

VH510-39 (Direct View):

IP54 Portable Industrial Endoscope Direct View / Side View / Double View Direction 2
