Name: Direct / Side View Portable Industrial Endoscope IP67 Handheld Digital Endoscope
Brand: Hoyamo and Sinowon Inc
SKU: VH510-80-600
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 461-466D

Direction: Direct View/Side View/Double View

View Angle(θ): 140°/120°/105°

DOF: 12-200mm/8-150mm/3-30mm/50-∞

Pixel: 1MP

Probe Diameter(D): 8mm

Probe Articulating: 360° Omnidirectional Head

Inserting Tube Length: 6m

Bending Angle(ɑ): 120°±10°

Display: 5 Inch Industrial Touch LCD Screen

Dimension: 350*155*59mm

Output Port: HDMI Video Output, Micro USB, TF Card Slot

Probe Length(L): 16.3±0.5mm

Packing Weight: 3.9Kg

Packing Case: 479*387*155mm

Brightness Of Illumination: 10000lux

IP Grade: IP67

Illumination: LED Integrated Lighting

Highlight:

Portable Industrial Endoscope IP67

Side View Portable Industrial Endoscope

IP67 Handheld Digital Endoscope

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: VH510-80-600

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 30 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Direct / Side View Portable Industrial Endoscope IP67 Handheld Digital Endoscope

Product Description

Portable Industrial Endoscope VH510-80-600

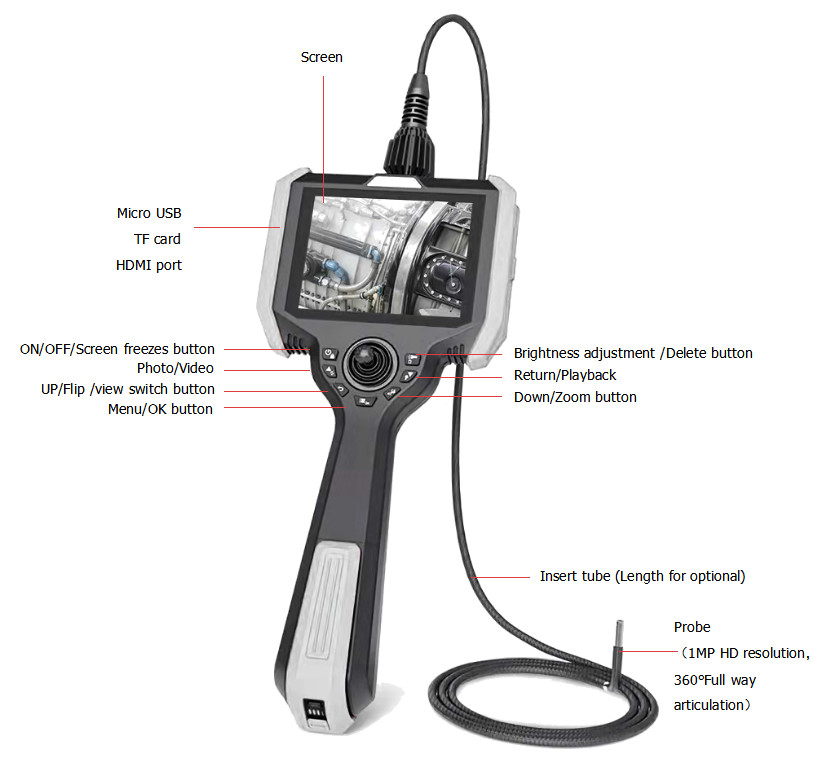

Direct / Side View Portable Industrial Endoscope IP67 Handheld Digital Endoscope 0

Product Introduction:

VH510 series is equipped with a number of inspection functions, advanced technology and comprehensive functions, which can be used in automobile inspection, pipeline inspection, electrical inspection and other fields.

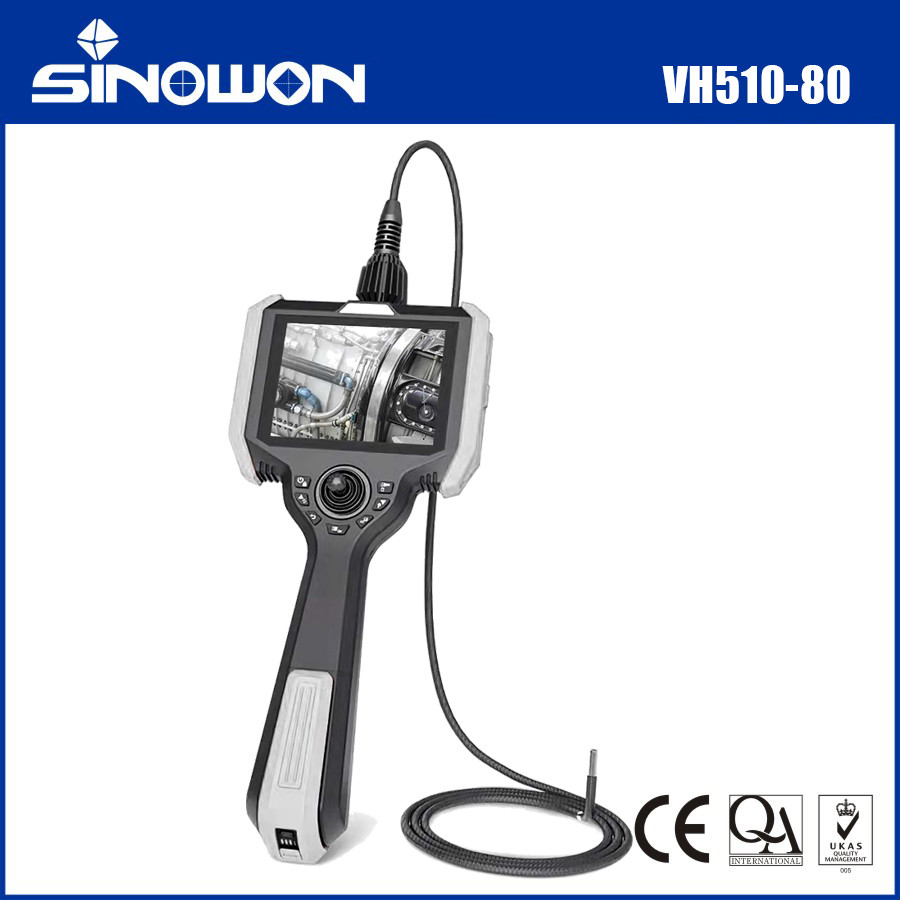

Direct / Side View Portable Industrial Endoscope IP67 Handheld Digital Endoscope 1

Specifications:

Commodity		Portable Industrial Endoscope VH510 Series
Model		VH510-80-100	VH510-80-200	VH510-80-300	VH510-80-400	VH510-80-500	VH510-80-600
Code#		461-416D	461-426D	461-436D	461-446D	461-456D	461-466D
Lens	Direction	Direct view/Side view/Double view
	FOV(θ)	140°/120°/105°
	(DOF)	12-200mm/8-150mm/3-30mm/50-∞
	Pixels	1MP
	Illumination	LED Integrated lighting
Probe	Length(L)	16.3±0.5mm
	Diameter(D)	8mm
	Articulating	360° Omnidirectional head
	Bending Angle(ɑ)	170°±10°		160°±10°	150°±10°	130°±10°	120°±10°
	Brightness of Illumination	10000lux
	IP grade
	Working temperature	-20°C~70°C
Inserting tube	Length	1m	2m	3m	4m	5m	6m
	Material	Flexible (tungsten braided tube)
Host	Dimension	35015559mm
	Display	5 inch industrial touch LCD screen
	Output port	HDMI video output, Micro USB, TF card slot
	Storage	32G
	Power	Special rechargeable lithium battery pack, online charging, battery life ≧4 hours
	IP grade	IP54
	Working temperature	-10℃～50℃
	Storage temperature	−20℃～60℃
	Relative humidity	Max 90%, No condensation
System	Operation System	Multifunctional operating system
	Operation method	Button navigation, dual camera and video buttons
	Support Function	With freeze, zoom, photo, flip, video playback, analog ruler functions
	File Format	Image:JPEG(JPG), Video:AVI
	Support Language	Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese
Packing Case	Weight	3.9Kg
	LWH	479387155mm

VH510-80 (Direct View):

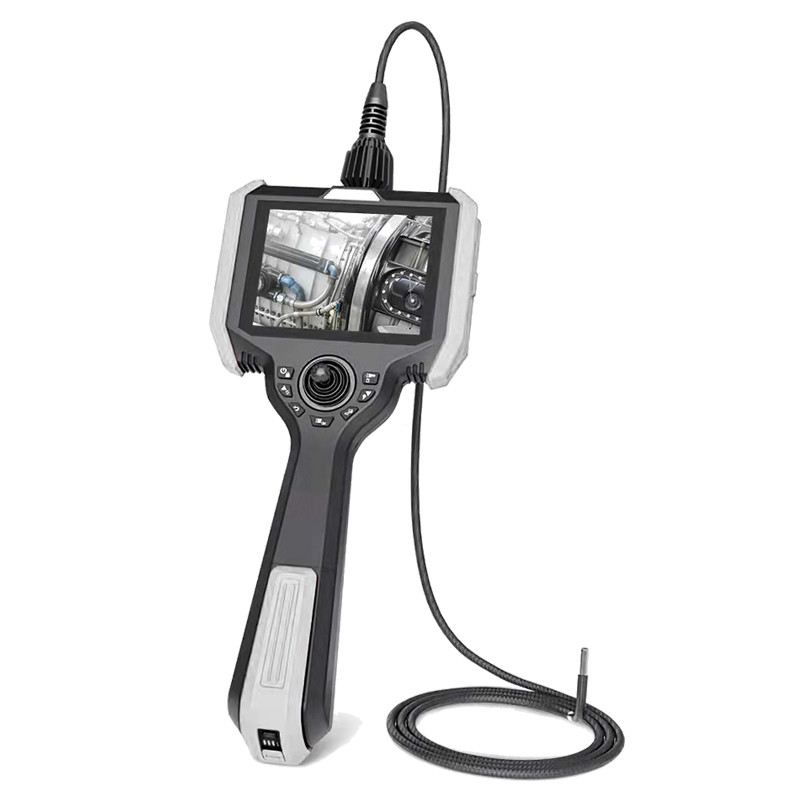

Direct / Side View Portable Industrial Endoscope IP67 Handheld Digital Endoscope 2
