Home /Products/Optical Microscopes/Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300

Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300

1 Sets
MOQ
Can be discussed
Price
Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300
Features Gallery Product Description Request A Quote
Features
Specifications
Code#: 461-156
Direction: Direct View
View Angle(θ): 120°
DOF: 3mm~70mm，5mm~100mm
Pixel: 160000
Probe Diameter(D): 2.8mm
Probe Articulating: 360° Full Direction Articulation
Inserting Tube Length: 3m
Weight: 3.9Kg
Packing Case: 479*387*155mm
Bending Angle(ɑ): 110°±10°
Probe Length(L): 4.5±0.5mm
Display: 5 Inch Industrial Touch LCD Screen
Output Port: HDMI Video Output, Micro USB, TF Card Slot
IP Grade: IP54
Highlight:

Direct View Portable Industrial Endoscope

,

Portable Industrial Endoscope IP54

,

Industrial Endoscope Camera 160000 Pixel
Basic Infomation
Place of Origin: Dongguan, China
Brand Name: SINOWON
Certification: CE
Model Number: VH510-28-300
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Month
Product Description

Portable Industrial Endoscope VH510-28-300

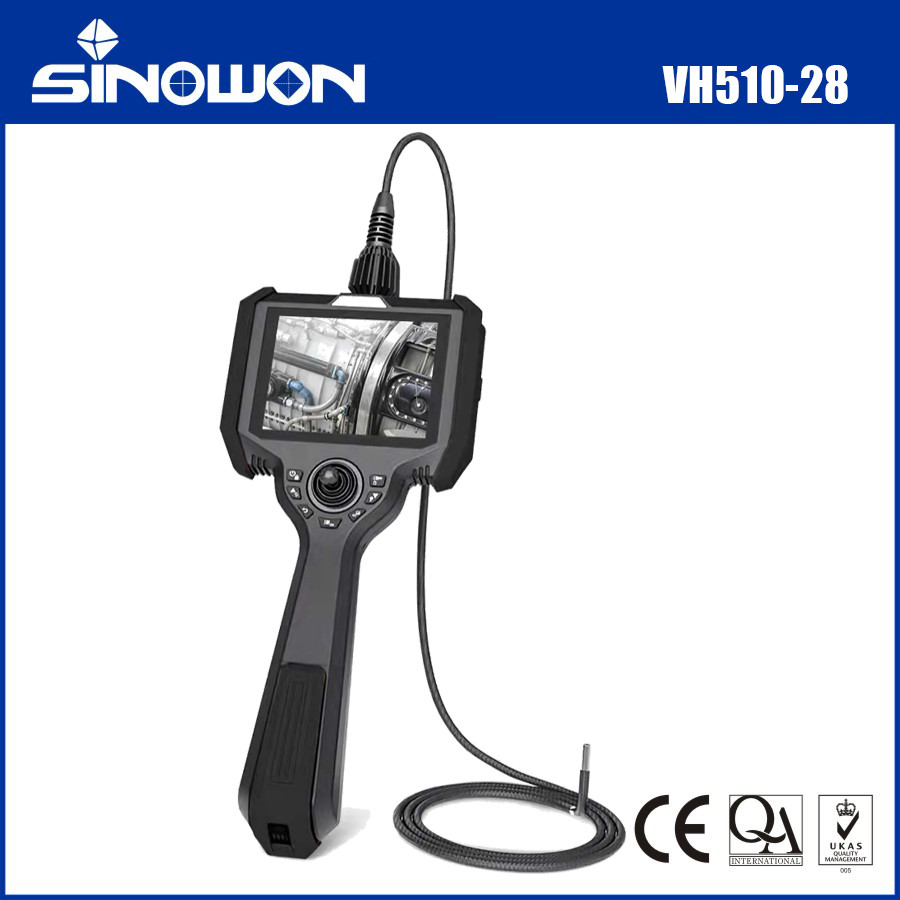

Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300 0



Product Introduction:



VH510-28 series is equipped with a number of detection functions, with advanced technology , and comprehensive functions , which assists the inspectors to complete the inspection work efficiently.

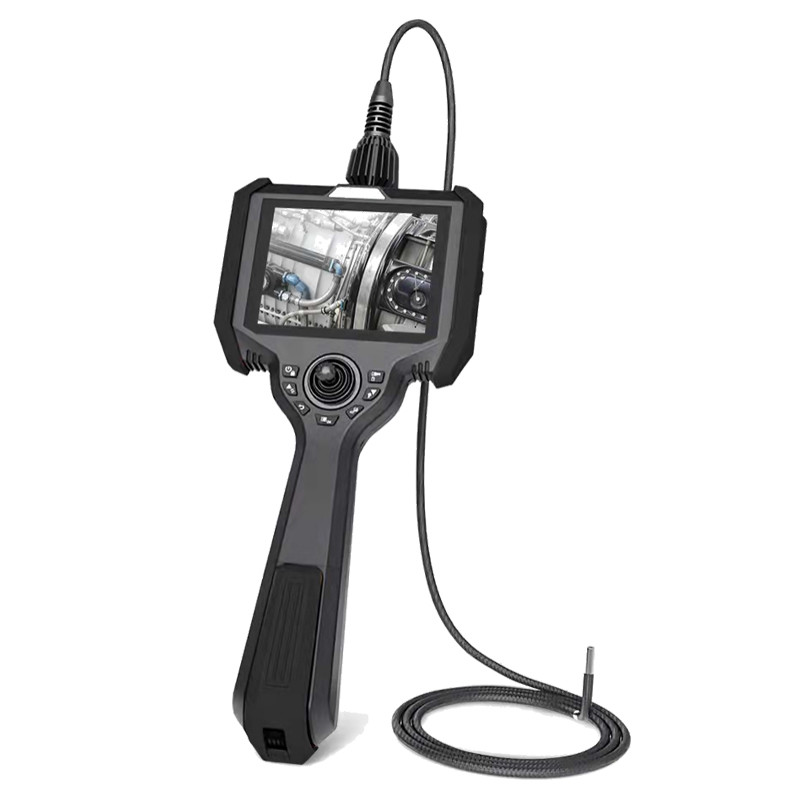

Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300 1



Specifications:



Commodity Portable Industrial Endoscope VH510-28 Series
Model VH510-28-100 VH510-28-200 VH510-28-300
Code# 461-136 461-146 461-156
Lens Direction Direct view
View angle(θ) 120°
DOF 3mm~70mm,5mm~100mm
Pixel 160000
Illuminating system Rear high-power LED fiber optic transmission
Probe Length(L) 4.5±0.5mm
Diameter(D) 2.8mm
Articulating 360° full direction articulation
Bending Angle(ɑ) 170°±10° 140°±10° 110°±10°

Brightness of

Illumination

 1m 1m<L≤2m /
≥15000Lux ≥10000Lux /
Working temperature -20°C~70°C
Inserting tube Length 1m 2m 3m
Material Flexible (tungsten braided tube)
Host Dimension 350*155*59mm
Display 5 inch industrial touch LCD screen
Output port HDMI video output,Micro USB,TF card slot
Storage 32G
Power Special rechargeable lithium battery pack, online charging, battery life ≧4 hours
IP grade IP54
Working temperature -10℃～50℃
Storage temperature −20℃～60℃
Relative humidity Max 95%,No condensation
System Operation System Multifunctional operating system
Operation method Button navigation, dual camera and video buttons
Support Function With freeze, zoom, photo, flip, video playback, analog ruler functions
File Format Image:JPEG(JPG),Video:AVI
Support Language Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese
Packing Case Weight 3.9Kg
L*W*H 479*387*155mm



VH510-18 (Direct View):

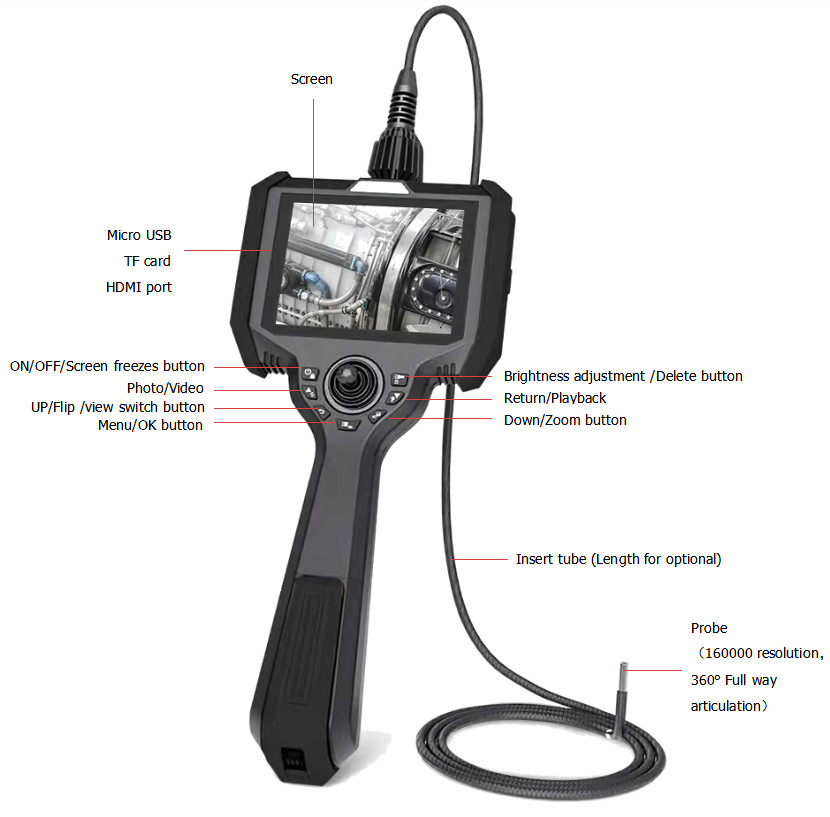

Direct View Portable Industrial Endoscope Camera IP54 160000 Pixel VH510-28-300 2
