Home /Products/Metallographic Analysis Machines/Φ22mm Mounting Press For Metallographic Samples

Φ22mm Mounting Press For Metallographic Samples

1 Sets
MOQ
Can be discussed
Price
Φ22mm Mounting Press For Metallographic Samples
Features Gallery Product Description Request A Quote
Features
Specifications
Code#: 713-101
Sample Diameter: Φ22mm
Heating Range: Max190℃
Holding Time Range: 0-30min
Machine Power: ≦800w
Dimension: 260*360*450mm
Net Weight: 35Kg
Highlight:

Φ22mm Mounting Press For Metallographic Samples

,

220V Mounting Press For Metallographic Samples
Basic Infomation
Place of Origin: Dongguan, China
Brand Name: SINOWON
Certification: CE
Model Number: MP2-22
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Month
Product Description

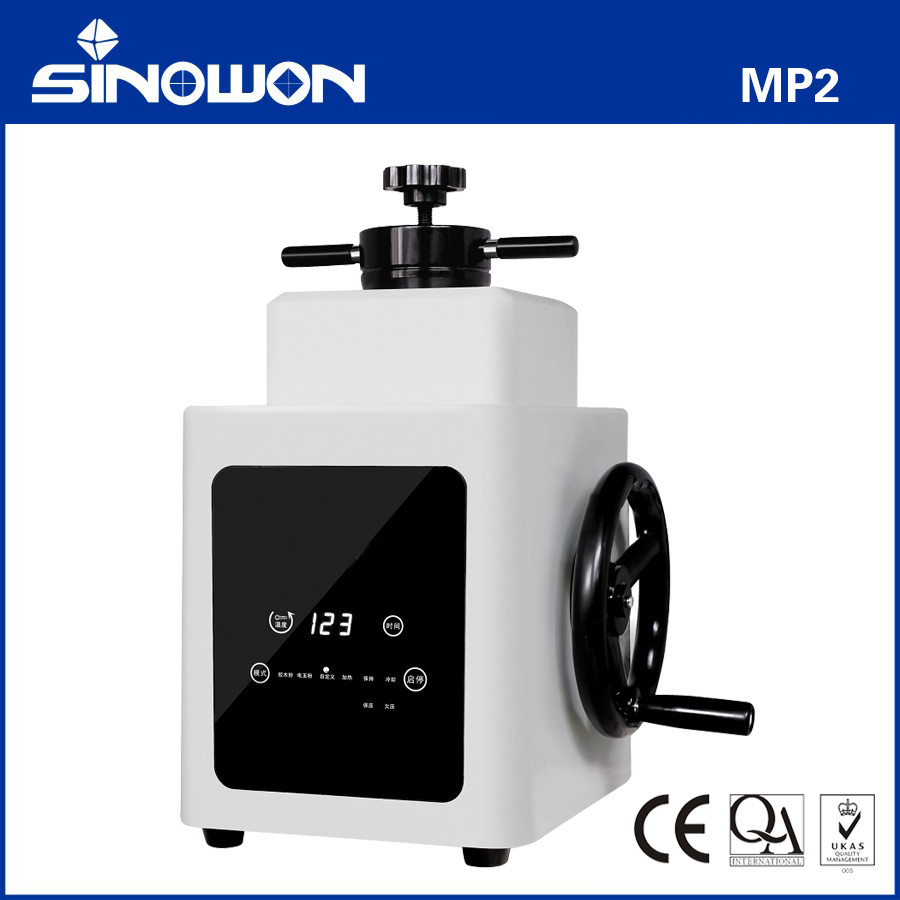

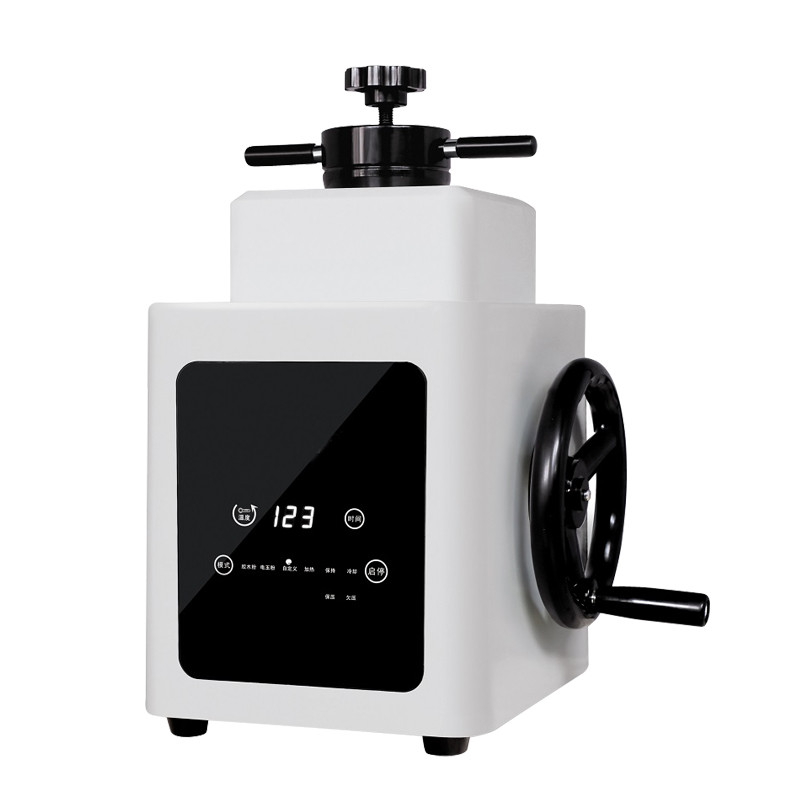

Metallographic Mounting Press MP2 Series

Φ22mm Mounting Press For Metallographic Samples 0



Application:



This machine is designed for purpose of the last process before polishing. It is setting up those small, difficult-to-hold or irregular specimens for metallographical test. It can facilitate polishing and watch properly the ideal material structure and measure the hardness of the material by hardness tester. The inserts for this machine are limited to thermosetting materials only .The punching temperature of different thermosetting materials can be adjusted depending upon the features of materials .

The inserts are available from the sales agency of our company.



Technical Paramenters:



Model MP2-22 MP2-30 MP2-45
Code# 713-101 713-111 713-121
Sample diameter Φ22mm Φ30mm Φ45mm
Heating Range Max190℃
Holding time Range 0-30min
Machine Power ≦800w
Input voltage 220V/50HZ
Dimension 260*360*450mm
Net weight 35Kg
