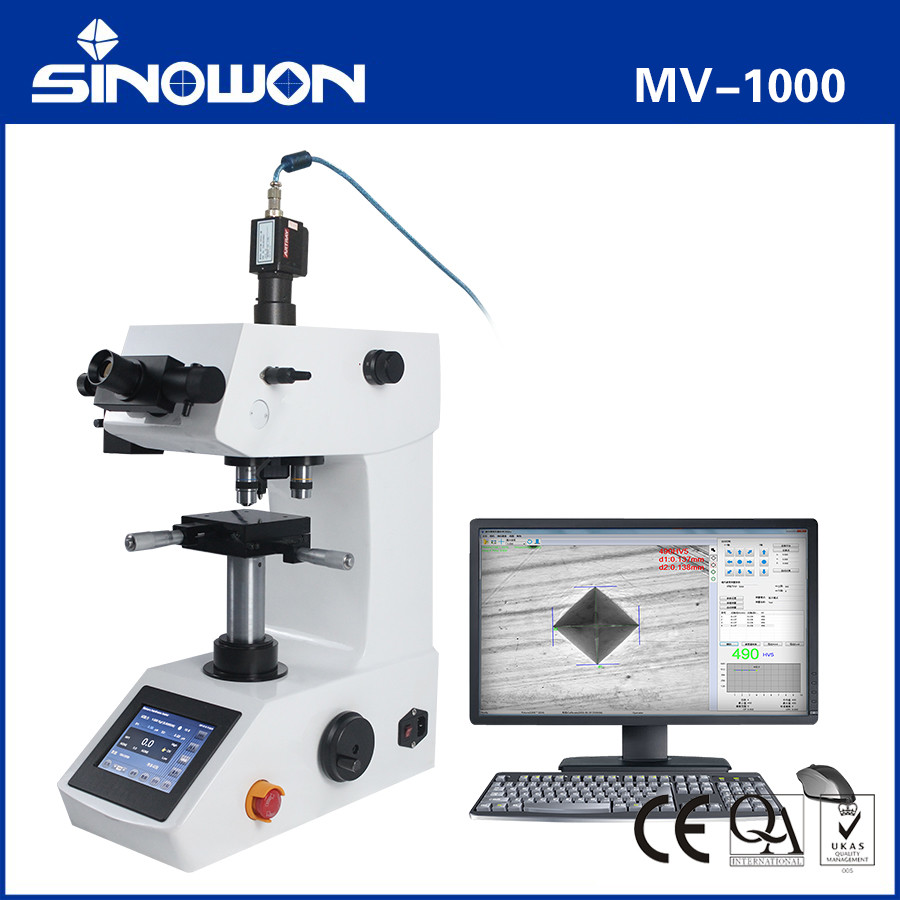

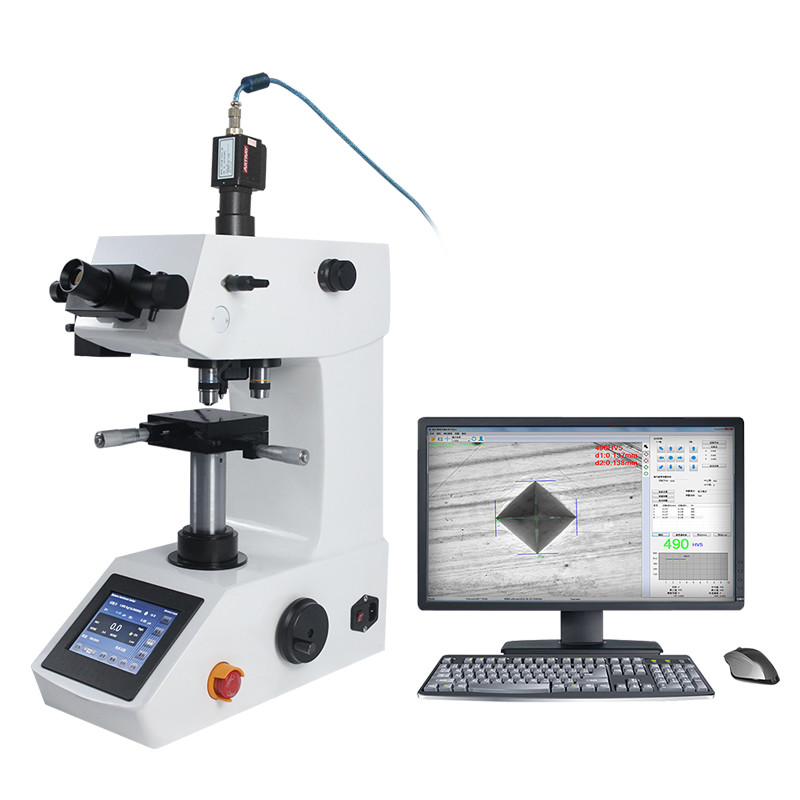

Vision Micro Vickers Hardness Tester with Measurement Software MV-1000 Series
Introduction:
Upgraded Video Micro Vickers Hardness Tester not only has all the measurement functions of the ordinary visual microscope hardness tester, but also with the iVicky V2.0 Vickers hardness measurement software, which eliminates the measurement error of the operator using the visual optical reading, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results, while reducing the operator's work intensity and improving the efficiency of the measurement.
Application:
- Carburized layer, ceramics, steel, non-ferrous metals, thin plates, metal flakes, electroplated layers, small specimens.
- Gradient measurement of nitride layer, forest carbon layer and quench hardened layer.
Characteristics:
● Color touch screen. Auto hardness conversion to other scales.
● Gradient test can be performed, and the depth of hardened layer can be automatically calculated.
● With data viewing functions, data can be printed via Bluetooth.
● Automatic loading, dwelling, and unloading during the testing process, simple operation, no human operating error.
● Upgraded manual lifting system on the side of the worm gear, and the screw has no gap.
● Upgraded optical system with clear image of indentation, and improve the accuracy of the measurement.
● Optional The powerful video measurement software iVicky V2.0 can convert the measured Rockwell hardness into Brinell Hardness HBW and Rockwell hardness HRC, HRA, HRB, and can also generate hardness gradient curve. Output WORD format measurement report.
● Measurement through the measuring software eliminates the operator's measurement error with visual optical readings, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results.
Specification:
| Commodity |
Digital Micro Vickers Hardness Tester |
| Model |
MicroVicky VM1010 |
MicroVicky VM1010A |
MicroVicky VH1010 |
MicroVicky VH1010A |
| Code# |
823-102 |
823-102A |
823-162 |
823-162A |
| Numerical input method |
Manual |
Manual |
Auto |
Auto |
| Lens and Indenter Switch |
Manual Turret |
Auto Turret |
Manual Turret |
Auto Turret |
| Loading Force |
N |
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80 |
| gf |
10, 25, 50, 100, 200, 300, 500, 1000 |
| Dwell Time |
1~60 adjustable |
| Loading Control |
Automatic |
| Magnification |
100x/40x(500x customizable) |
| Minimum measurement unit |
0.025 μm |

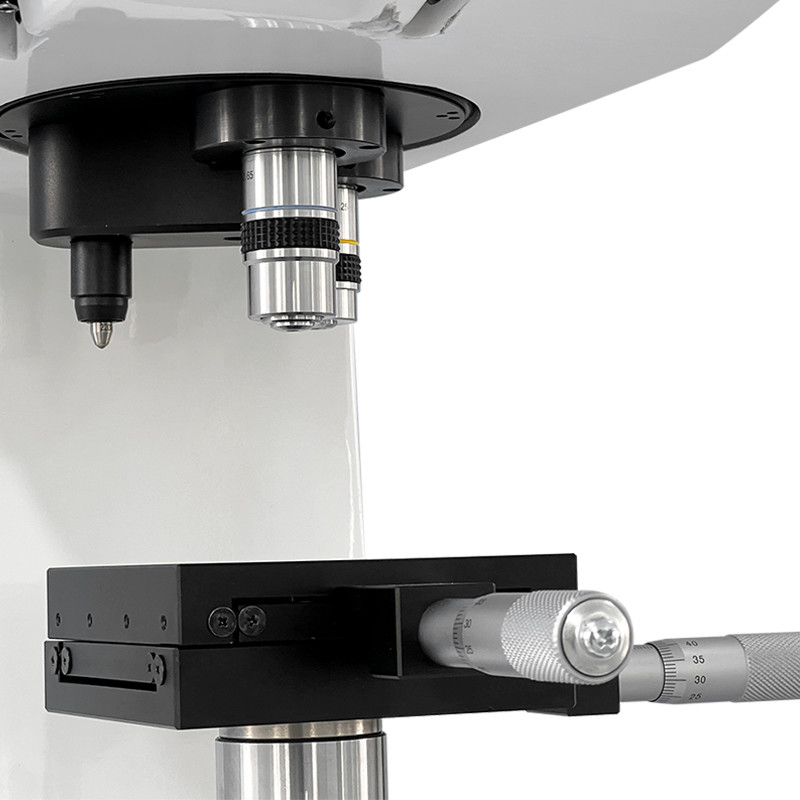

| Analogue X-Y Anvil |
Size: 100x100mm; Travel: 25mmx25mm |
| Max. Height of Specimen |
90mm |
| Instrument Throat |
120mm |
| Dimension(LxWxH) |
425x245x530mm |
| Packing Dimension |
500x490x720mm |
| Net weight |
55Kg |
| Gross Weight |
70Kg |
| Power Supply |
AC220V,50/60HZ |
| Execution Standard |
ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2 |
Vickers Measurement Software iVicky V2.0
Introduction:
Sinowon new generation vickers/knoop measurement software with friendly operation interface, apply USB camera to fast capture video and images, supports case depth inspection by analyzing the indentation image.
In traditional way, operators judge the size of the indentation through the microscopes, due to vision errors, different operators obtain different measurement results for same indentation, while by software, then indentation is enlarged through high resolution lens, and the size of indentation can be automatically obtained by image processing algorithm, largely improve the accuracy and efficiency.
Features:
● One-Key operation, easy and fast.
● Automatic image process technology, high accuracy and stable result.
● curve chart to display hardness results.
● Support English, Russian and Chinese operation language.
● Standard measurement parameters and user-defined parameter for selection.
● Supports hardness conversion.
● Support report generation by Word/Excel.

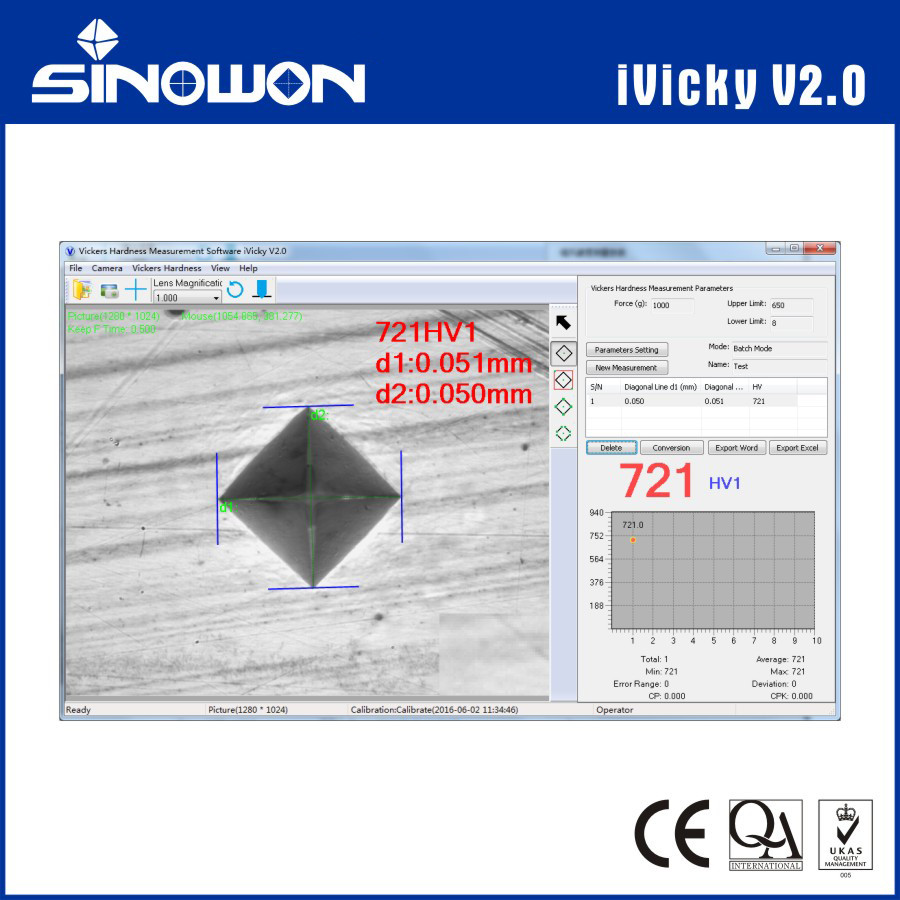

Interface of Software:
