CE Approved Vickers Hardness Measurement Software IVicky V2.0

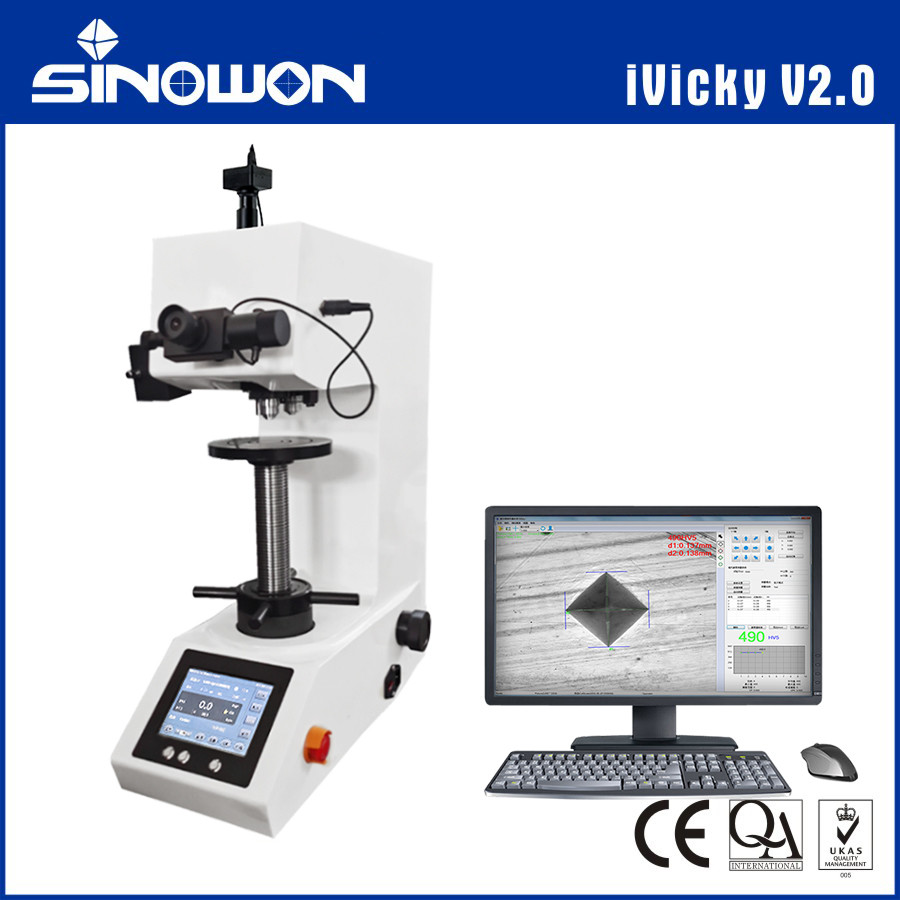

Vickers Measurement Software iVicky V2.0

Introduction:

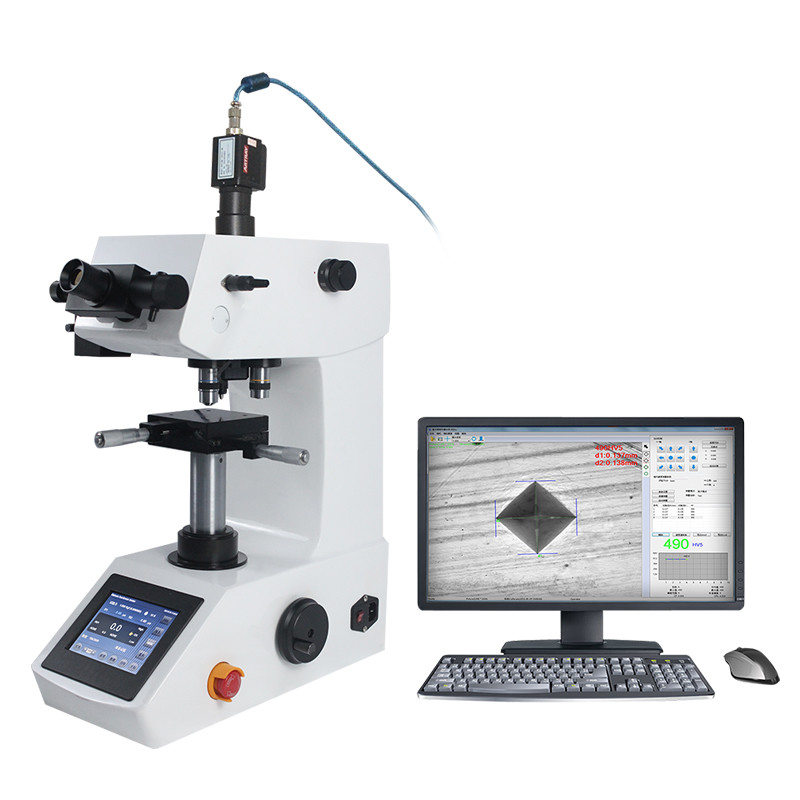

Sinowon new generation vickers/knoop measurement software with friendly operation interface, apply USB camera to fast capture video and images, supports case depth inspection by analyzing the indentation image.

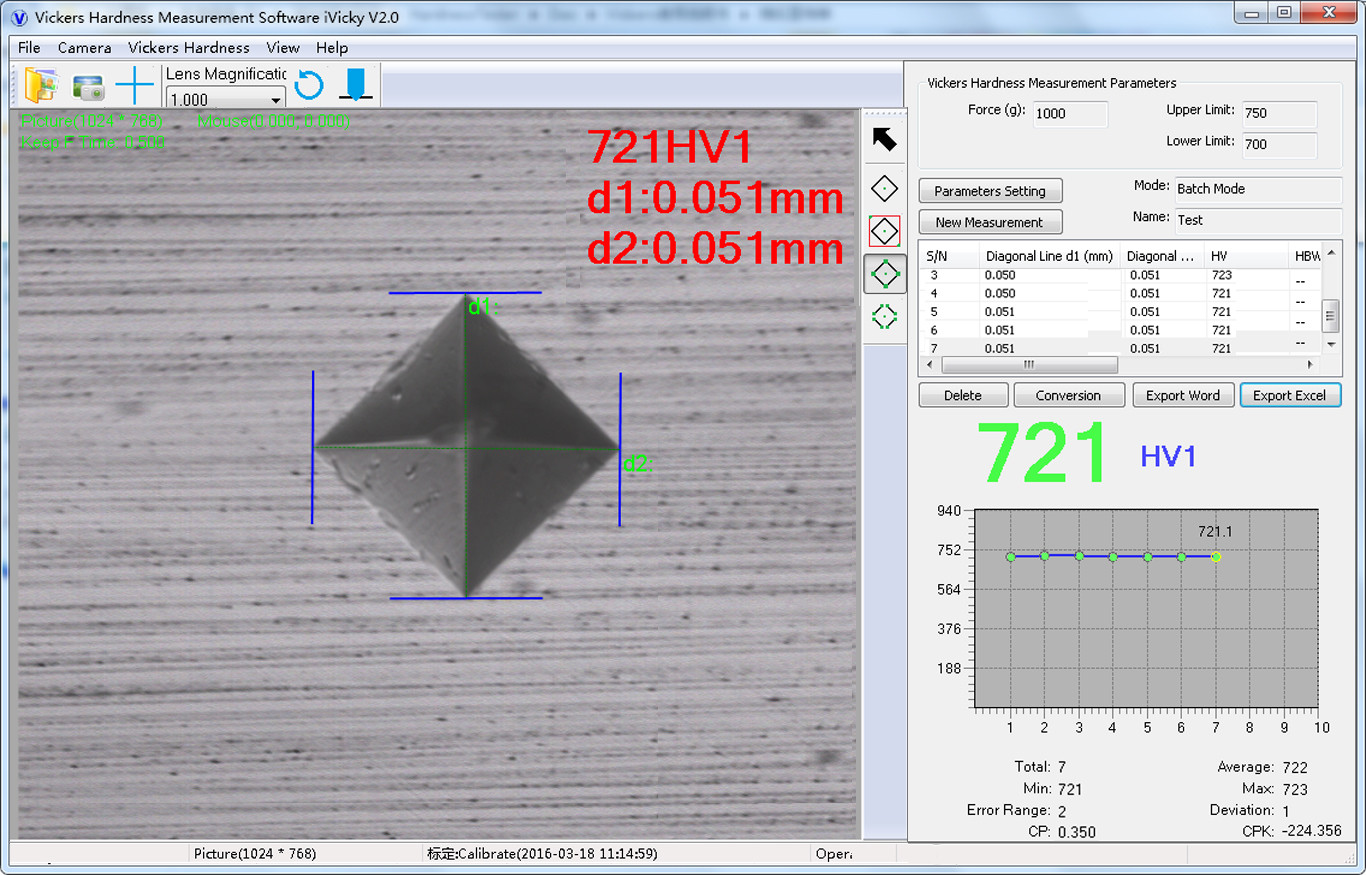

In traditional way, operators judge the size of the indentation through the microscopes, due to vision errors, different operators obtain different measurement results for same indentation, while by software, then indentation is enlarged through high resolution lens, and the size of indentation can be automatically obtained by image processing algorithm, largely improve the accuracy and efficiency.

Features:

● One-Key operation, easy and fast.

● Automatic image process technology, high accuracy and stable result.

● curve chart to display hardness results.

● Support English, Russian and Chinese operation language.

● Standard measurement parameters and user-defined parameter for selection.

● Supports hardness conversion.

● Support report generation by Word/Excel.
