Auto Turret Digital Vickers Hardness Tester Equipment 10x 20x Objective

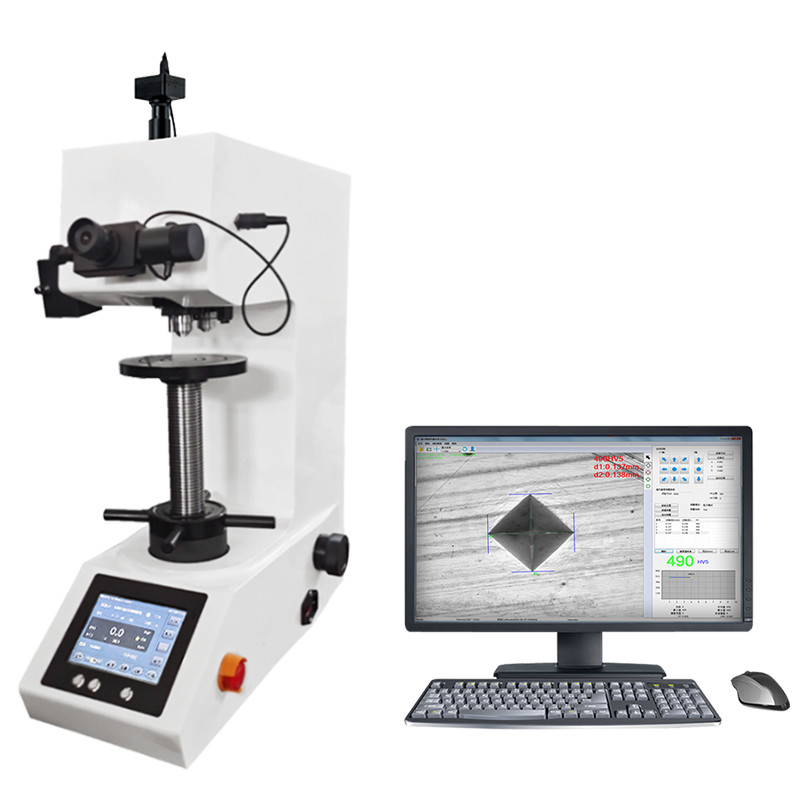

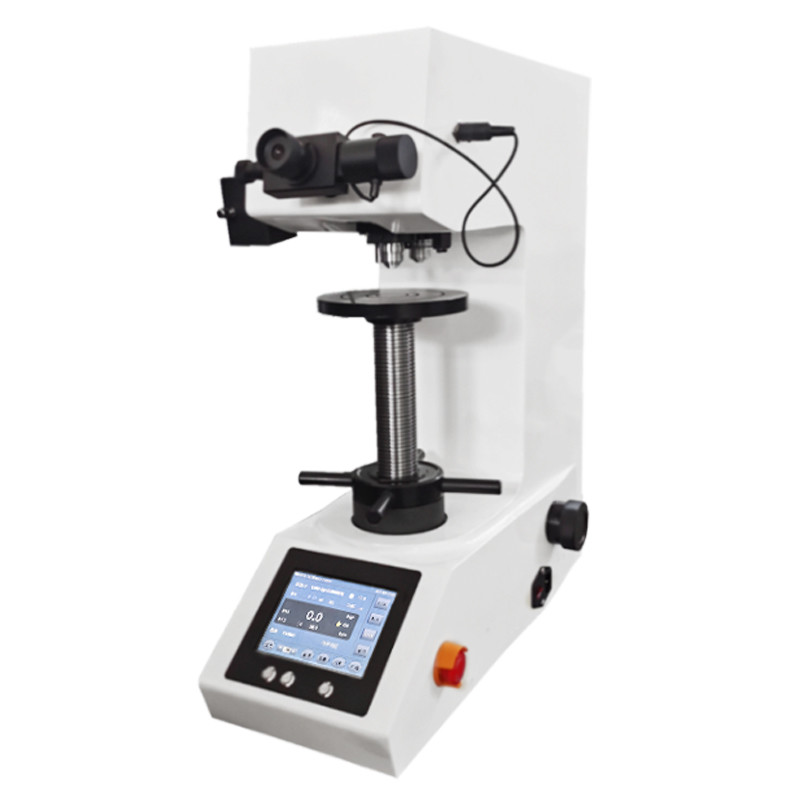

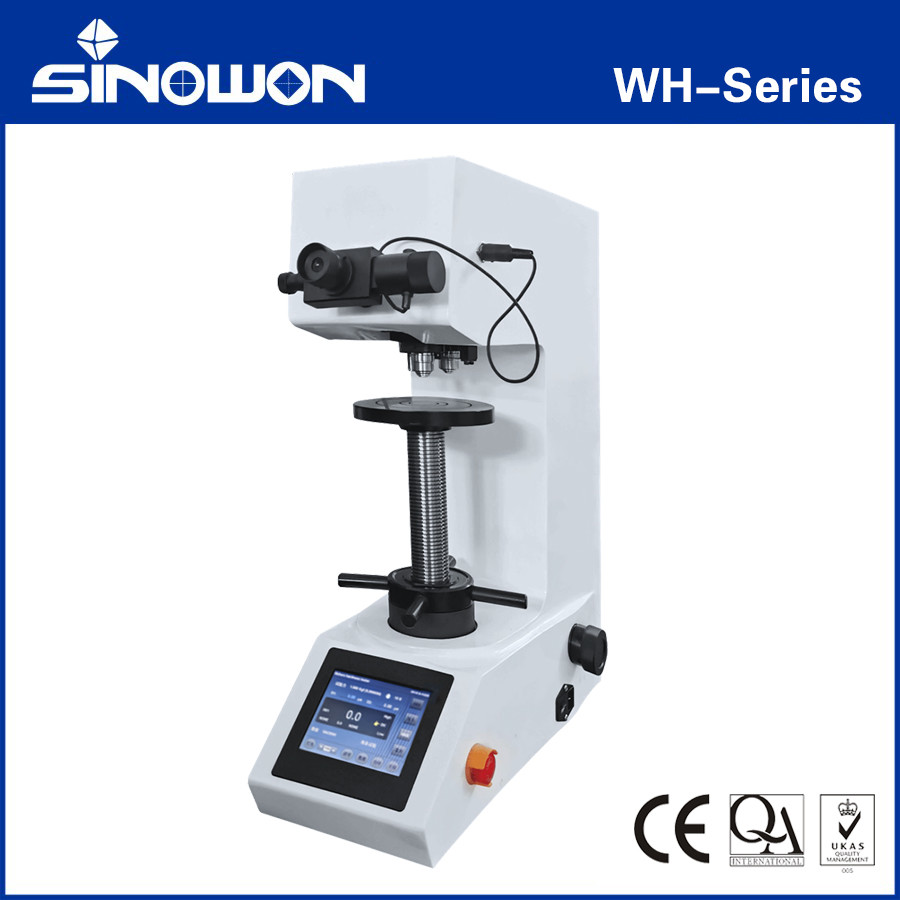

Digital Auto-Turret Vickers Hardness Tester WH5010

Introduction:

• The fuselage part of the product is formed at one time by the casting process, and has undergone a long-term aging treatment. Compared with the paneling process, the long-term use of the deformation is small, and it can effectively adapt to various harsh environments;
• Car baking paint, high-grade paint quality, strong scratch resistance, and still bright as new after many years of use;
• The optical system designed by the senior optical engineer not only has a clear image, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
• Equipped with an automatic turret, the operator can easily and freely switch the high and low magnification objective lenses to observe and measure the sample, avoiding the damage to the optical objective lens, indenter and test force system caused by human operation habits;
• Accuracy conforms to GB/T4340.2 ISO6507-2 and American ASTME384.

Application:

• Ferrous metal, non-ferrous metal, IC sheet, surface coating, laminated metal;
• Glass, ceramics, agate, precious stones, thin plastics, etc.;
• Hardness test of the depth and gradient of the carbide layer and quenching layer;
• Suitable for precise Vickers measurement of parallel planes, tiny parts and ultra-thin parts.

Specification:

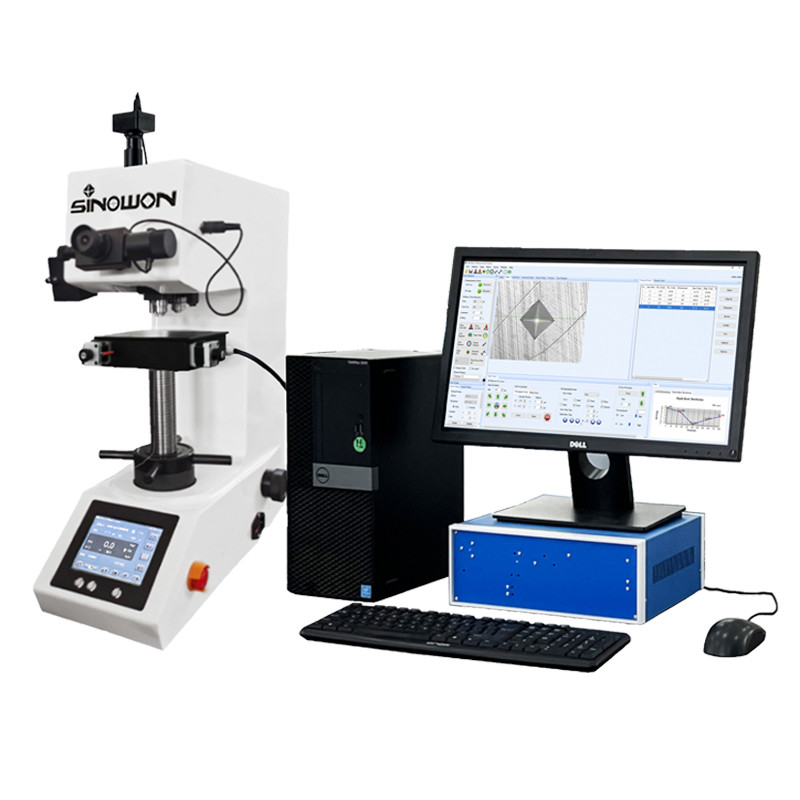

Vickers Measurement Software iVicky V2.0

Introduction:

Sinowon new generation vickers/knoop measurement software with friendly operation interface, apply USB camera to fast capture video and images, supports case depth inspection by analyzing the indentation image.

In traditional way, operators judge the size of the indentation through the microscopes, due to vision errors, different operators obtain different measurement results for same indentation, while by software, then indentation is enlarged through high resolution lens, and the size of indentation can be automatically obtained by image processing algorithm, largely improve the accuracy and efficiency.

Features:

● One-Key operation, easy and fast.

● Automatic image process technology, high accuracy and stable result.

● curve chart to display hardness results.

● Support English, Russian and Chinese operation language.

● Standard measurement parameters and user-defined parameter for selection.

● Supports hardness conversion.

● Support report generation by Word/Excel.
