Name: High Accuracy Optical Brinell Hardness Testing Machine Measurement System QB-500
Brand: Hoyamo and Sinowon Inc
SKU: QB-500
Availability: InStock

High Accuracy Optical Brinell Hardness Testing Machine Measurement System QB-500

1 Sets

MOQ

Can be discussed

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 838-390

Measuring Range: 8～650HBW

Hardness Resolution: 0.01HB

Repeatability: ±1HB

Specimen Weight: 15Kg

Stage Travel: 100X50mm

Z Axis Travel: 50mm

Software: Brinscan V2.0

Highlight:

High Accuracy Optical Brinell Hardness Testing Machine

CE Optical Brinell Hardness Testing Machine

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: QB-500

Document: D4 Sinowon QB-500 High Accu...a1.pdf

Payment & Shipping Terms

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

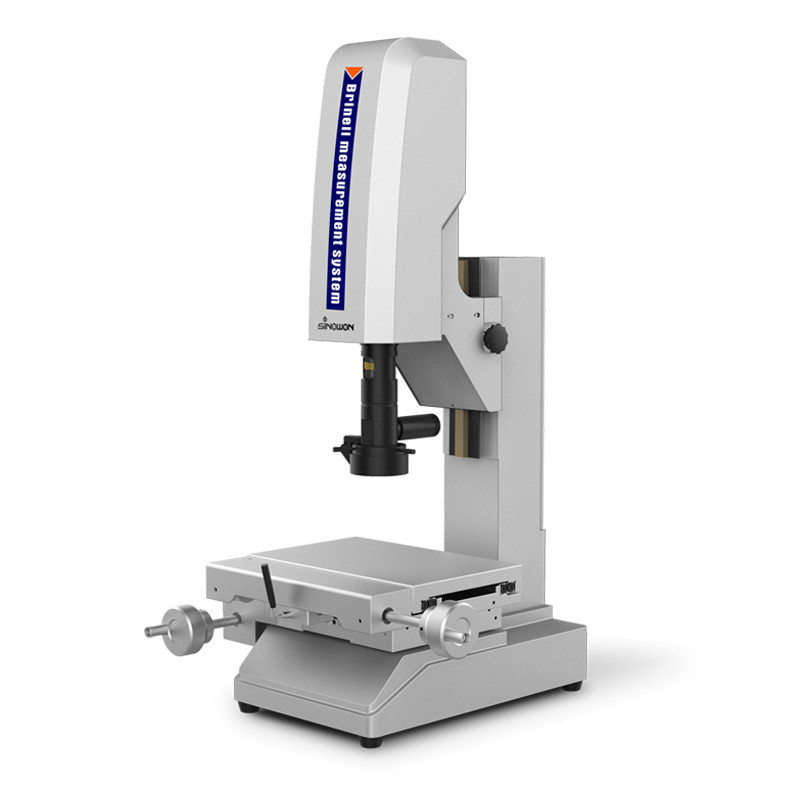

High Accuracy Optical Brinell Hardness Testing Machine Measurement System QB-500

Product Description

High accuracy Brinell optic measurement system QB-500

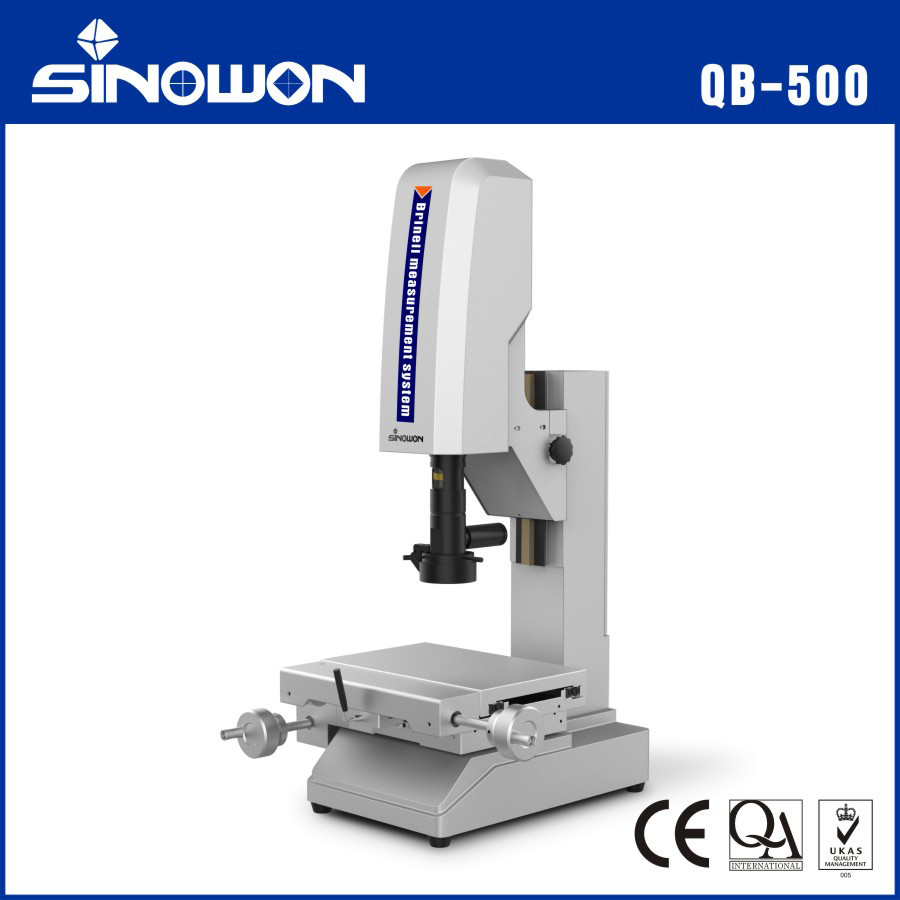

High Accuracy Optical Brinell Hardness Testing Machine Measurement System QB-500 0

Introduction:

● QB-500 high accuracy Brinell optic measurement system mainly used to test accuracy of hardness block for manufacturer and verification lab, also available for specimens Brinell indentation measurement.

Application:

BrinScan can be used in lab, and also can be used in connect with Windows tablet PC and laptop on site.

Features:

● Apply telecentric zoom lens, can measurement Brinell indentation accurately on mirror surface and rough surface.

● High accuracy microscope stage with travel 100 x 50mm, supportt specimen weight at max 15Kg.

● Non-touch optical measurement, with laser navigation, easily to find indentation.

● By BrinScan V2.0 software, realize auto measurement.

Technical Specifications:

Commodity	High accuracy Brinell optic measurement system
Model	QB-500
Code #	838-390
Hardness Resolution	0.01HB
Repeatability	±1HB
Specimen Weight	15Kg
Stage Travel	100X50mm
Z Axis Travel	50mm
Z Axis Guiding	Dovetail groove and manual driven
Illumination	Adjustable LED cold light source, coaxial light source
Software	Brinscan V2.0
Operation OS	Win8,Win10,32/64bit；Office
Working Environment	Temperature 20℃±1℃, Humidity 30~80%
Voltage	220V/50HZ
Weight	20Kg
Dimension	440410700mm

High Accuracy Optical Brinell Hardness Testing Machine Measurement System QB-500 1
