Name: Lightweight Portable Hardness Tester Digital Shore Hardness Durometer SI-100 Series
Brand: Hoyamo and Sinowon Inc
SKU: SI-100A
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 842-311

Display: LCD Display

Range: 10~90 HA/HD(B/C/E/O/DO/OO)

Statistics: Avrtshr Value, Min-max

Resolution: 1um(0.1mils)

Accuracy: ≤1H

Dimension: 176*63*25 Mm

Weight: 310g

Highlight:

Lightweight Portable Hardness Tester

Digital Portable Hardness Tester

Digital Shore Hardness Durometer

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: SI-100A

Document: D4 Sinowon SI-100 Series Di...a1.pdf

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

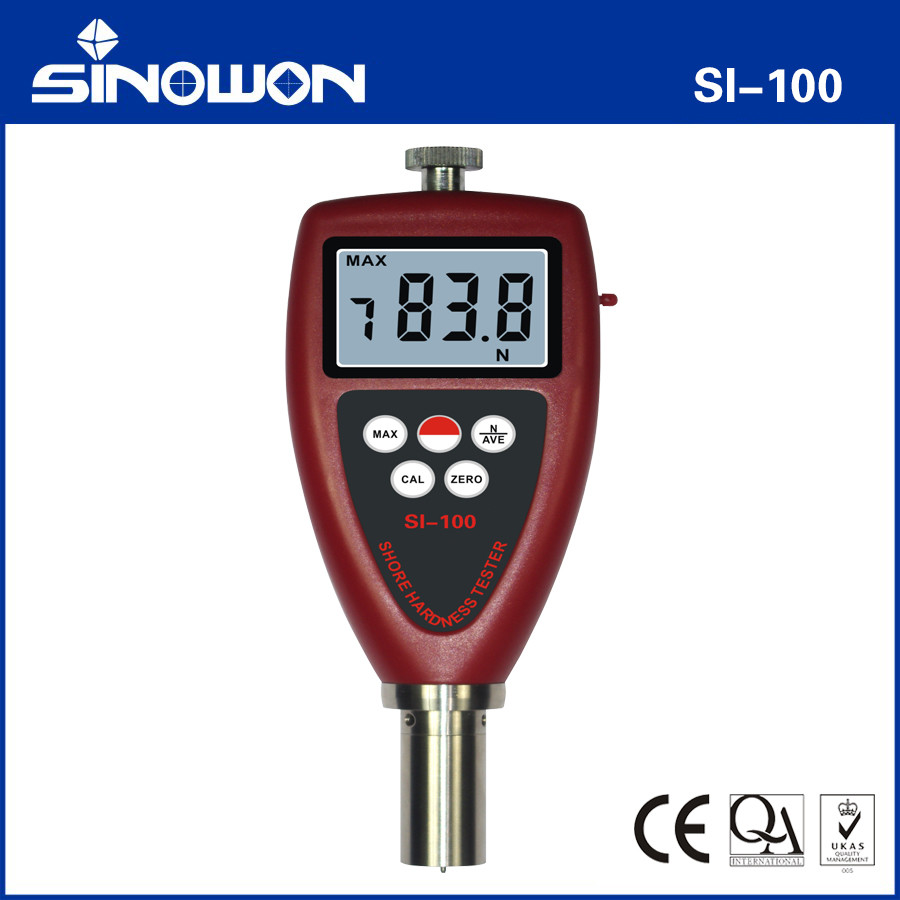

Lightweight Portable Hardness Tester Digital Shore Hardness Durometer SI-100 Series

Product Description

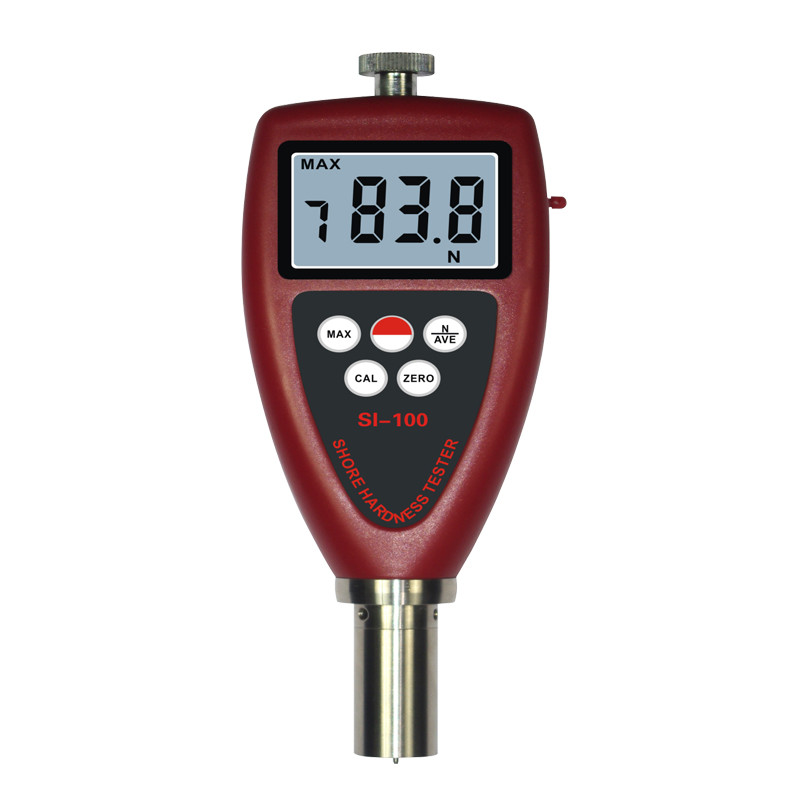

Digital Shore Durometer SI-100 series

Lightweight Portable Hardness Tester Digital Shore Hardness Durometer SI-100 Series 0

Features:

● Public and imperial units converted, with the average computing power;

● Integrated design, small volume, light weight, simple structure, easy to use;

● intuitive readings and automatic shutdown function;

● Use USB data output and RS-232 data output with connection PC;

● Brovid"Bluetooth" data output choice.

Specifications:

Model	SI-100
Display	LCD Display
Range	10~90 HA/HD(B/C/E/O/DO/OO)
Statistics	Avrtshr value, min-max
Resolution	1um(0.1mils)
Accuracy	≤1H
Operating temperature	0~40°C
Power Supply	2x1.5v AAA (UM-4)battery
Dimension	1766325 mm
Weight	310g
Execution Standard	GB/T 531,DIN53505,ASTM D2240,ISO7619,JISK7215

SI-100 Series Model Information:

Model	Code#	Indenter	Typical Examples Of Materials Tested	Haardness Valus
SI-100A	842-311	0.79 Truncated (Frustum) cone	Soft vulcanized rubber, natural rubber natriles, thermoplastic elastomers, flexible polyacrylics and thermosets, wax, felt, and leathers.	20~90A
SI-100B	842-321	R0.1 Cone	Moderately hard rubber, thermoplastic elastomers, paper products, and fibrous materials.	Above 90A Below 20D
SI-100C	842-331	0.79 Truncated (Frustum) cone	Medium-hard rubber, thermoplastic elastomers, medium-hard plastics and thermoplastics.	Above 90B Below 20D
SI-100D	842-341	R0.1 Cone	Hard Rubber, thermoplastic elastomers, harder plastics, and rigid thermoplastics.	Above 90A
SI-100DO	842-351	R1.2 Spherical radius	Moderately hard rubber, thermoplastic elastomers, and very dense textile windings.	Above 90C below 20D
SI-100O	842-361	R1.2 Spherical radius	Soft rubber, thermoplastic elastomers, very soft plastics and thermoplastics, medium-density textile windings.	Below 20DO
SI-100E	842-371	R2.5 Spherical radius	Hrad sponge, EVA	Above 90DO Below 20A
SI-100OO	842-381	R1.2 Spherical radius	Extremely soft rubber, thermoplastic elastomers, sponge, extremely soft plastics and thermoplastics, foams, low-density textile windings	Below 20O
