Name: Digital Leeb Hardness Tester Portable Hand Held Metal Hardness Tester CE Certified
Brand: Hoyamo and Sinowon Inc
SKU: SH-400
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 852-140

Measuring Direction: In Any Impact Direction (360°)

Hardness Scale: HL, HB, HRC, HRA, HRB, HV, HS

Support Impact Device: D / DC / D+15 / G / C / DL

Workpiece Min. Thickness Couple: 3mm

Dimensions: 155*55*25 Mm

Weight: 180 G

Highlight:

Digital Leeb Hardness Tester

CE Leeb Hardness Tester

Portable Hand Held Metal Hardness Tester

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: SH-400

Document: D4 Sinowon SH-400 Digital P...a1.pdf

Payment & Shipping Terms

Packaging Details: Carton

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Digital Leeb Hardness Tester Portable Hand Held Metal Hardness Tester CE Certified

Product Description

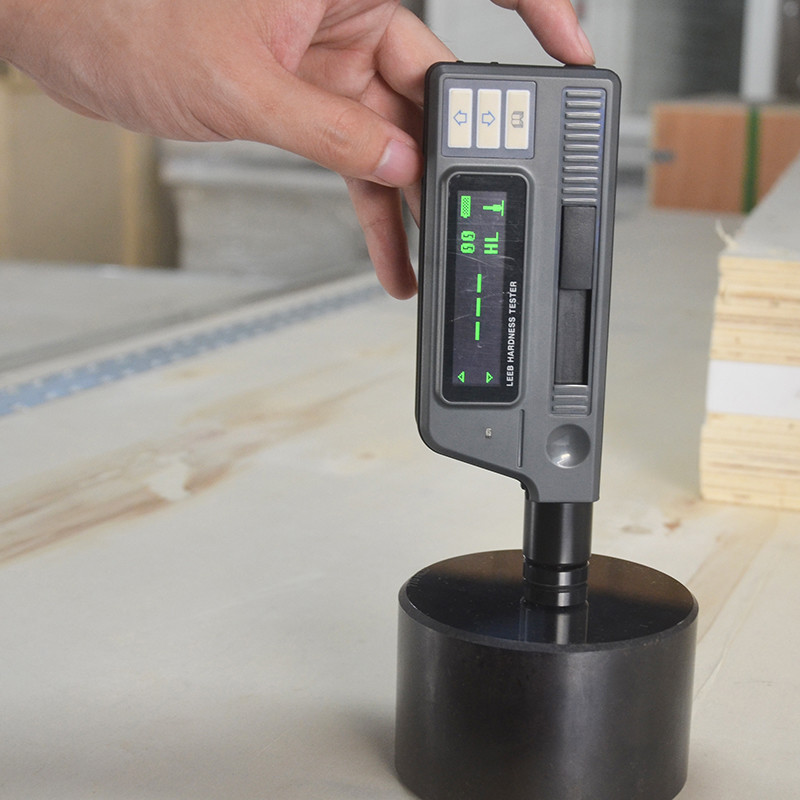

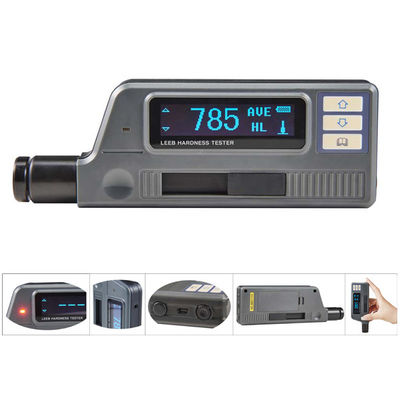

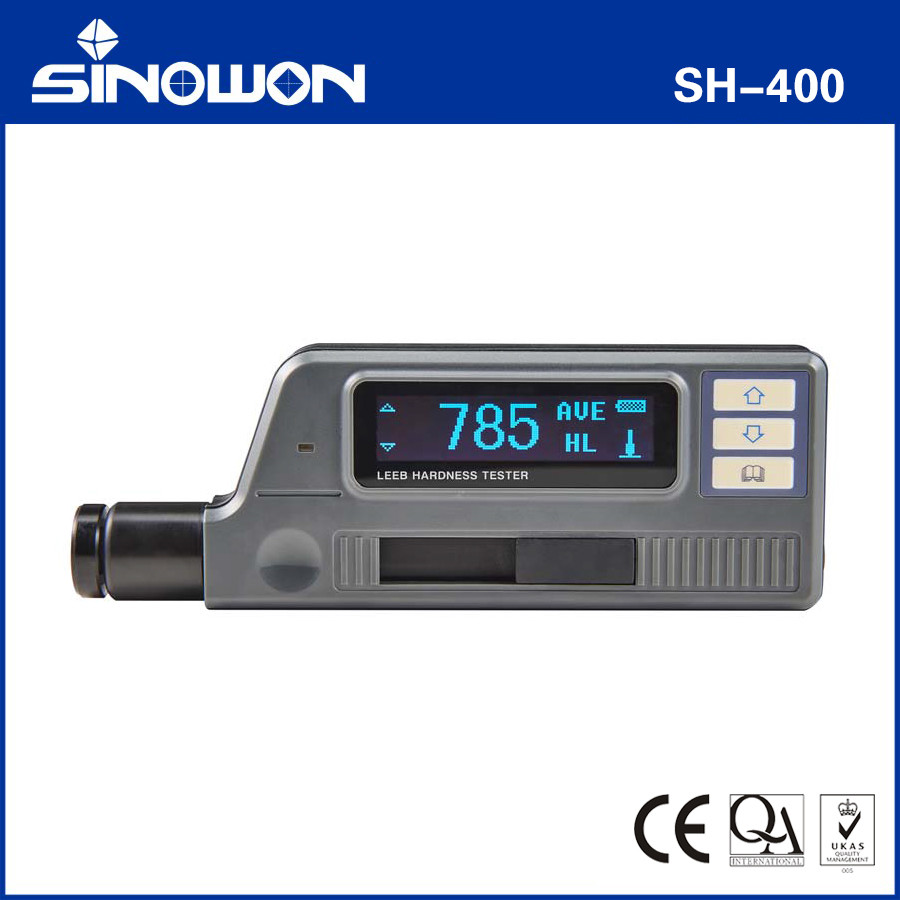

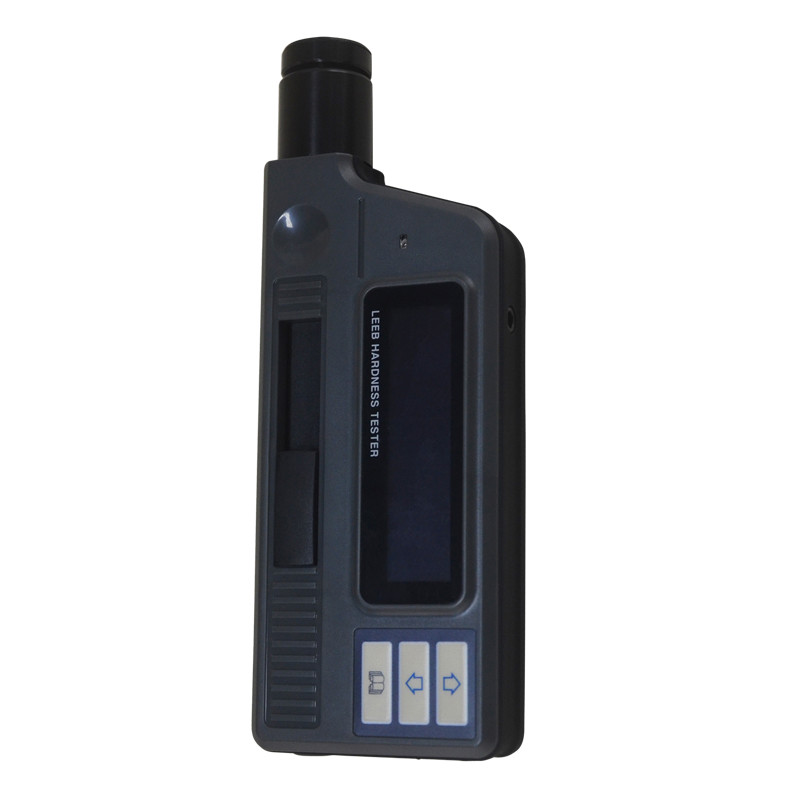

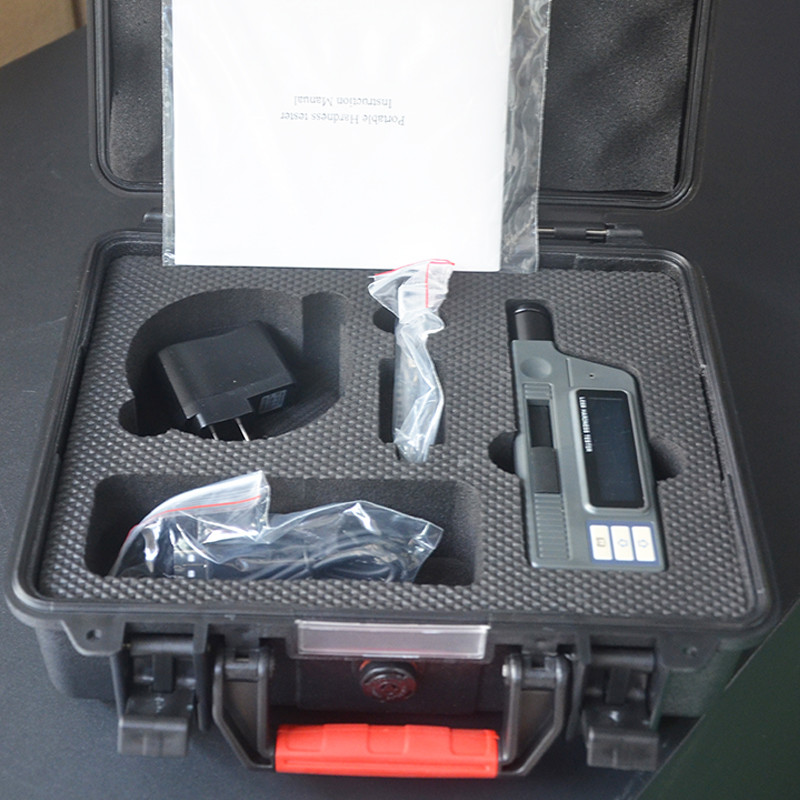

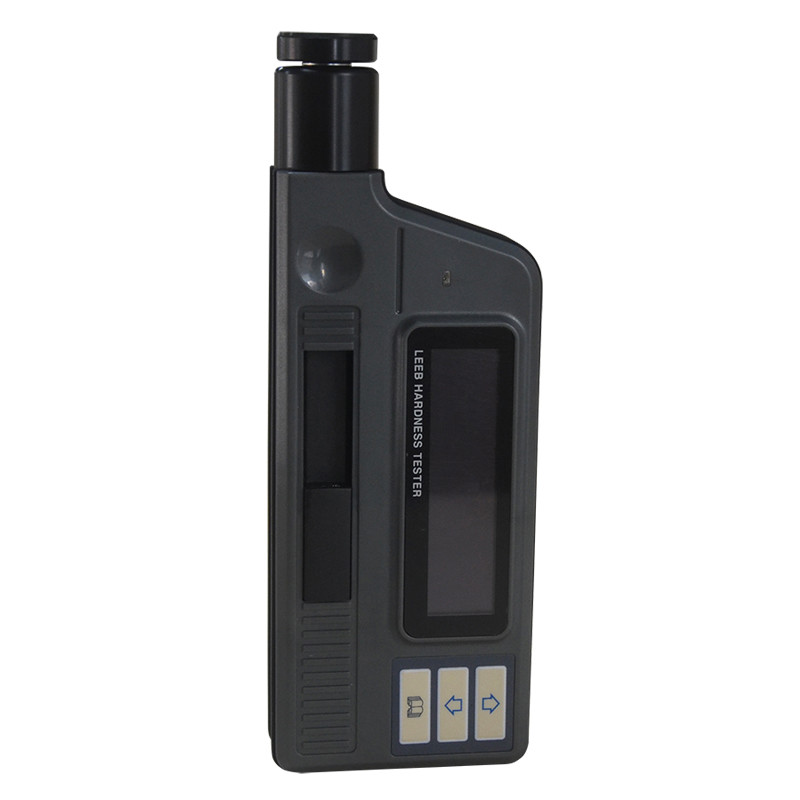

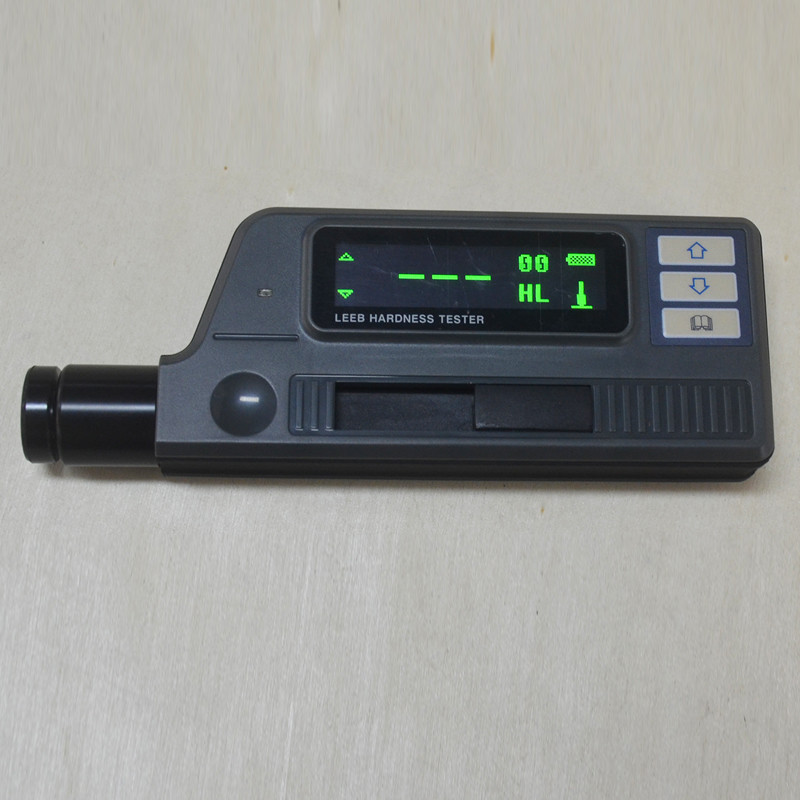

Portable Leeb Hardness Tester SH-400

Features:

● 128*64 dot matrix high contras LCD for optimum viewing in all conditions;

● Full USB communication with PC, software included free of charge;

● Highly accurate (± 4HL) in any impact direction (360°) - automatically;

● Internal storage of data with day and time capacity: 600 reading;

● Available to preset limitation with alarm in case exceeded the ranges;

● Real time shows battery information, auto power off in low battery situation;

● With software calibration function;

● Large capacity lithium battery.

Specifications:

Commodity	Digital Portable Hardness Tester
Model	SH-400
Code#	852-140
Measuring Range	(170-960)HLD,(20-68)HRC,(19-651)HB,(80-967)HV,(30-100)HS,(59-85)HRA,(13-100)HRB
Measuring Direction	In any impact direction (360°)
Hardness Scale	HL, HB, HRC, HRA, HRB, HV, HS
Applicable Materials	Steel and Cast Steel, Metallurgical Steel, Forging Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum Alloy, Pure Copper, Copper Zinc Alloy (Brass), Copper Tin Alloy (Bronze)
Support Impact Device	D / DC / D+15 / G / C / DL
Work piece radius (convex/concave)	Rmin=50mm(with support ring Rmin=10mm)
Min. Workpiece weight	2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device
Workpiece min. thickness couple	3mm
Workpiece min. case hardened depth	0.8mm
Operating Temperature	0～40℃
Battery Life	Continuously work 40hours
Dimensions	1555525 mm
Weight	180 g
