High Definition Digital Video Microscope

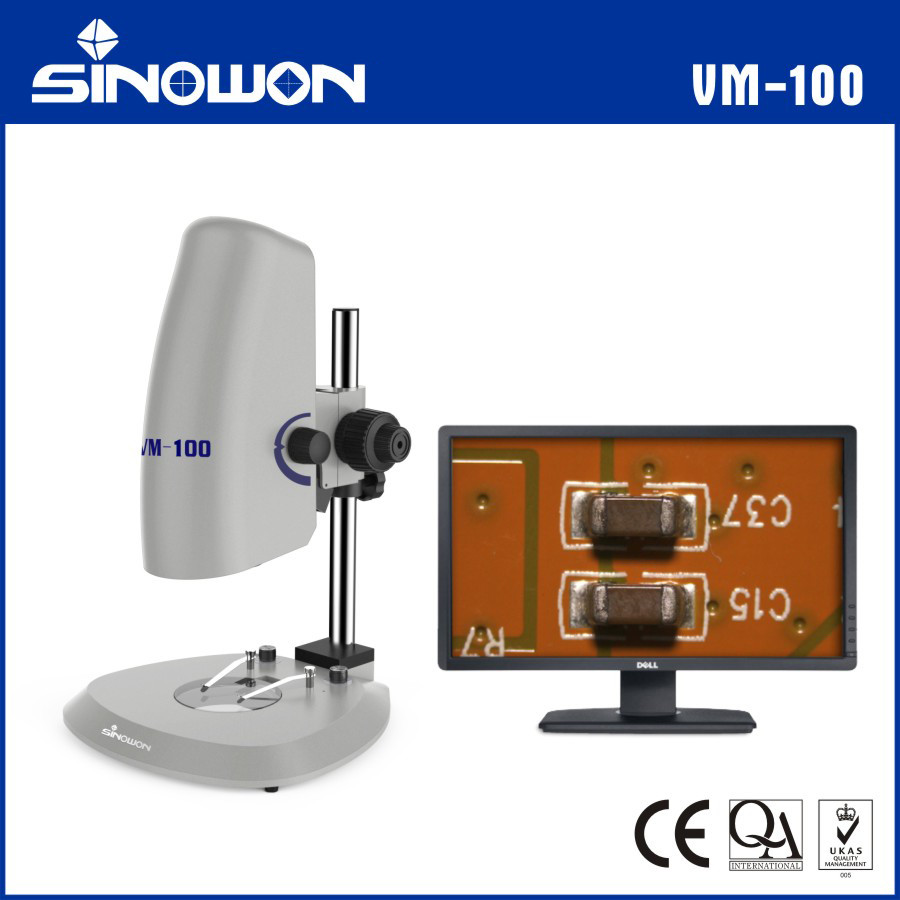

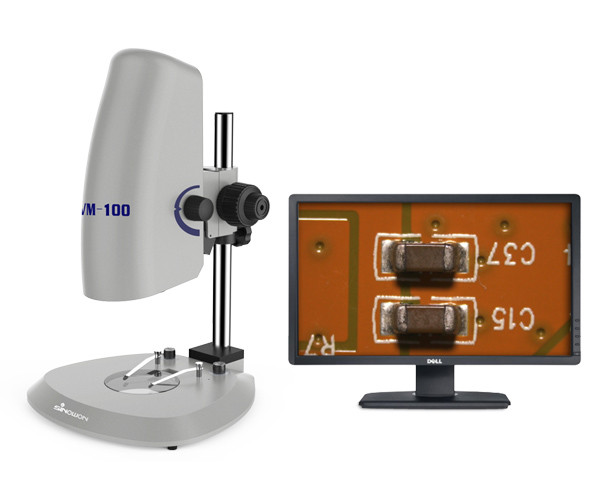

Video Microscope VM-100

Product Characteristics:

● Integral design, exquisite, fashion, generous;

● With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;

● With precision coarse and fine lifting system, ensure perfect focus and clear image;

● With adjustable LED bottom and surface illumination, it can control brightness independently;

● Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;

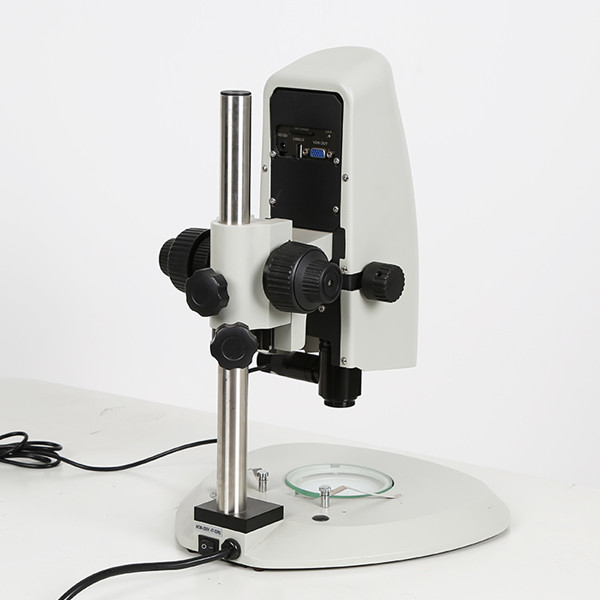

● Simple external interface: 12V power supply input and USB/VGA video output, SD card hole to make installation simpler;

● Multiple optional mobile control platform, ensure precision position measurement.

Application:

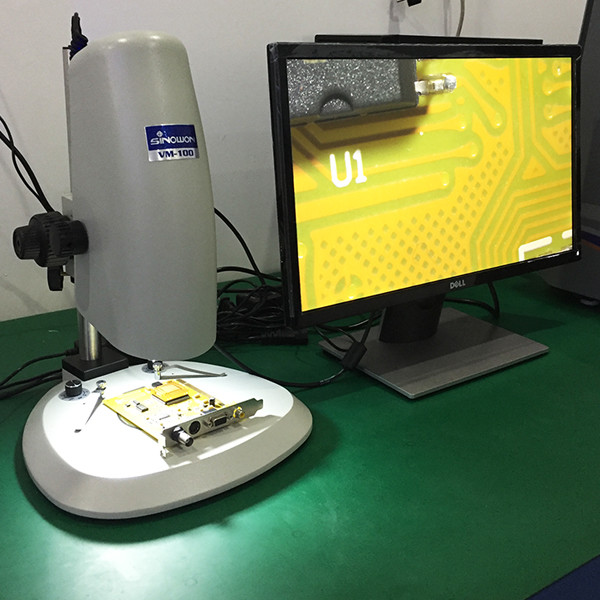

Video Microscope is widely used in the inspection of electronic industry production line, printed circuit board, weld detects ( such as wrong printing, edge collapse,etc)during printed circuit component, PC Board, VFD, and the identification of printing grid and painting, etc. It can display the zoom out image on the screen and save, magnify and print.

Technical Specification:

Camera Parameter:
