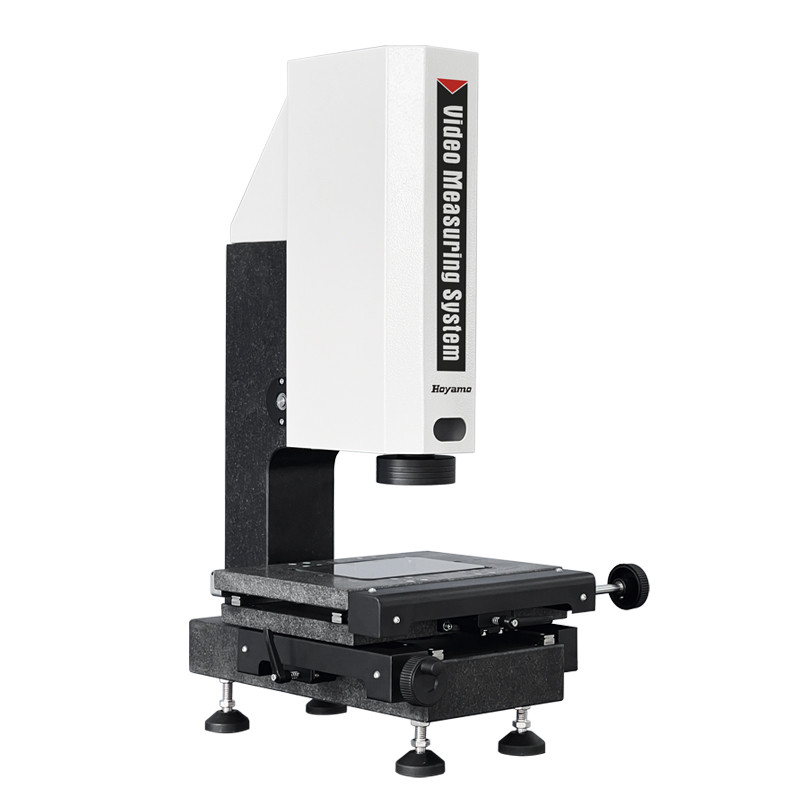

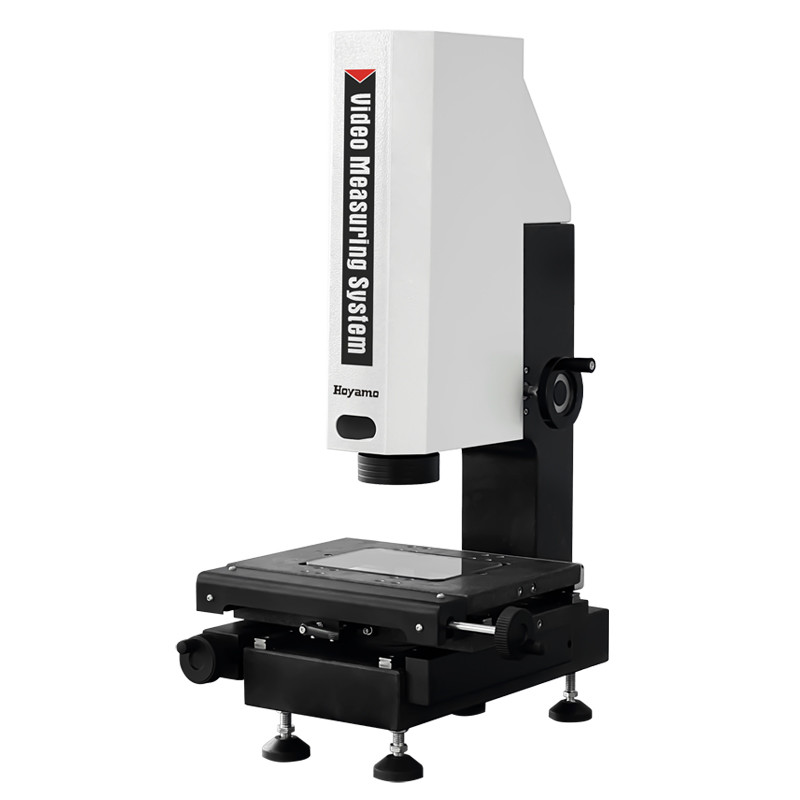

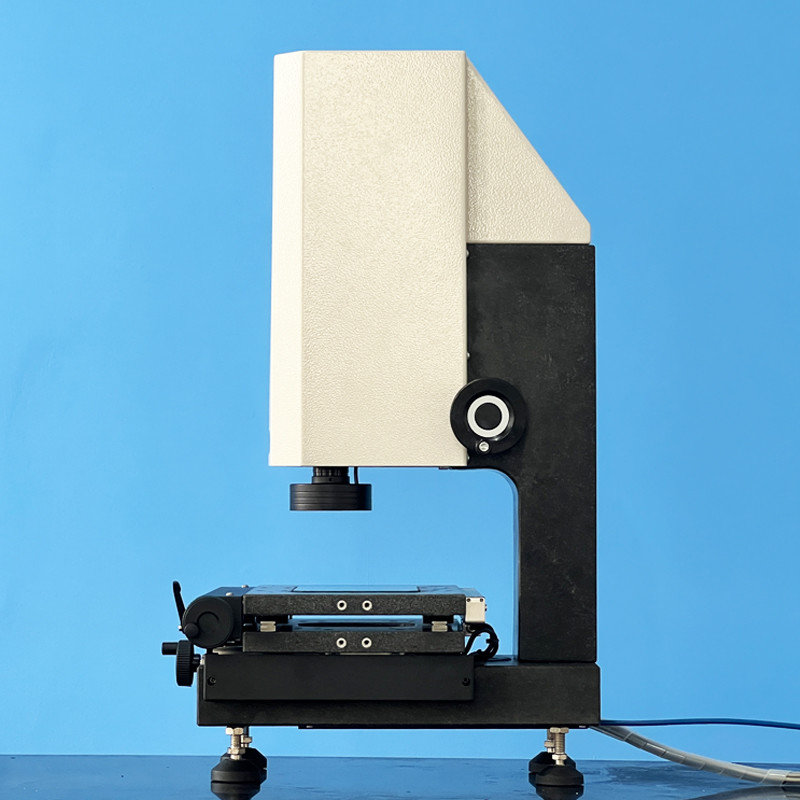

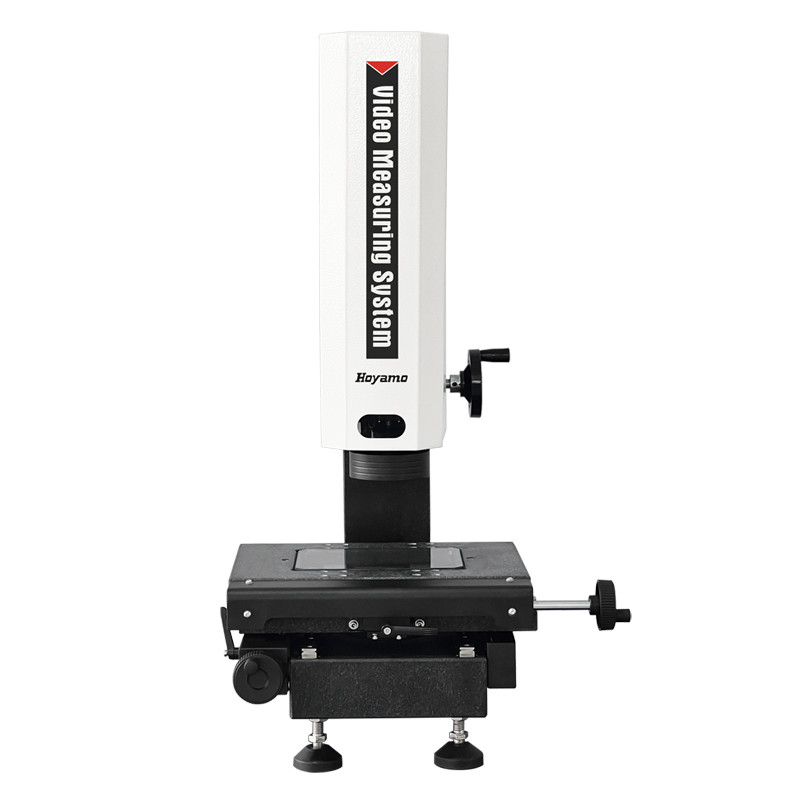

Portable Manual Vision Measuring Machine

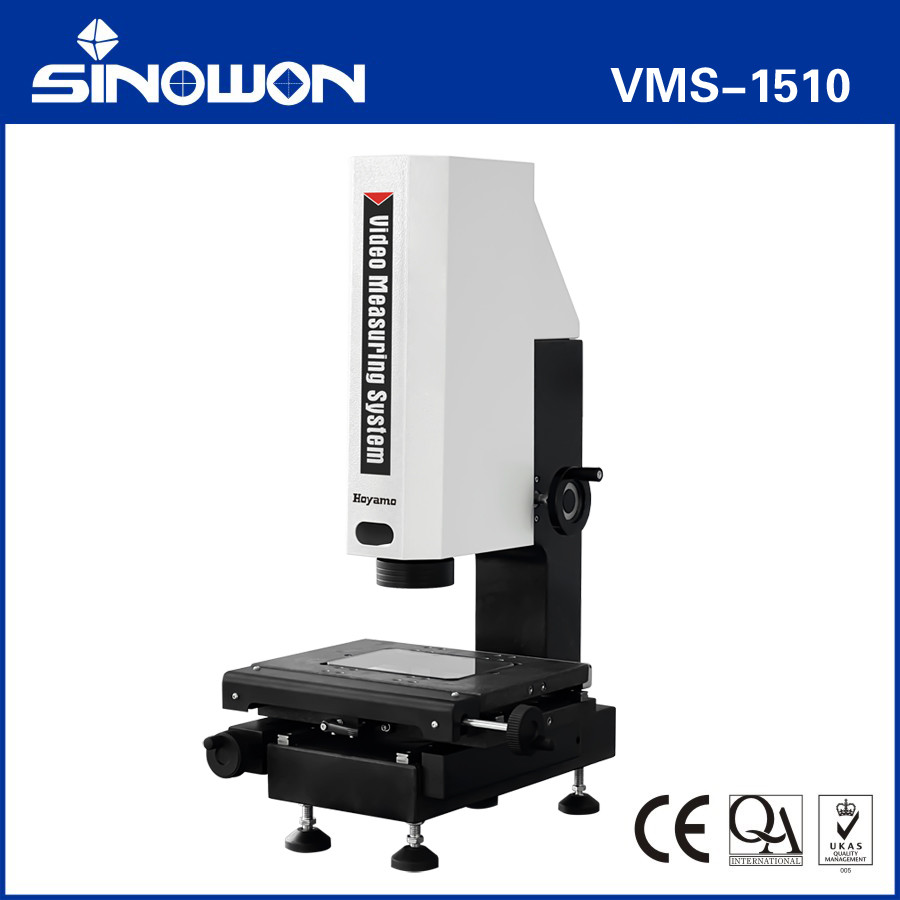

Video Measuring System VMS-1510


Product Characteristic:

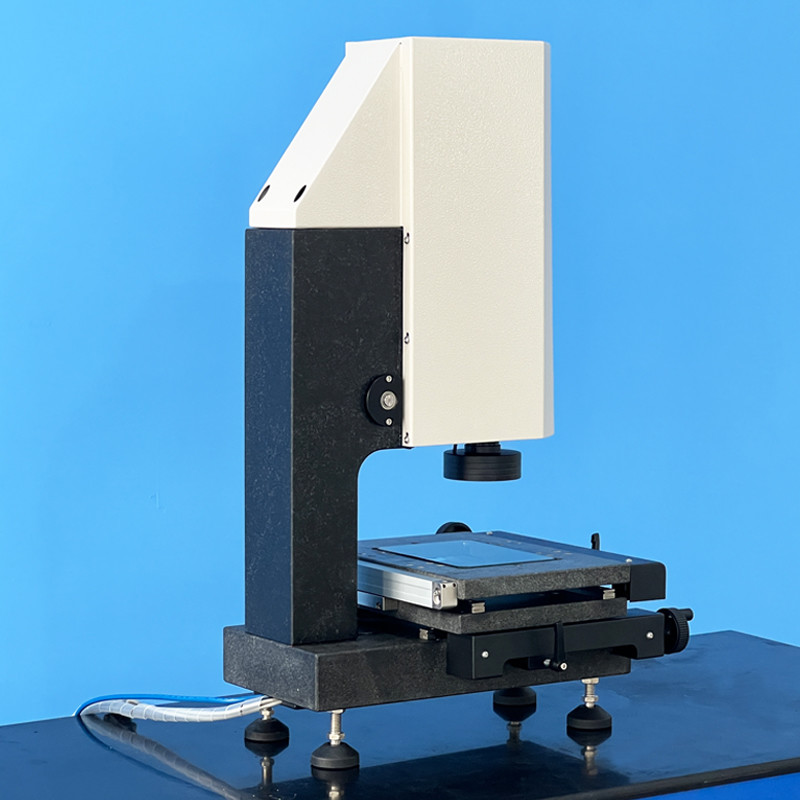

●   Adopt granite stone base and column to ensure the stability and precision of the machine;

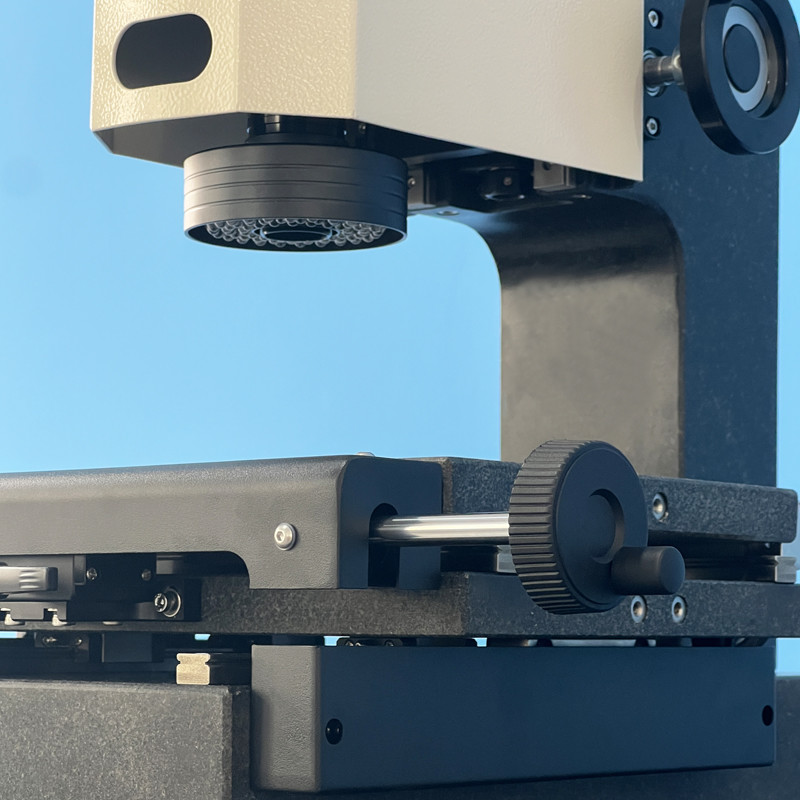

●  Adopt toothless polished rod and fast-moving locking device to ensure that the return error of the table is within 2um;

●  Adopt high-precision instrument optical ruler and precision worktable to ensure the accuracy of the machine is within ≤3.0+L/200um;

●  Adopt zoom lens and high-resolution color digital camera to ensure clear picture quality without distortion;

● Adopt program-controlled 3-ring single-zone LED cold surface light source and transmissive LED parallel light source, as well as built-in intelligent light adjustment module, can freely control the brightness of the light in the 3-ring single zone area;

● With iMeasuring Vision measurement software which improves quality control to a new level.

Technical Specifications:




Model and Specification of Manual Video Measuring System:

The Measuring Space of VMS Series of Vision Measuring System:
