Home /Products/Hardness Testers/Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A

1 Sets

MOQ

Can be discussed

Price

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 823-162A

Numerical Input Method: Auto

Lens And Indenter Switch: Auto Turret

Dwell Time: 1~60 Adjustable

Loading Control: Automatic

Magnification: 100x/40x(500x Customizable)

Max. Height Of Specimen: 90mm

Instrument Throat: 120mm

Net Weight: 55Kg

Highlight:

Automatic Micro Hardness Tester

,

Micro Hardness Tester Digital

,

Micro Vickers Hardness Tester

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: VH1010A

Document: D4 Sinowon MicroVicky VH101...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A

Product Description

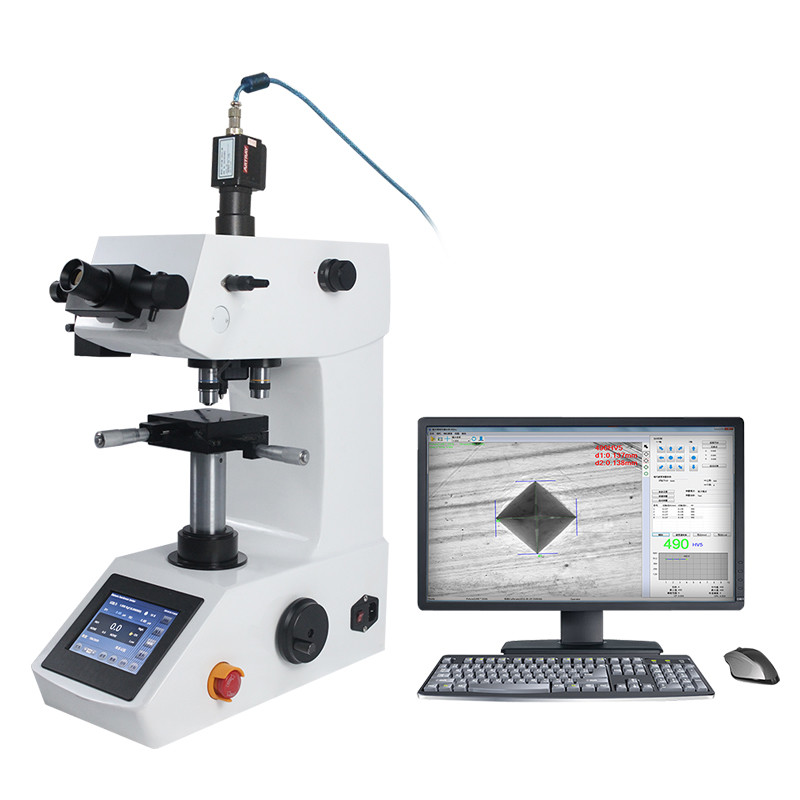

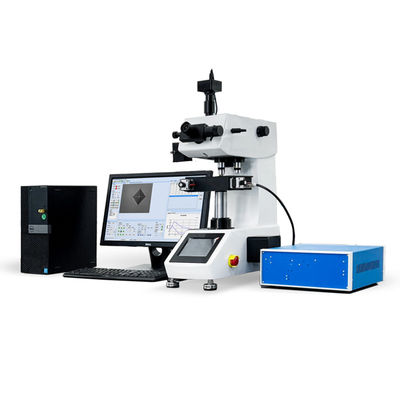

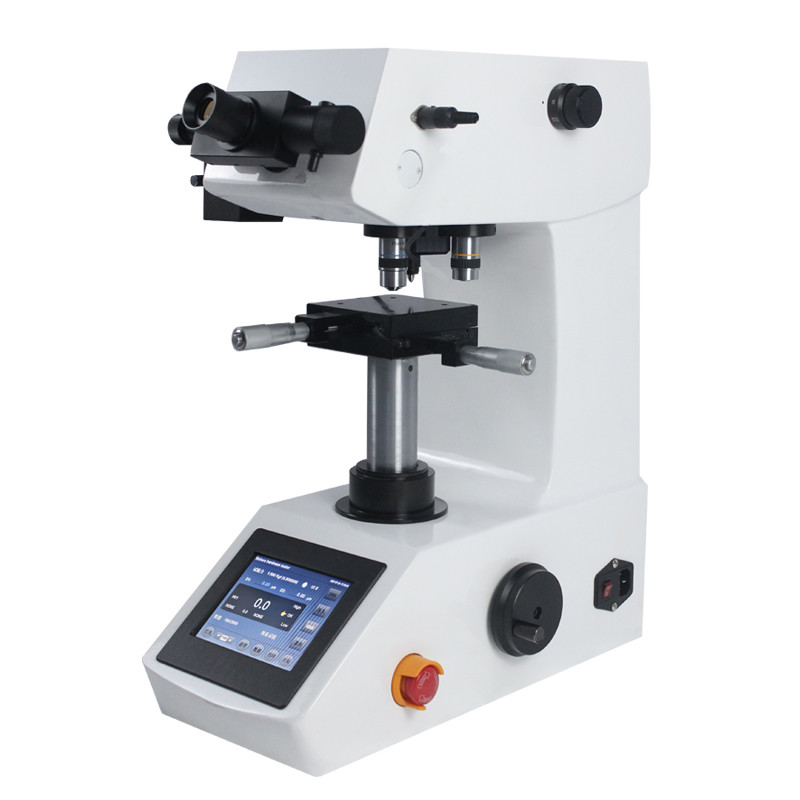

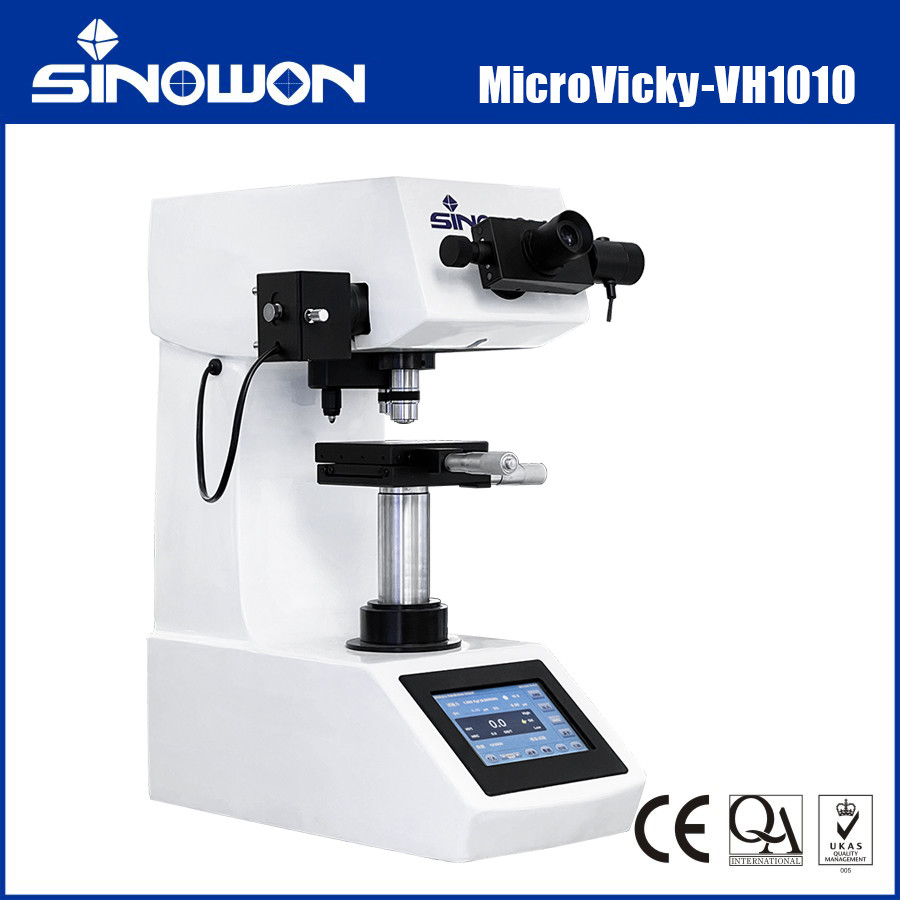

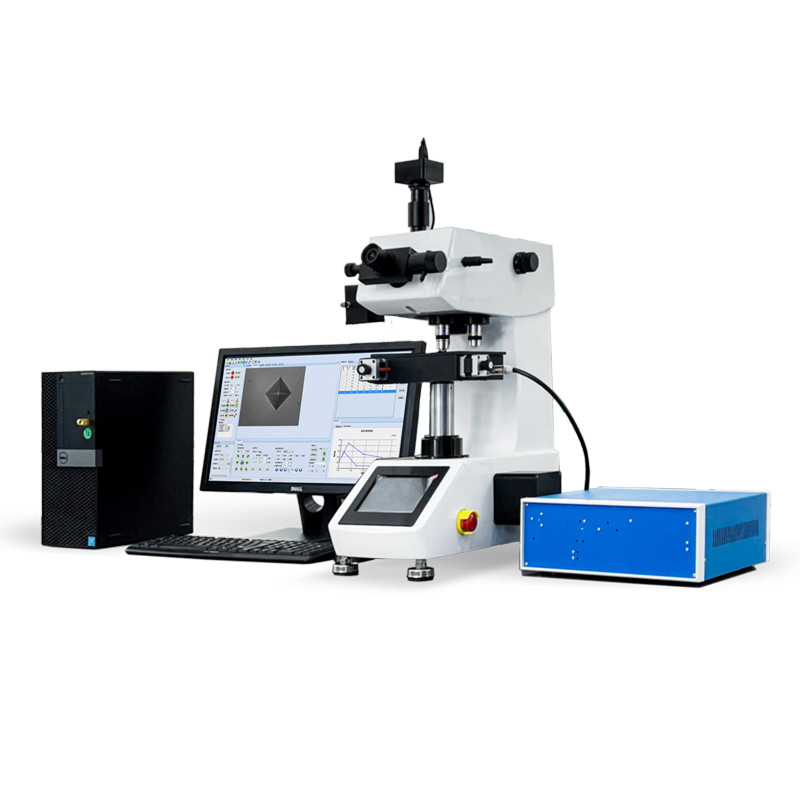

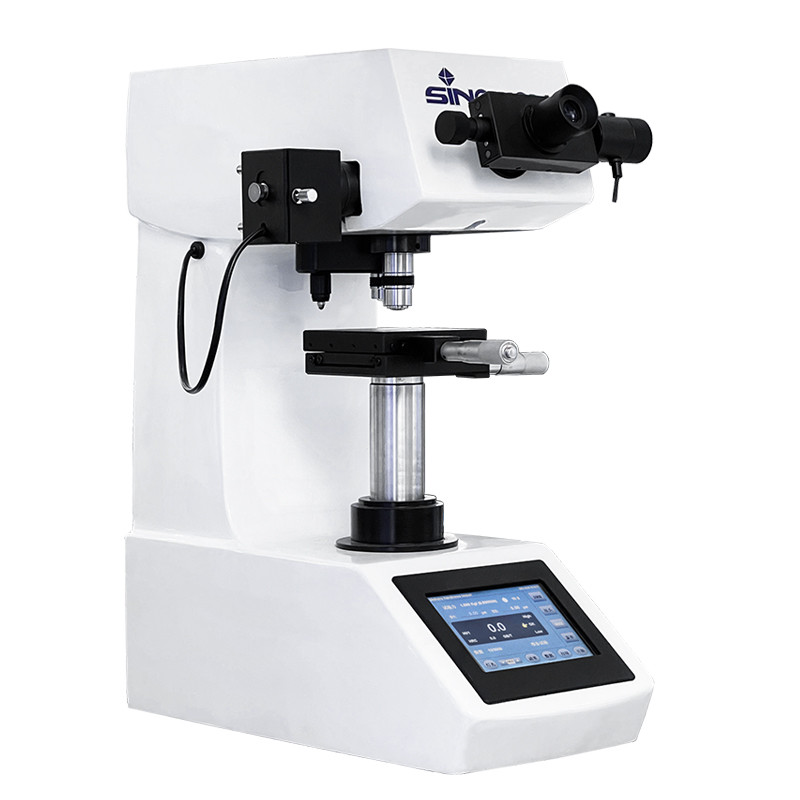

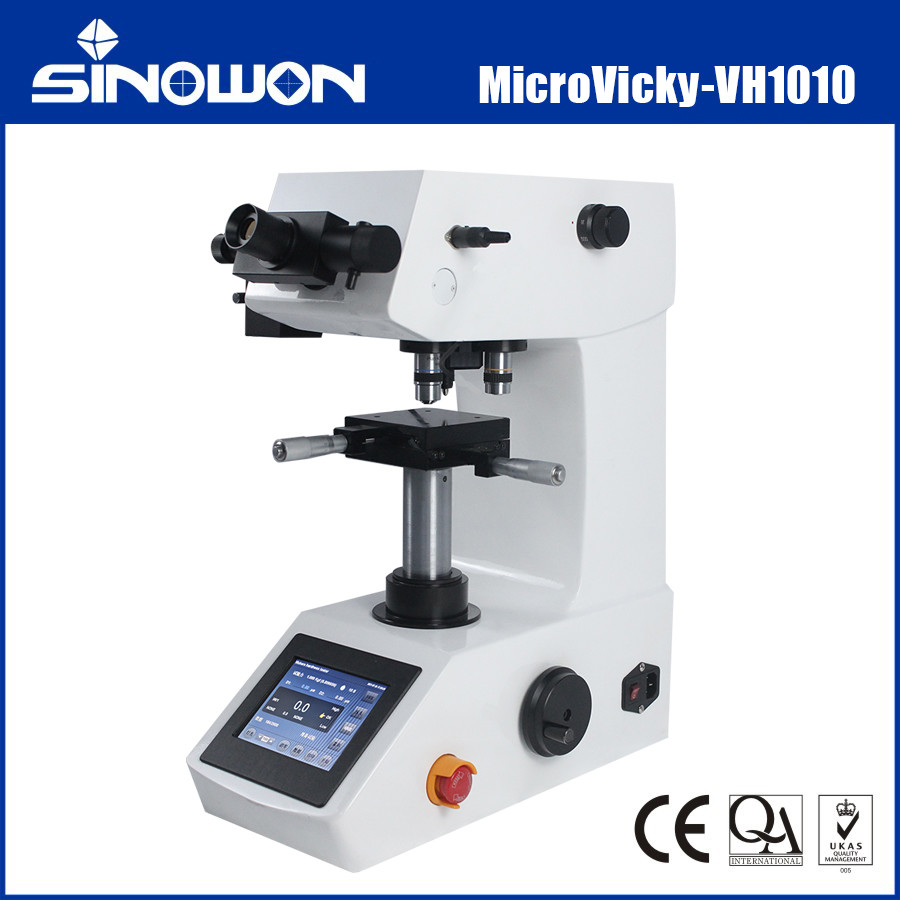

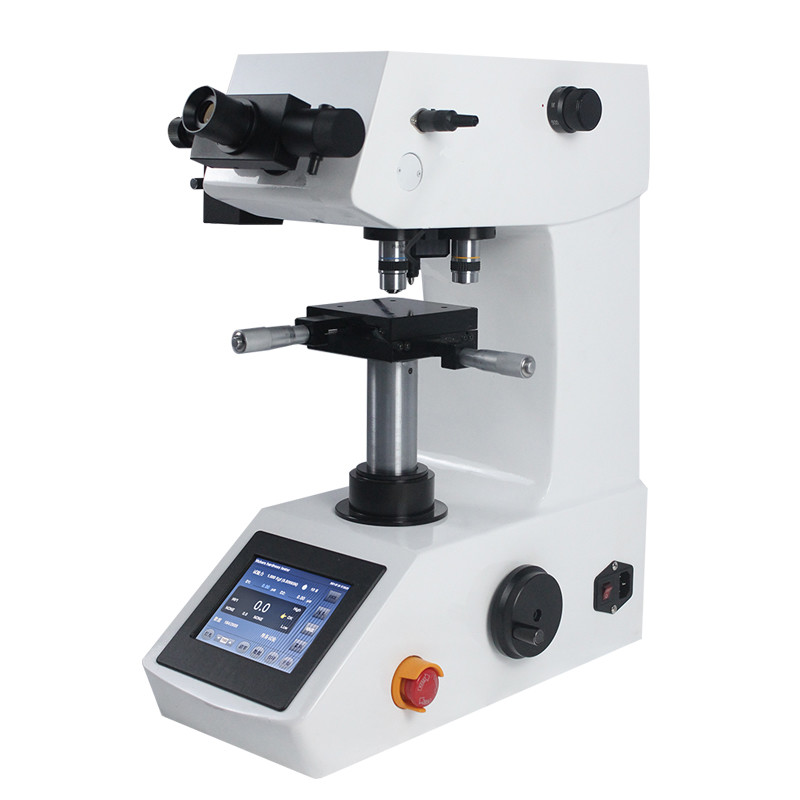

Auto Turret Digital Micro Vickers Hardness Tester MicroVicky VH1010A

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A 0

Application:

Carburized layer, ceramics, steel, non-ferrous metals, thin plates, metal flakes, electroplated layers, small specimens.
Gradient measurement of nitride layer, forest carbon layer and quench hardened layer.

Characteristics:

l Color touch screen. Auto hardness conversion to other scales.

l Gradient test can be performed, and the depth of hardened layer can be automatically calculated.

l With data viewing functions, data can be printed via Bluetooth.

l Automatic loading, dwelling, and unloading during the testing process, simple operation, no human operating error.

l Upgraded manual lifting system on the side of the worm gear, and the screw has no gap.

l Upgraded optical system with clear image of indentation, and improve the accuracy of the measurement.

Specification:

Commodity		Digital Micro Vickers Hardness Tester
Model		MicroVicky VM1010	MicroVicky VM1010A	MicroVicky VH1010	MicroVicky VH1010A
Code#		823-102	823-102A	823-162	823-162A
Numerical input method		Manual	Manual	Auto	Auto
Lens and Indenter Switch		Manual Turret	Auto Turret	Manual Turret	Auto Turret
Loading Force	N	0.098,0.246,0.49,0.98,1.96,2.94,4.90,9.80
	gf	10,25,50,100,200,300,500,1000
Dwell Time		1~60 adjustable
Loading Control		Automatic
Magnification		100x/40x(500x customizable)
Minimum measurement unit		0.025 μm
Analogue X-Y Anvil		Size:100x100mm； Travel:25mmx25mm
Max. Height of Specimen		90mm
Instrument Throat		120mm
Dimension(LxWxH)		425x245x530mm
Packing Dimension		500x490x720mm
Net weight		55Kg
Gross Weight		70Kg
Power Supply		AC220V,50/60HZ
Execution Standard		ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A 1

Automatic Micro Hardness Tester Digital Vickers Hardness Tester MicroVicky VH1010A 2
