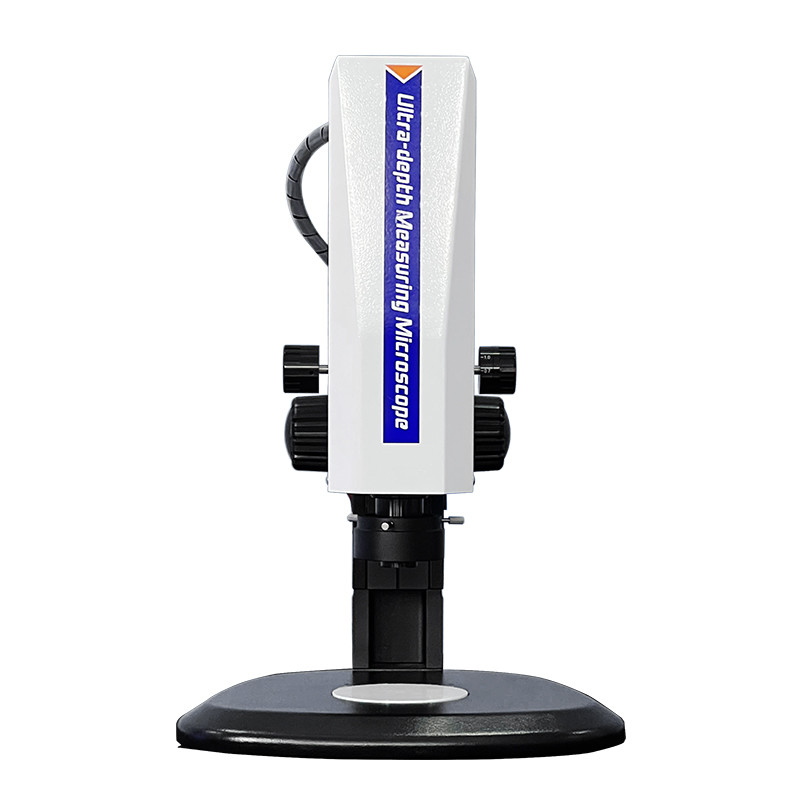

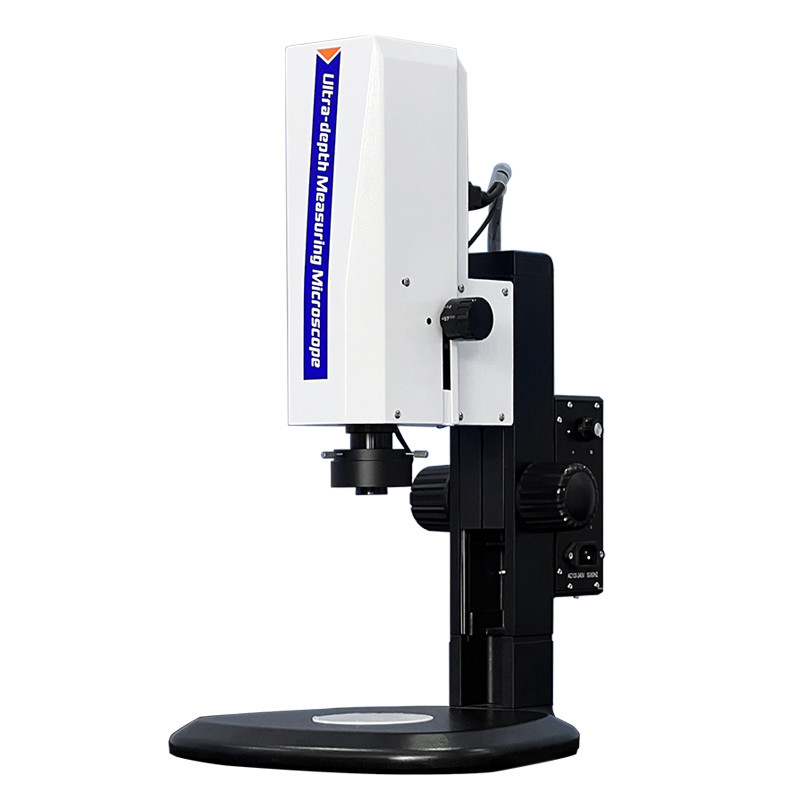

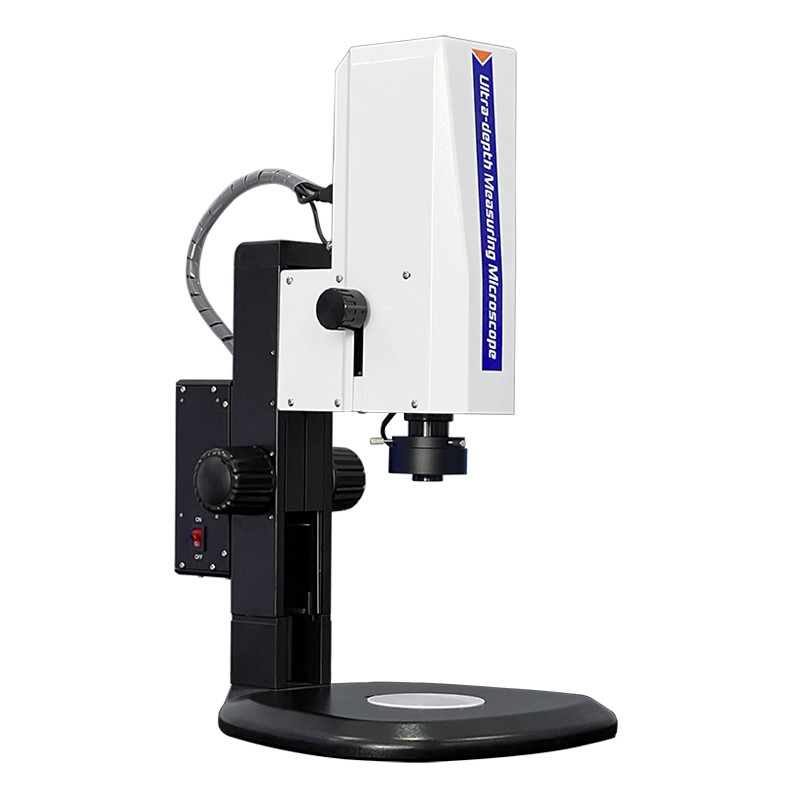

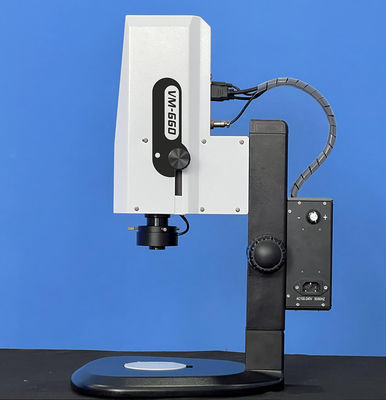

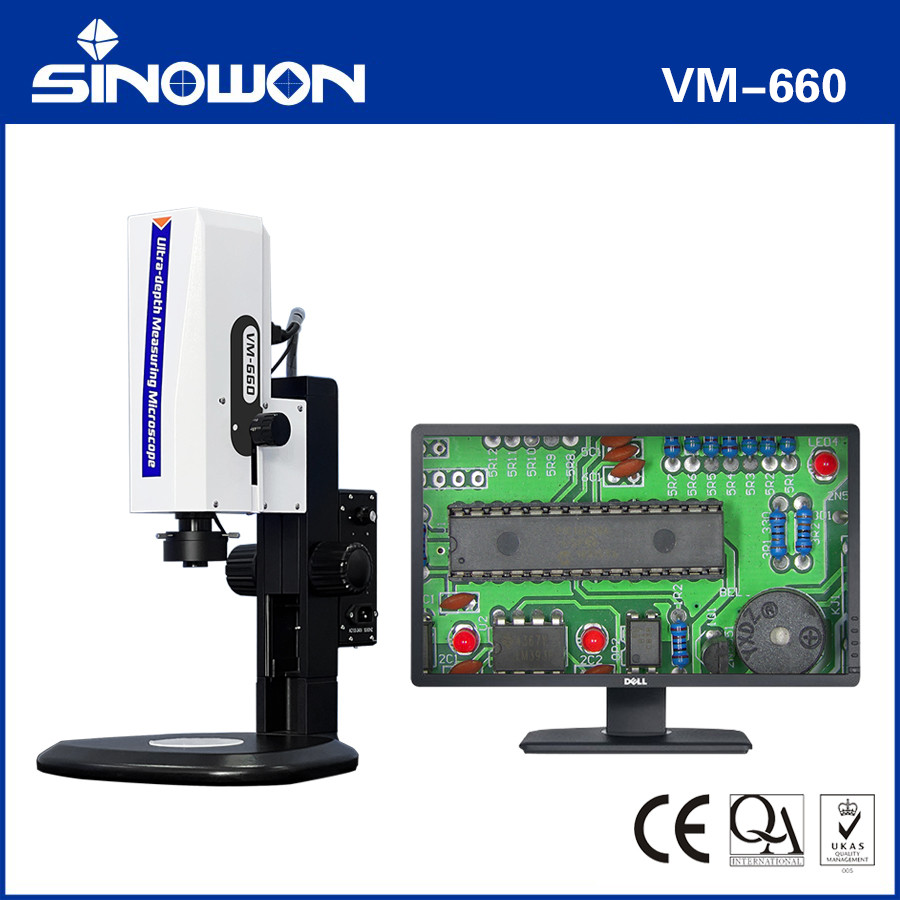

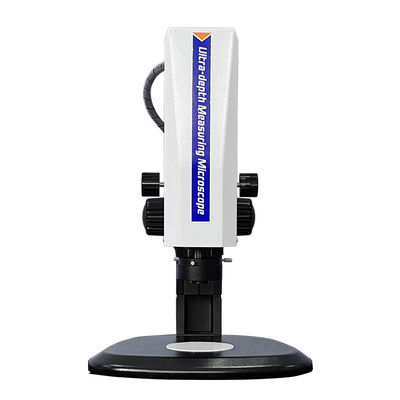

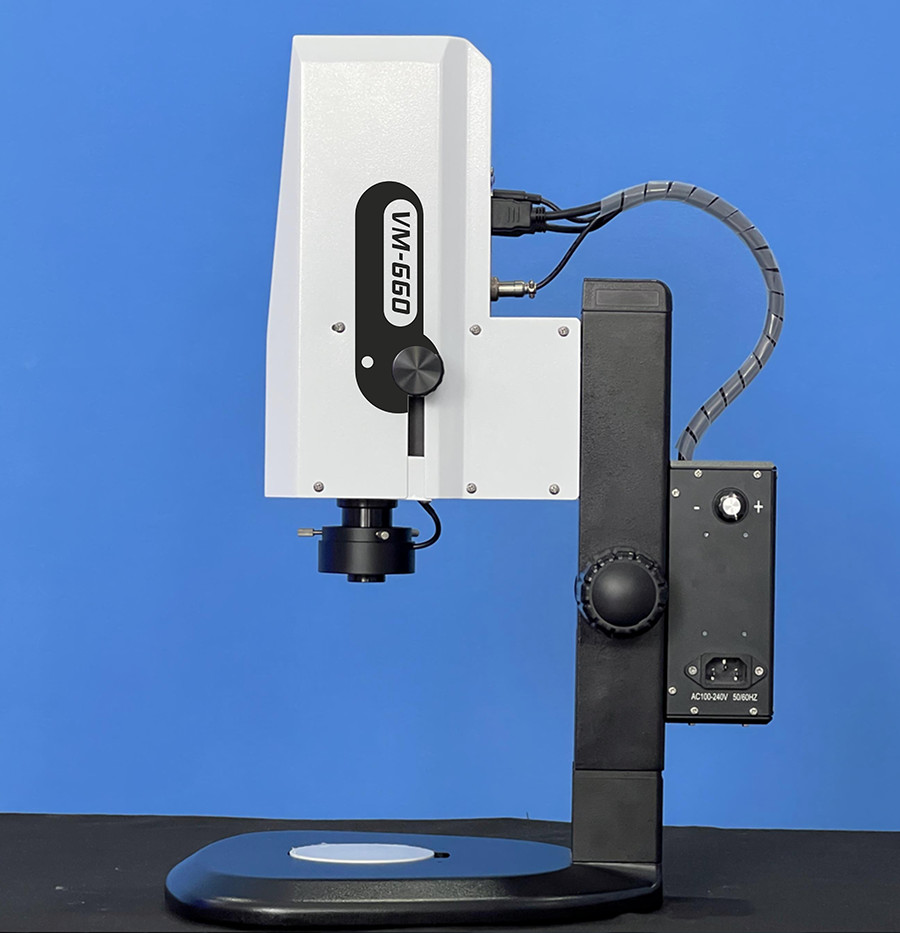

Ultra-depth Fusion Measuring Microscope VM-660
Application field:
Product inspection, material inspection and research, PCB and SMT inspection and analysis, printing, textile inspection, biological anatomy, medical testing, and other fields.
Characteristic:
l Integral design, exquisite, fashion, generous;
l Built-in high-definition HDMI integrated camera, directly connected to HDMI monitor for inspection
l With high definition 0.7~4.5X parallel detent zoom lens, it is much more convenience and fast to switch objective magnification;
l With adjustable LED surface reflection illumination, can control brightness independently;
l With 1/2’’ 2Mpixel high-definition, high-frame industrial camera, making the image clearer;
l With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.
l Multiple optional mobile control platform, ensure precision position measurement.
Technical Specification:
| Commodity |
Ultra-depth Fusion Measuring Microscope |
| Model |
VM-660 |
| Code# |
451-660 |
| Electronic Magnification |
25X~150X
( HDMI 16:9 21.5” LCD Monitor)
(Available Customize 5X~3000X)
|
| Optical System |
0.7X~4.5X Zoom Lens |
| Zoom ratio:6.5:1 |
| 0.5X C-mount camera adapter mirror |
| Camera Parameters |
2MPixel(1920*1080) |
| Image Size:1/2” |
| Frames:1080P@60fps |
| Measuring Function |
Linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements are measured |
| Date Saving |
Image with measuring result or EXCEL file |
| Measuring Method |
Mouse operation, intelligent point selection/manual point selection |
| Measurement Accuracy |
0.02mm~0.003mm |
| Illumination |
Adjustable LED Surface Illumination |
| Microscope Stand |
Z-axis Travel: 100mm |
| Electrical Parameters |
AC90~240V/50~60HZ |
| Dimension |
375*285*500 mm |
| Net Weight |
6.5Kg |
Image Performance
A: Watch Gem Inspection

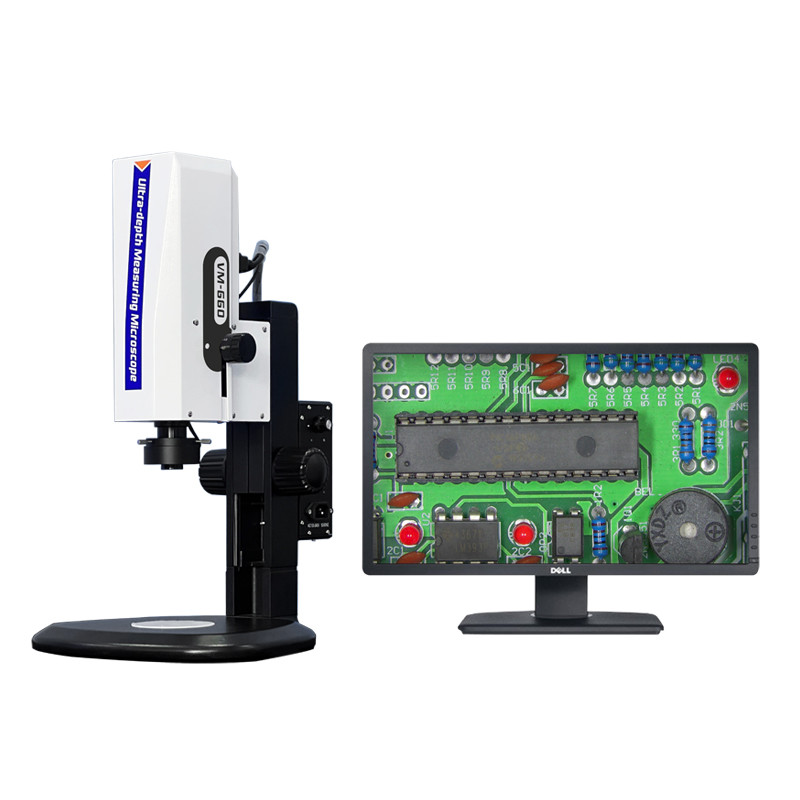

B: PCB Solder Inspection
Measurement Function Introduction:
VM-660 can measure straight lines, angles, concentric circles, parallel lines, point-to-line distance, point and line to concentric circles, diameter, circumference and area, length and width of rectangle, and can calculate circumference and area. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to flash memory disk.
Field of View:
Magnification Specification:
| Optical Magnification |
Video Magnification |
X(mm) |
Y(mm) |
D(mm) |
| 0.7X/2 |
25X |
18.28 |
13.72 |
22.86 |
| 1X/2 |
35X |
12.8 |
9.6 |
16 |
| 2X/2 |
70X |
6.4 |
4.8 |
8 |
| 3X/2 |
105X |
4.26 |
3.2 |
5.34 |
| 4X/2 |
140X |
3.2 |
2.4 |
4 |
| 4.5X/2 |
150X |
2.84 |
2.14 |
3.56 |
Optional Accessories:
