Name: Inverted Metallurgy Microscope
Brand: Hoyamo and Sinowon Inc
SKU: IMS-370
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 431-175

Mechanical Stage: Stage Size: 210 Mm×180mm, Moving Range:50×50mm , Scale : 0.1mm

Nosepiece: Quintuple

Eyepiece: WF10×／22mm（adjustable）

Interpupilary Distance: 48-76mm

Highlight:

Inverted Metallurgy Microscope

Quintuple Nosepiece Metallurgy Microscope

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SINOWON

Certification: CE

Model Number: IMS-370

Document: D4 Sinowon IMS-370 Inverted...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

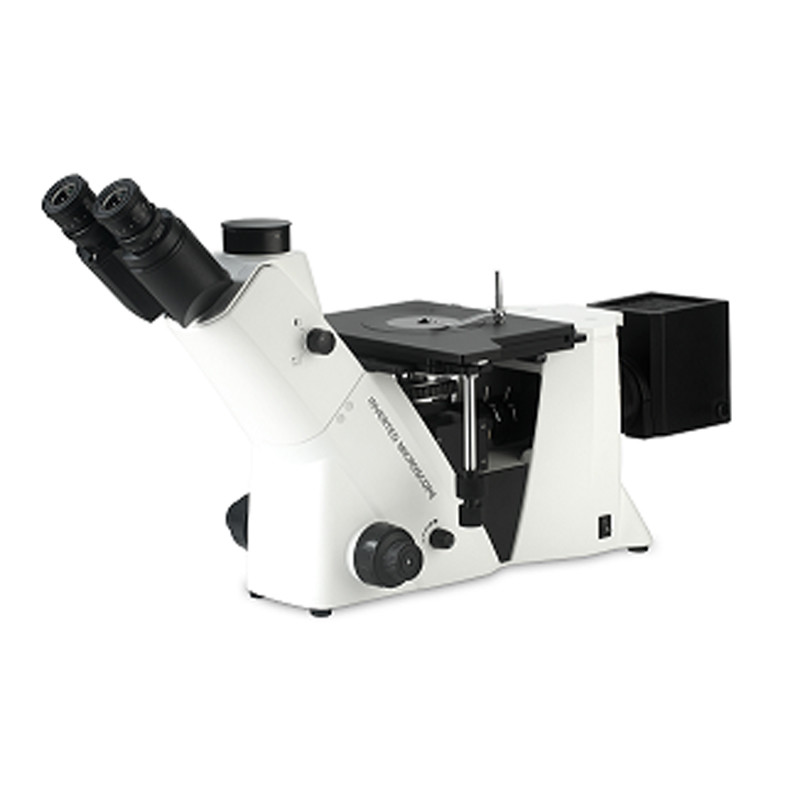

Inverted Metallurgy Microscope

Product Description

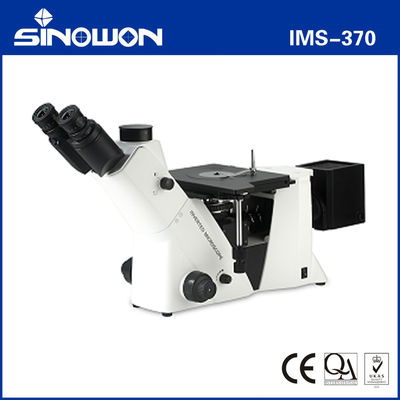

Inverted Metallurgical Microscope IMS-370

Inverted Metallurgy Microscope 0

Product Introduction:

● New research and new development

● Combination with bight field, dark field, polarizing observation etc. Widely used in metal, mineral, electronic field.

● Dark field objective,Make observation in dark & bright field.

● Oversize view field eyepiece, view field up to 22mm for comfortable observation.

● Oversized three-layer working stage, more choice for samples.

Technical Specifications:

Item	Specification		IMS-370	IMS-370D
Eyepiece	WF10×／22mm(adjustable)		●	●
Eyepiece	WF10×／22mm(adjustable,reticule 0.1mm)		●	●
Metallurgical LWD Infinity Plan Objectives	LPL 5×／0.13	W.D=16.04mm	●	○
	LPL 10×／0.25	W.D.= 18.48mm	●	○
	LPL 20×／0.40	W.D.= 8.35mm	●	○
	LPL 50×／0.70	W.D.= 1.95mm	●	○
	LPL 80×／0.80	W.D.= 0.85mm	○	○
	LPL 100×／0.90(Dry)	W.D.= 1.10mm	○	○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×／0.13 BD	W.D=16.04mm		●
	M PLAN 10×／0.25 BD	W.D.= 18.48mm		●
	M PLAN 20×／0.40 BD	W.D.= 8.35mm		●
	M PLAN 50×／0.70 BD	W.D.= 1.95mm		●
Seidentopf Trinocular Head	Inclined 30°, interpupilary distance: 48-76mm Light distribution (both):100: 0(100% for eyepiece) 80:20(80% for trinocular head, and 20% for eyepiece)		●	●
Nosepiece	Quintuple		●
Nosepiece	Quadplex (specially for bright /dark field objectives)			●
Mechanical Stage	Stage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm		●	●
Coaxial Coarse and Fine Focusing unit	Coarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2 μm.		●	●
Polarizing Unit	Polarizer /Analyzer		●	●
llumination	12V/50W Halogen(Input voltage:100V～240V)		●	●
	5WLED lamp (Input voltage:100V～240V)		c
	10WLED lamp Dc input (universal voltage: 100V~240V)			○
Auto power on-off system	Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching		○	○
Filter	Blue		●	●
Filter	Green/ Amber/ Grey		○	○
C-mount	1×/0.75×/0.5×C-Mount (focus adjustable)		○	○
Adaptor for Digital Photograph	Use for CANON／NIKON／OLYMPUS etc.		○	○

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 660mm×590mm×325mm Gross Weight: 17 kgs Net Weight: 12.5 kgs

Technical Parameters of objective lens

	Objective	N.A.	Working Distance (mm)	IMS-370	IMS-370D
Metallurgical LWD Infinity Plan Objectives	LPL 5×	0.13	16.04	●
	LPL 10×	0.25	18.48	●
	LPL 20×	0.40	8.35	●
	LPL 50×	0.70	1.95	●
	LPL 80×	0.80	0.85	○
	LPL100×(Dry)	0.90	1.10	○
Metallurgical LWD Infinity Plan Objectives for Bright/Dark Field	M PLAN 5× BD	0.13	16.04		●
	M PLAN 10× BD	0.25	18.48		●
	M PLAN 20× BD	0.40	8.35		●
	M PLAN 50× BD	0.70	1.95		●

Objective specification: ( "●" Is Standard outfits, "○" Is Optional Accessories.)
