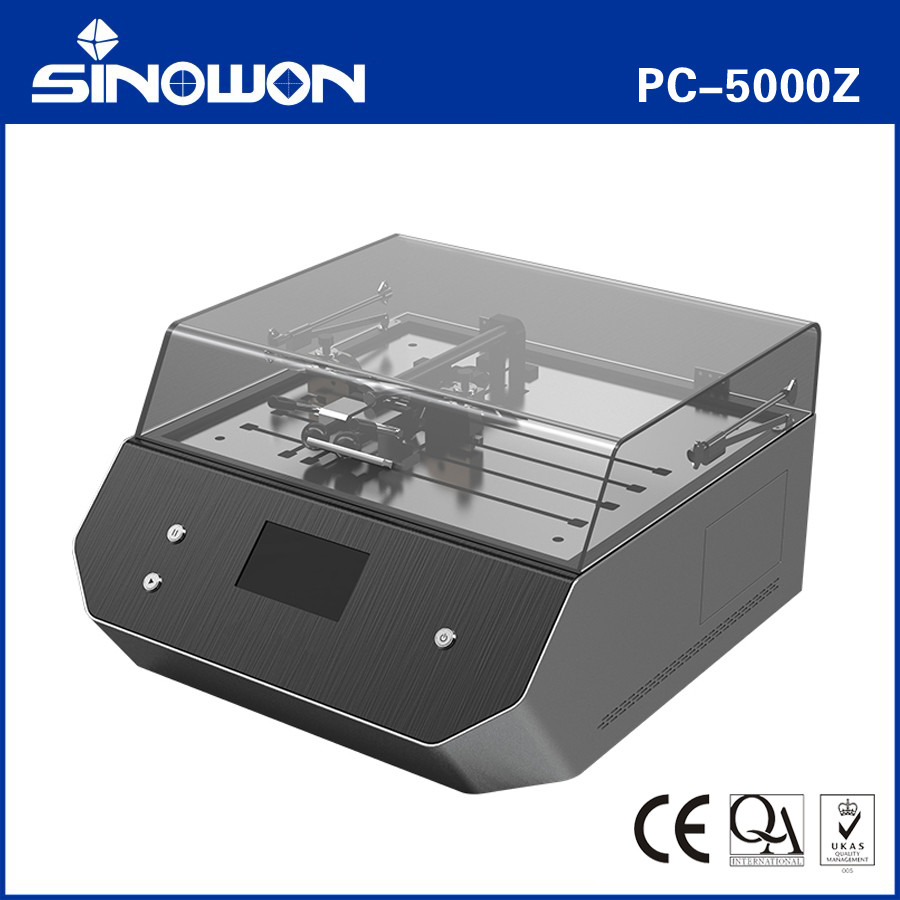

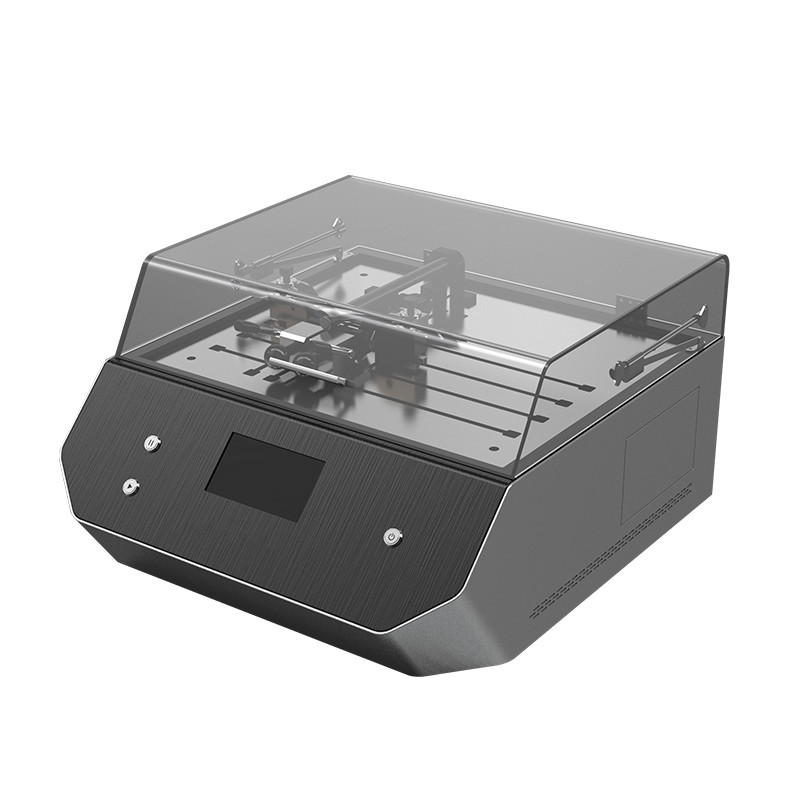

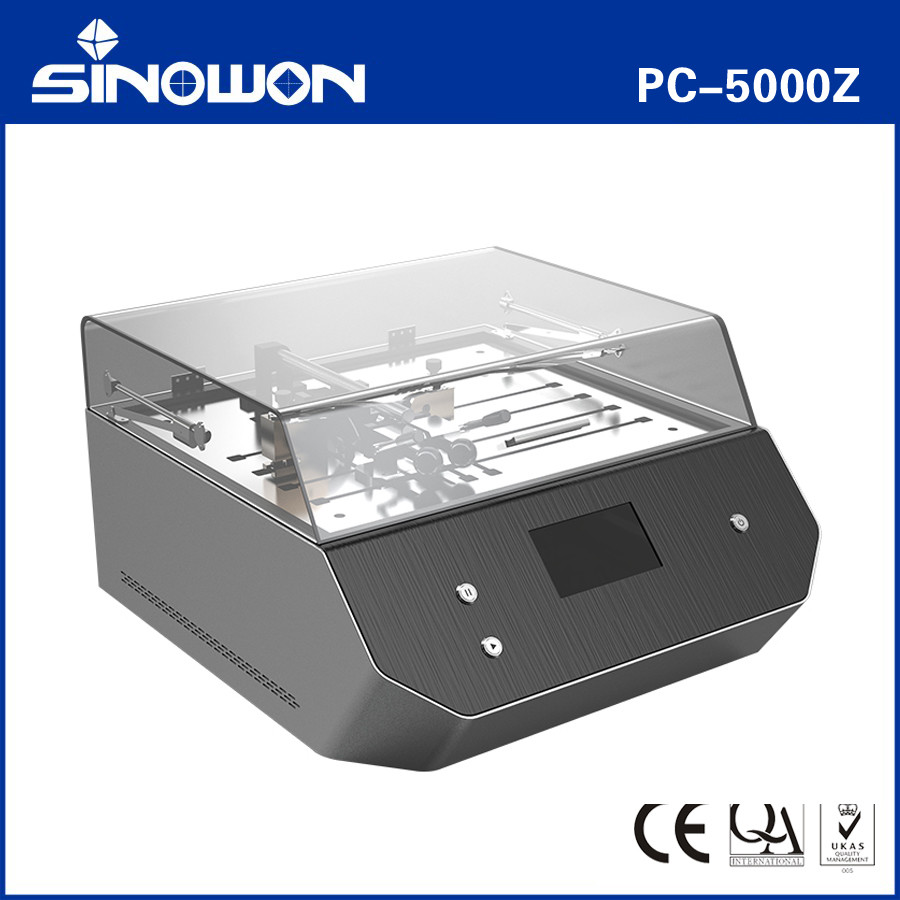

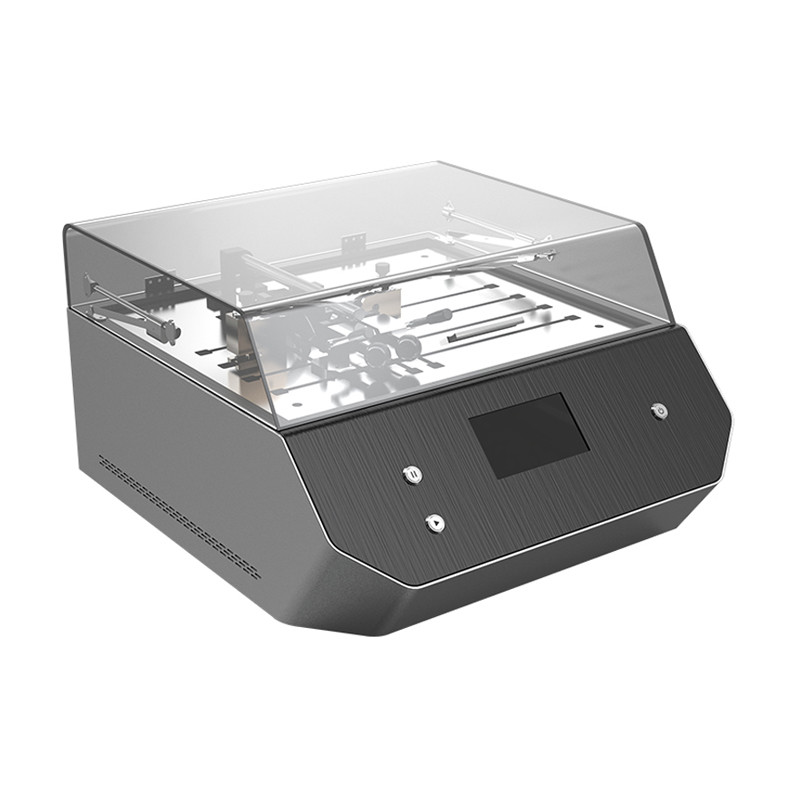

Automatic Precision Cutting Machine PC-5000Z

Automatic Precision Cutting Machine PC-5000Z

Introduction:

PC-5000Z metallographic precision flatbed cutting machine is desktop type. With industrial PLC control system , Y-axis travel 330mm , maximum cutting thickness 40mm , spindle speed 50~5000r/min , 1kW , circulating water cooling , diamond saw blade Φ200*32*1.0mm is suitable for cutting semiconductors, crystals, circuit boards, notebooks , computers , fasteners, metal materials, rocks and ceramics and other samples.

The whole machine body is smooth, spacious and generous, providing a good working platform. And it adopts high-torque high-power servo motor and stepless speed control system, which has high and stable working efficiency. Good visibility and cutting ability minimize the difficulty of operation and are easy to use. In addition, the machine is suitable for a variety of different fixtures (standard quick fixture , optional vertical fixture ), can cut irregular-shaped workpieces, and is a high-quality precision cutting machine suitable for scientific research institutions and enterprises.

Technical Specifications:
