1000W Power Precision Metallurgical Cutting Machine PC-5000B With 500-5000rpm Grinding Wheel Speed

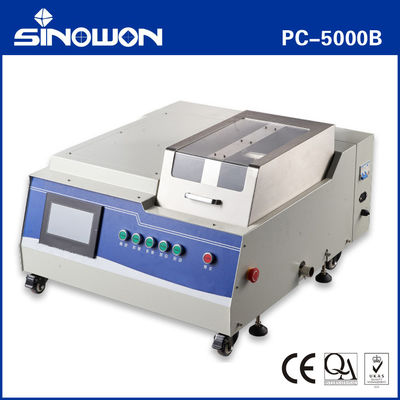

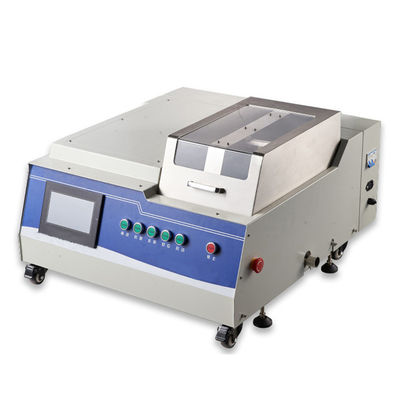

Precision Cutting Machine PC-5000B

Introduction:

PC-5000B precision cutting machine is suitable for precise deformation-free cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, mineral samples, concrete, organic materials, biological materials (teeth, bones) and other materials.

The equipment has high positioning accuracy, wide speed adjustment range, strong cutting capacity, strong circulation cooling system, preset feed speed, touch screen control display, easy operation and control; automatic cutting can reduce operator fatigue and ensure the consistency of sample production; large and bright cutting room with safety switch. The upper and lower distances of the grinding wheel can be adjusted to facilitate cutting after the grinding wheel is worn. It is one of the ideal equipment for industrial and mining enterprises and scientific research institutes to prepare high-quality samples.

The main technical parameters:

1. Feed speed : 0.01-3.00mm/s (adjustment step is 0.01)

2. Grinding wheel speed : 500-5000rpm

3. Maximum travel : Y axis 200mm

4. Cutting disc size : 200×32×1.0mm

5. Cutting power : 1000W

6. Power supply : 220V 50Hz

7. Overall dimensions : 820*770*490mm (length×width×height)

8. Packing size : 900*950*550mm (length×width×height )

9. Net weight : 143.5kg
