Name: PLC Control Climate Testing Chambers Weather Resistance Test Chamber SSC-1300
Brand: Hoyamo and Sinowon Inc
SKU: SSC-1300
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 221-261

Studio Dimensions: 1100*1100*1100mm

Exterior Dimensions: 1300*1400*2050mm

Use Light Source: SUNSHINE CARBON-ARC

Test Time Per Cycle: 60 Hours, 4 Groups Of Carbon Rods Are Used Each Time

Highlight:

PLC Control Climate Testing Chambers

Climate Testing Chambers Weather Resistance

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SQP

Certification: CE

Model Number: SSC-1300

Document: Sinowon SSC-1300 Carbon arc...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 30 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

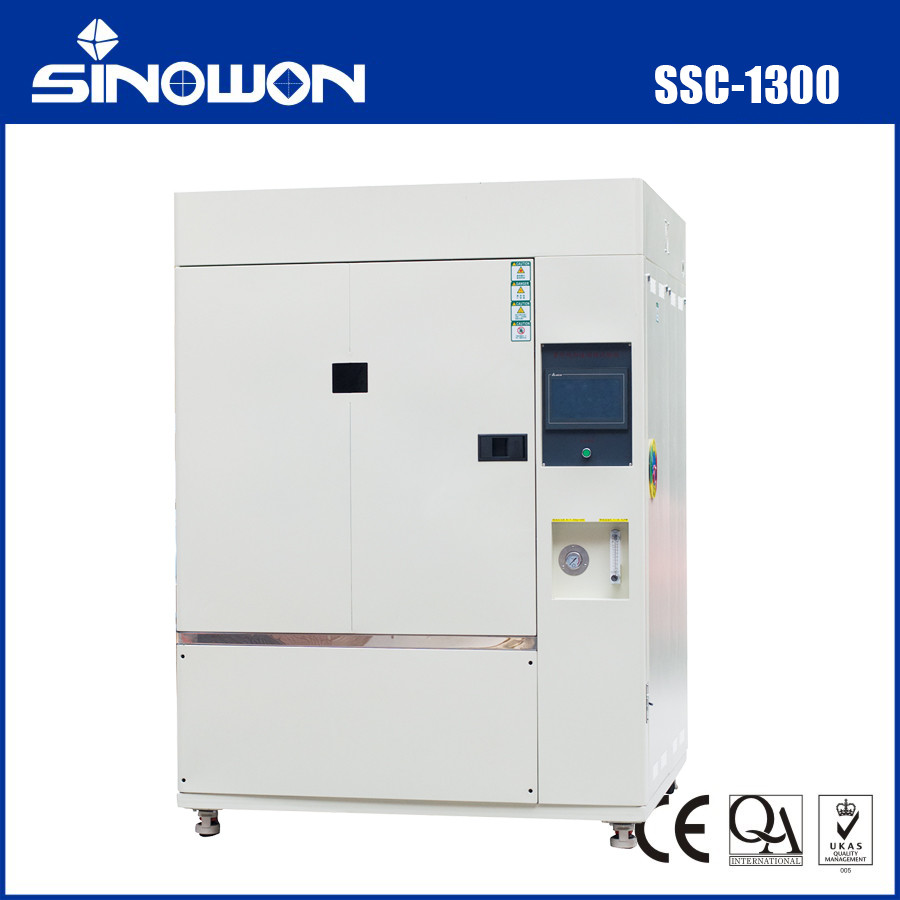

PLC Control Climate Testing Chambers Weather Resistance Test Chamber SSC-1300

Product Description

Ventilation Aging Test Chamber SHQ Series

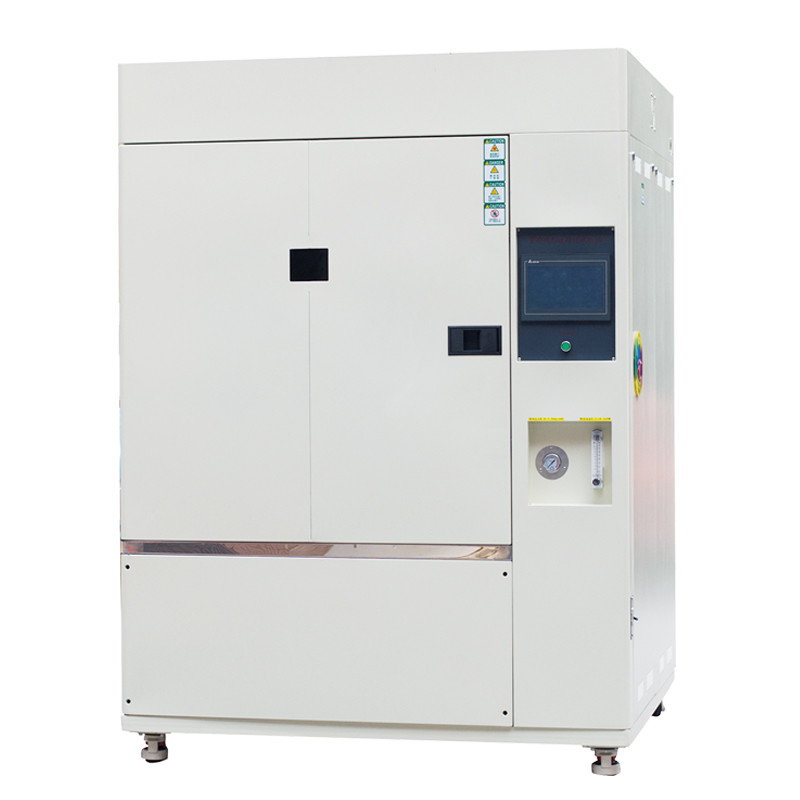

PLC Control Climate Testing Chambers Weather Resistance Test Chamber SSC-1300 0

Product Introduction:

The weather resistance test chamber for carbon arc lamps mainly uses solar-type carbon arc lamps as the light source. By changing the temperature (sample temperature, working chamber temperature), relative humidity, rainfall, etc., it simulates the comprehensive combination of light, heat, and water conditions of outdoor climate test chambers, and conducts artificial aging tests on the photochemical and mechanical properties of the tested materials.

Product Characteristic:

Using PLC touch screen controller, the control is stable, and the main control parameters are light irradiance, working chamber temperature, sample rack temperature, and relative humidity, which can be automatically controlled by closed loop.

Specifications:

Commodity	Carbon arc Lamp Weather Resistance Test Chamber
Model	SSC-1300
Code#	221-261
Studio Dimensions(WDH)	110011001100mm
Exterior Dimensions (WDH)	130014002050mm(The actual product shall prevail!)
Use light source	SUNSHINE CARBON-ARC
Test time per cycle	60 hours, 4 groups of carbon rods are used each time

Temperature and humidity range: subject to the Black panel temperature
Temperature Range	40~70℃, black disk thermometer is 63±3℃ or 83±3℃
Humidity Range	When the temperature of the black disk thermometer is 63±3℃, the humidity is 50±5%.
Environmental Conditions	Room temperature: 25±3℃, relative humidity: 65±20%
Temperature control method	Electric control gate, automatic adjustment of intake and exhaust, balanced control of temperature.
Wet control mode	The immersion type electric heater produces water vapor and controls the humidity balance.
Simulation of rainfall water spray cycle control	Spray time can be set
	Spray for 18 minutes every 120 minutes (general type, rainfall cycle)
	Spray for 12 minutes every 60 minutes (rainy type, rainfall cycle)
	No spray (dry type, rainfall cycle)
Spray water volume	The total water volume of the nozzle at the spray pressure of 1.0kgf/cm2 is 2.10 ± 0.10L/min
Customer water supply	10E1 water pressure 1.5~3.0kgf/cm2
Water Quality	PH6.0~8.0, use hard water softening or pure water device when necessary
Structure and material	The test tank is made of stainless steel plate SUS304#, and the outer shell is made of steel plate painted
	The test tank door is equipped with an ultraviolet protection window
	The insulation layer is made of heat-resistant PU foam
Rainfall cycle time control	Power failure memory device (0-999min) with flow control: two-stage pressure regulation, pressure gauge and flowmeter (0-3.01/min)
