Name: High Precision 3D Coordinate Measuring Machines Haquina443
Brand: Hoyamo and Sinowon Inc
SKU: Haquina443
Availability: InStock

High Precision 3D Coordinate Measuring Machines Haquina443

1 Sets

MOQ

Can be discussed

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 528-210

Working Travel (mm): 400*400*300

Scale Resolution: 0.5um

Max Load Capacity: 80Kg

Dimension (mm): 1179*840*1714mm

Net Weight: 300Kg

Highlight:

High Precision Coordinate Measuring Machines

3D Coordinate Measuring Machines

Basic Infomation

Place of Origin: Jiangmen, China

Brand Name: SINOWON

Certification: CE

Model Number: Haquina443

Document: D4 Sinowon Haquina443 Coord...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 30 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

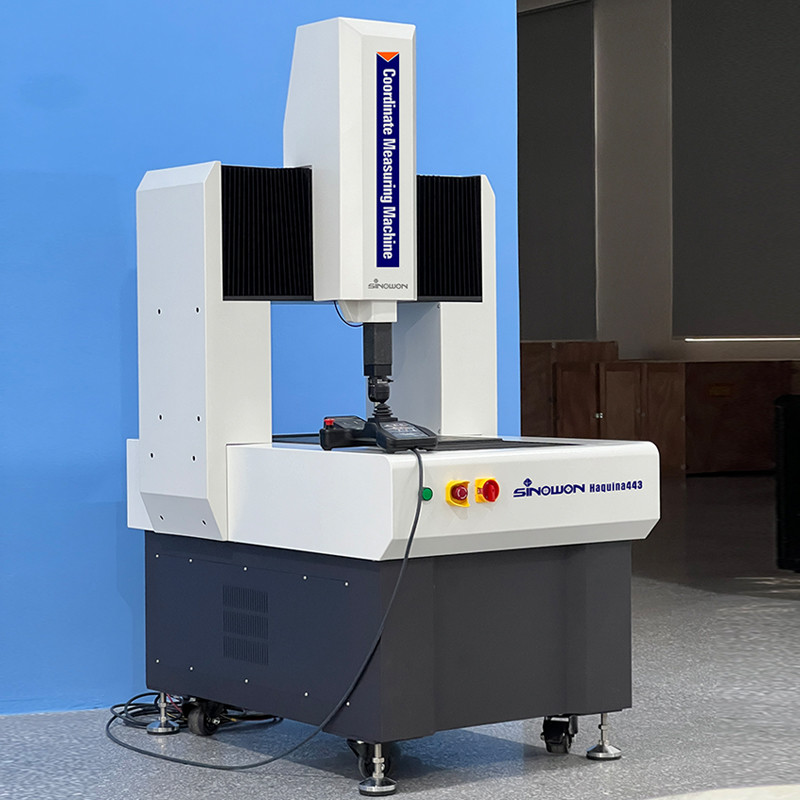

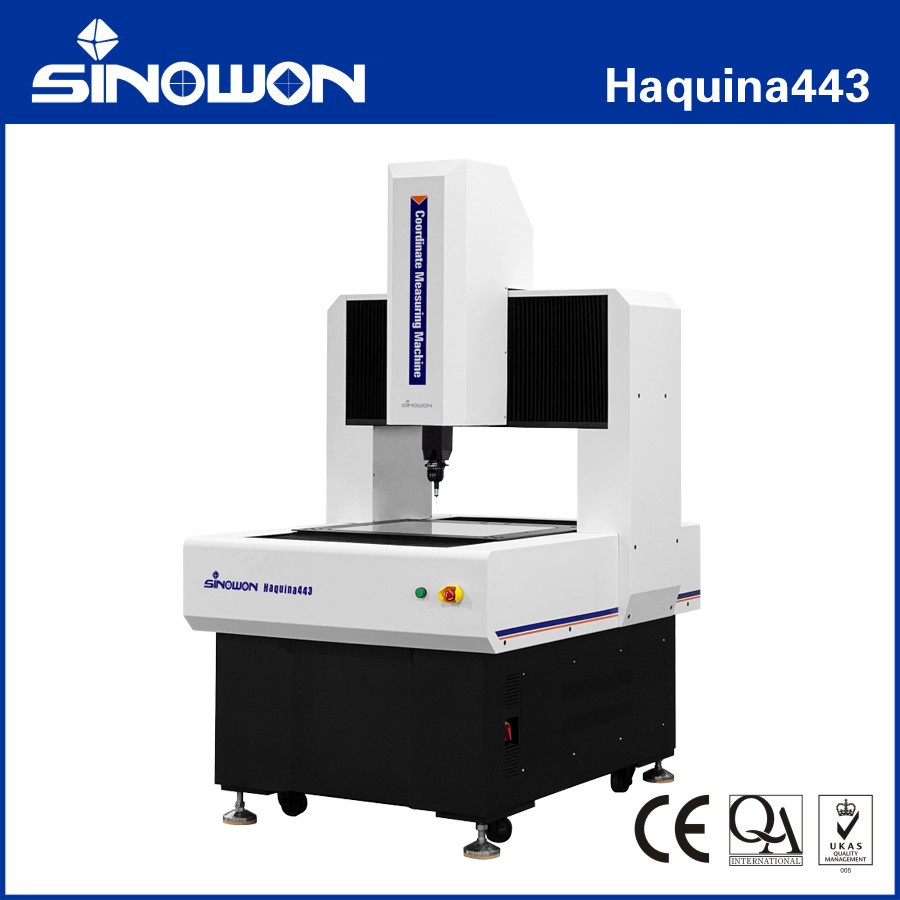

High Precision 3D Coordinate Measuring Machines Haquina443

Product Description

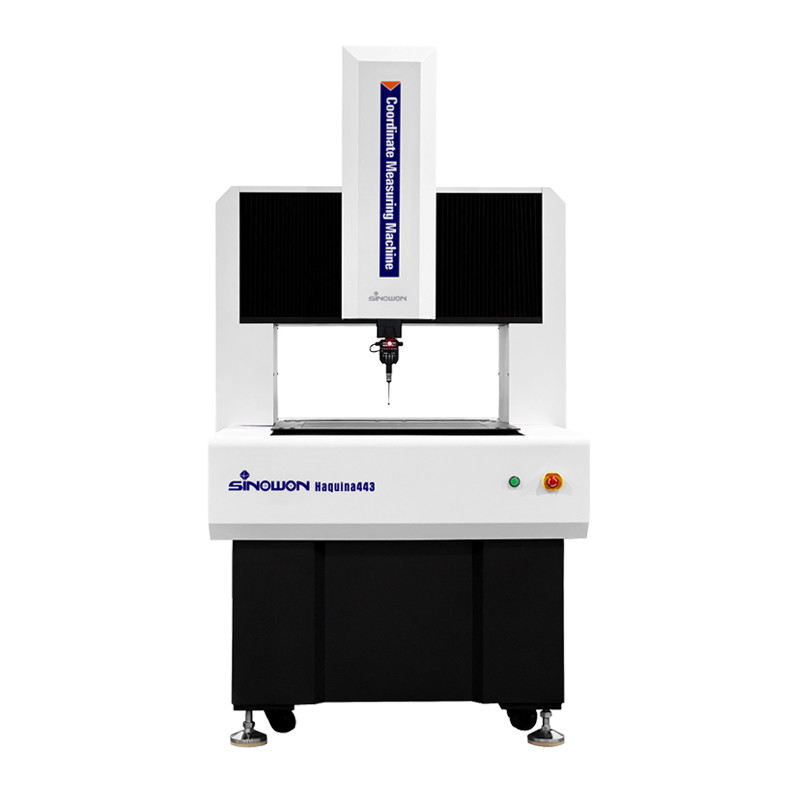

Coordinate Measuring Machine Haquina443

Product Characteristic:

● Grade 00 marble gantry mobile structure, to ensure the stability of the machine;

● High-precision P class (special) three-axis guide rail, to ensure the high precision of the reference, with effective deformation resistance and good rigidity, dynamic geometric error deformation minimum;

● Mute screw drive device, improve the stability of three shafts;

● Closed-Loop Control System and Haquinasoft measurement software, which made it a cost-effective product in its class to meet your needs and provide you with a complete measurement solution.

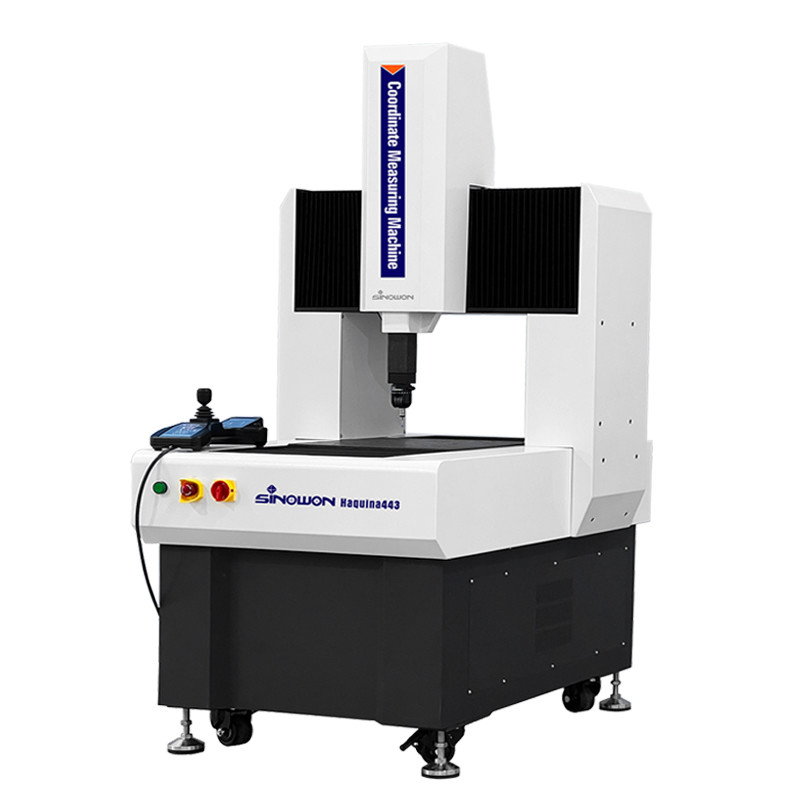

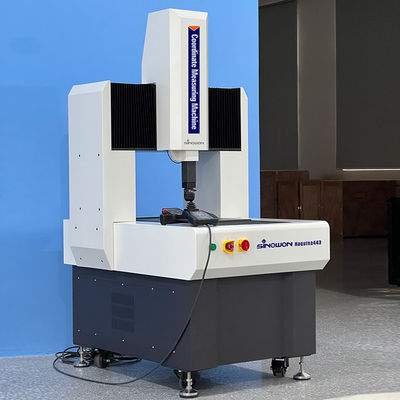

High Precision 3D Coordinate Measuring Machines Haquina443 1

High Precision 3D Coordinate Measuring Machines Haquina443 2

Technical Specification:

Commodity	Coordinate Measuring Machine
Model	Haquina443
Code#	528-210
Working Travel (mm)	400400300
Motor	DC Servo Motor
Control System	Renishaw UCC Close-Loop Control System
Scale Resolution	0.5mm
Maximum Permissible Error of Indication(MPE_E)	3.5+1L/200mm
Maximum Permissible Probing Error (MPE_P⁾	3.5mm
3D positioning speed(mm/s)	500
3D Positioning acceleration(mm/s²)	1000
Max Load Capacity	80Kg

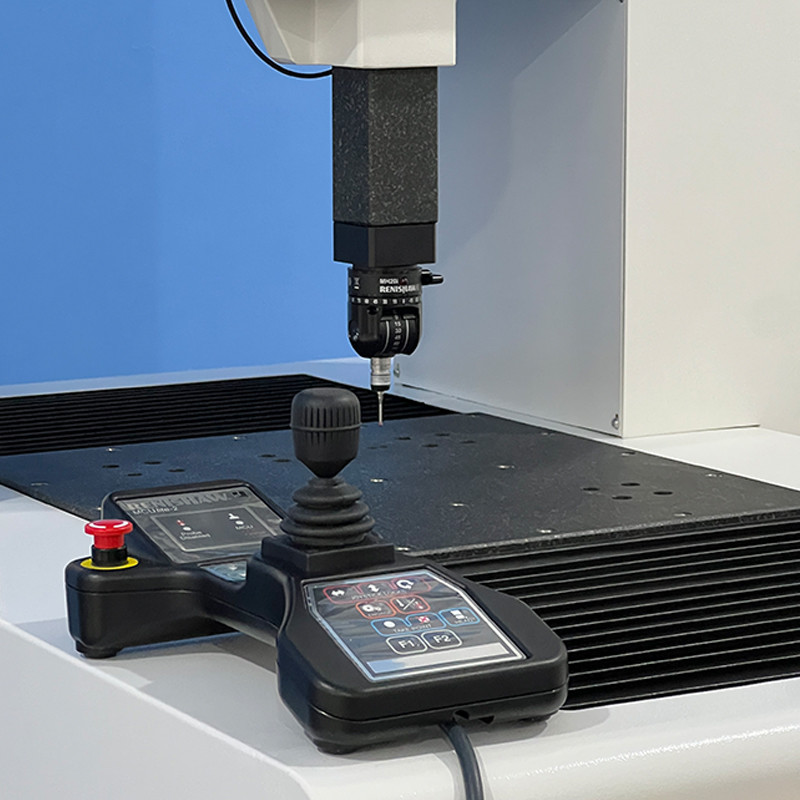

Probe System	Renishaw MH20I
Computer System	WIN10 System
Measuring Software	Haquinasoft
Working Environment	Temperature:20+2℃,Relative humidity:40%-70%
Dimension (mm)	11798401714
Net Weight	300Kg
Gross Weight	500Kg
Power Supply	220V+10%, 50HZ-60HZ

Product Size Drawing:
