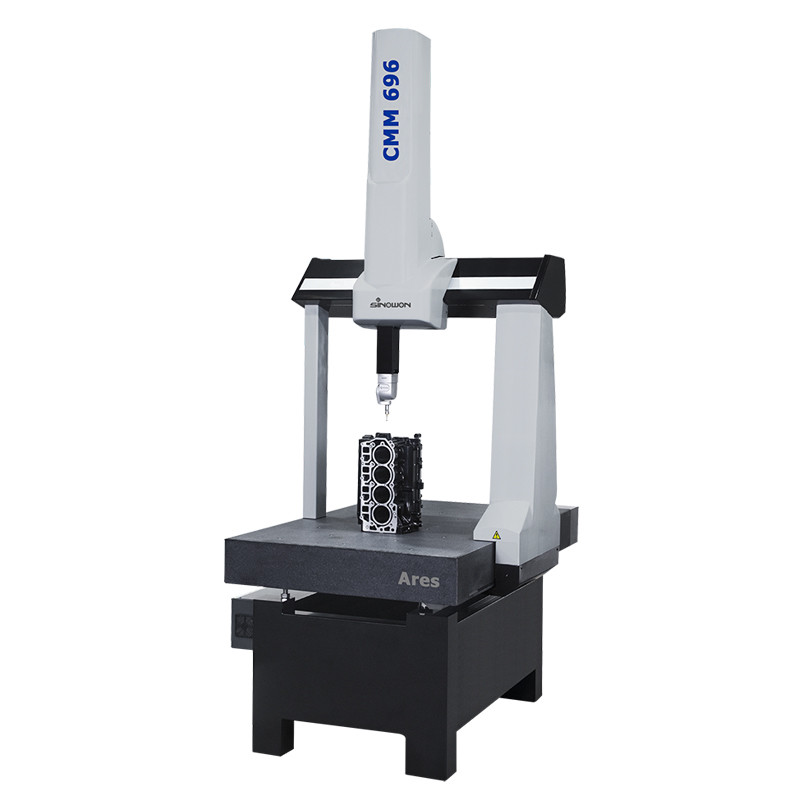

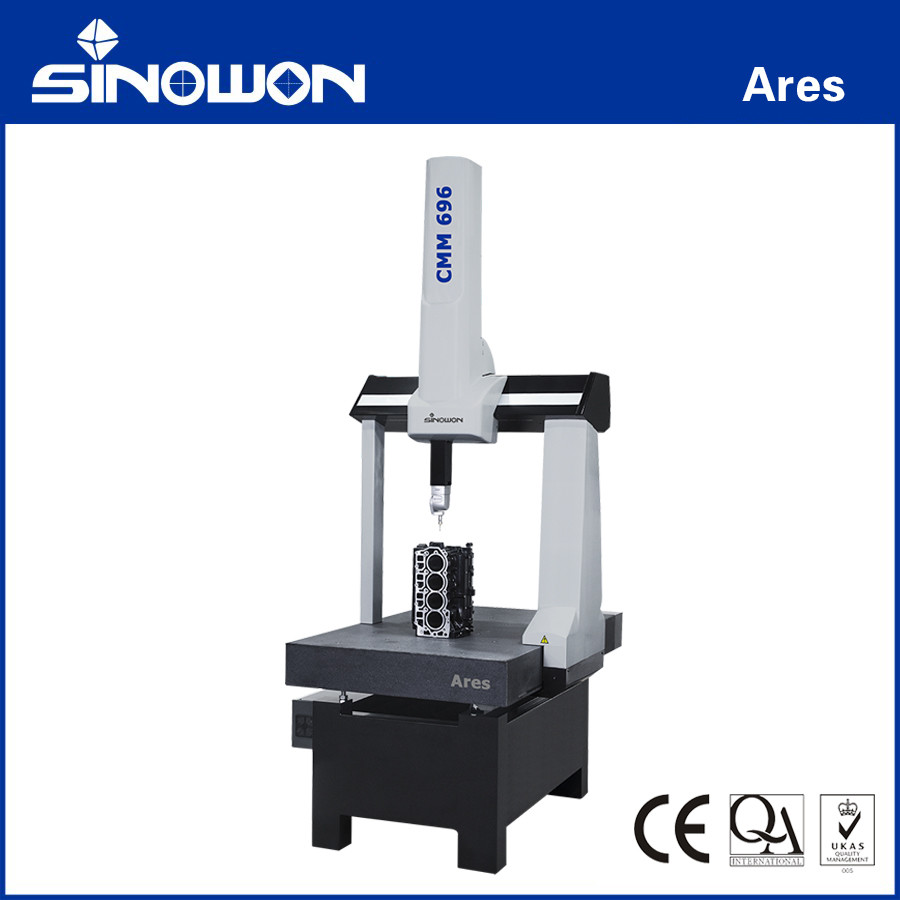

Economical Coordinate Measuring Machine Ares Series
Introduction:
The Ares main unit adopts an all-aluminum structure, and at the same time, a wide range of computer-aided design finite element analysis principles and modular design principles are applied in the design process. This makes the whole machine system have improved temperature resistance and deformation/torsion resistance, improve the stability of the spatial structure of the whole machine, and reduce the influence of structural micro-deformation, vibration and temperature gradient changes on the measurement performance. The closed-loop distributed air bearing design optimizes the mechanical movement of the measuring machine's axis. As a result, the complete system exhibits a high degree of repeatability during the measurement process and the long-term stability of the system.
Features:
l The X-direction beam adopts ultra-high rigidity precision triangular beam (Tricision ®) technology. The performance of the whole machine is improved by reducing the moving load, and it is the best structural design to ensure stability and rigidity.
l The three axis are all driven by synchronous belts, which are compact, non-slipping, fast, low noise and easy to maintain.
l Equipped with coordinate measuring software, it can meet any general shop floor inspection needs.
l We can provide professional integrated design solutions (including foundation, vibration reduction, air-conditioned room, loading and unloading, etc.).
Specification:
|
Model
|
Maximum Permissible Error MPE(μm), L(mm), (ISO10360-2) |
3D Max. Speed (mm/s) |
3D Max. Acceleration (mm/s²)
|
| HP-TMe |
HP-THDe |
| E0/E150 |
PFTU |
R0 |
E0/E150 |
PFTU |
R0 |
| Ares 696 |
2.5 + L/300 |
2.8 |
2.5 |
2.3+ L/300 |
2.6 |
2.3 |
520 |
1730 |
| Ares 8116 |
2.7+ L/300 |
2.9 |
2.7 |
2.5+ L/300 |
2.7 |
2.5 |
520 |
1730 |
|
Model
|
Range of Travel(mm) |
Dimensions(mm) |
Maximum weight of the measured workpiece (kg) |
Machine Weight (kg) |
| X |
Y |
Z |
Lx |
Ly |
Lz |
| Ares 696 |
600 |
900 |
600 |
991 |
1488 |
2610 |
300 |
730 |
| Ares 8116 |
800 |
1100 |
600 |
1191 |
1688 |
2610 |
500 |
1080 |
|
Probe configuration for performance testing:
HP-TMe/HP-THDe:Standard force measurement. The probe is 10mm long,The tip diameter is 4 mm.
Performance metrics are valid under the following conditions:
Standard ambient temperature:18 - 22°C；
Ambient temperature changes:1°C/h - 2°C/24h；
Temperature gradient:1°C/m；
Relative humidity:25% - 75%
|
Structure Diagram:
RationalDMIS2 Measuring Software:
It has obtained ANSI, ISO, GB, PTB standard certification, always synchronized with advanced standards and advanced design concepts, and fully supports the internationally popular I++ control protocol.It has a user-friendly and simple software interface, unique drag-and-drop quick operation, and seamless connection with CAD data. 100% graphical visualization from measurement to output report, which provides a complete measurement solution for enterprises.
Rational DMIS software integrates CAD, thin-walled, and scanning modules to meet the growing measurement needs of our customers.
Features of Rational DMIS:
l Supports IGES, STEP, DXF, STL, XYZ and other formats;
l Supports CATIA, UG, PRO-E, Solidworks, Parasolid direct reading interface;
l Intelligent Detection: real-time simulation of the detection path, automatic optimisation of the detection path;
l Complete and fast tolerance calculation: in line with GB, ISO, Y14.5, ANSI, DIN, AGMA and other standards;
l Diverse report output; Support HTML, Excel, PDF, OUT, TXT format;
l Abundant special modules: SPC statistical analysis, CCD composite image, line laser scanning, blade analysis, cylindrical involute gear analysis, cam analysis, network programming, network report;
l The core algorithm is certified by the Physikalisch-Technischen Bundesanstalt (PTB).
