Moving Bridge CMM Coordinate Measuring Machines Naquina 686 CE Certified

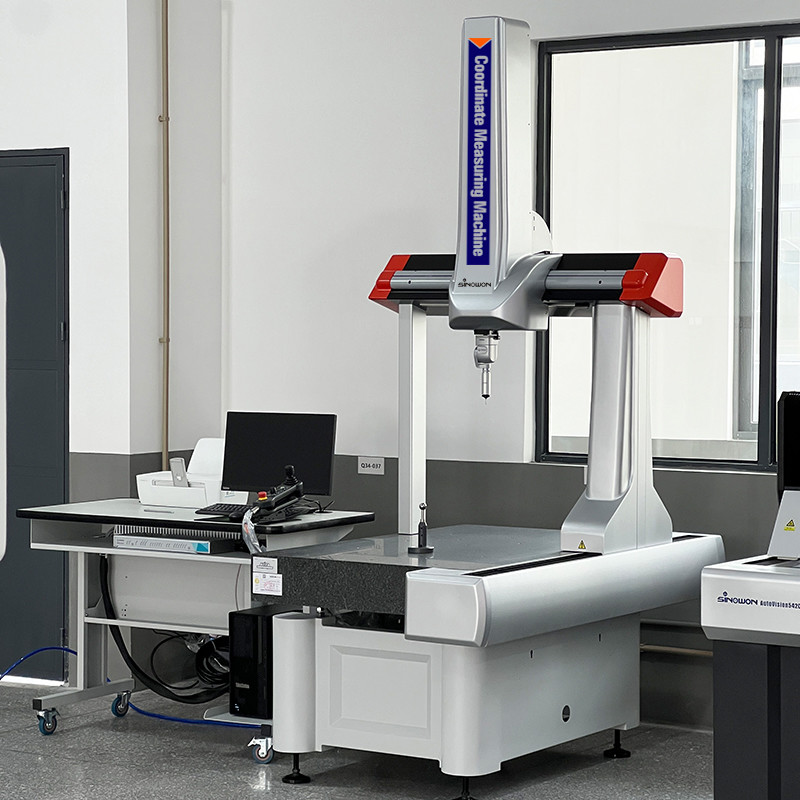

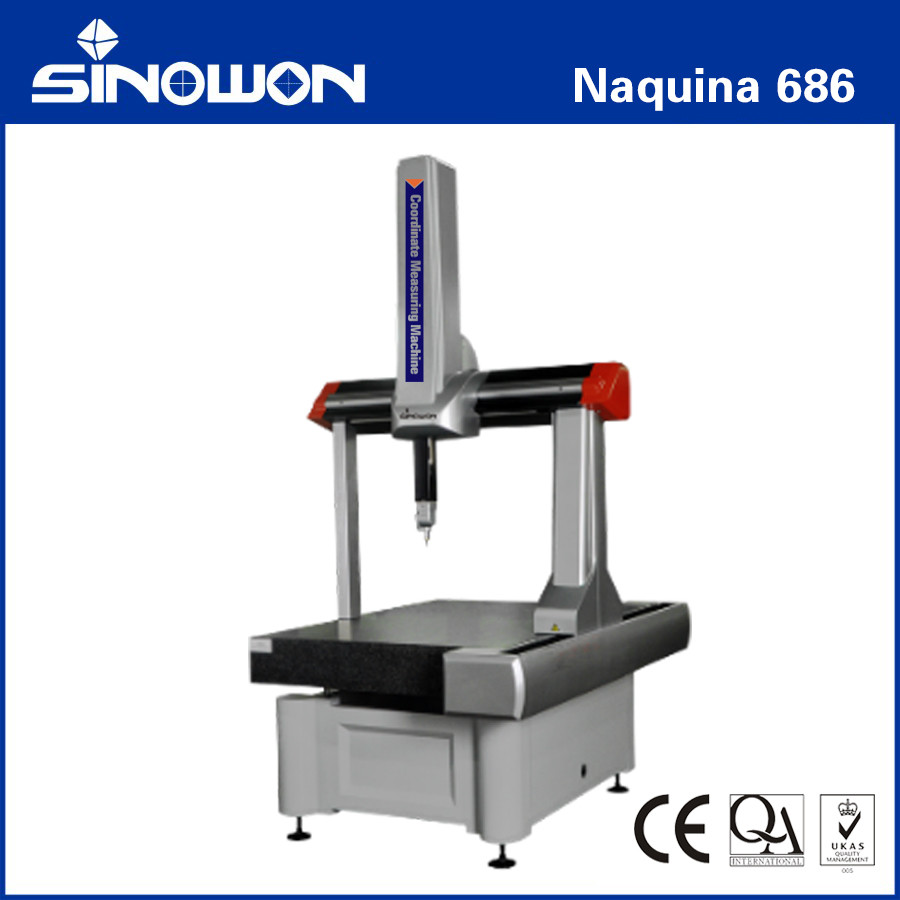

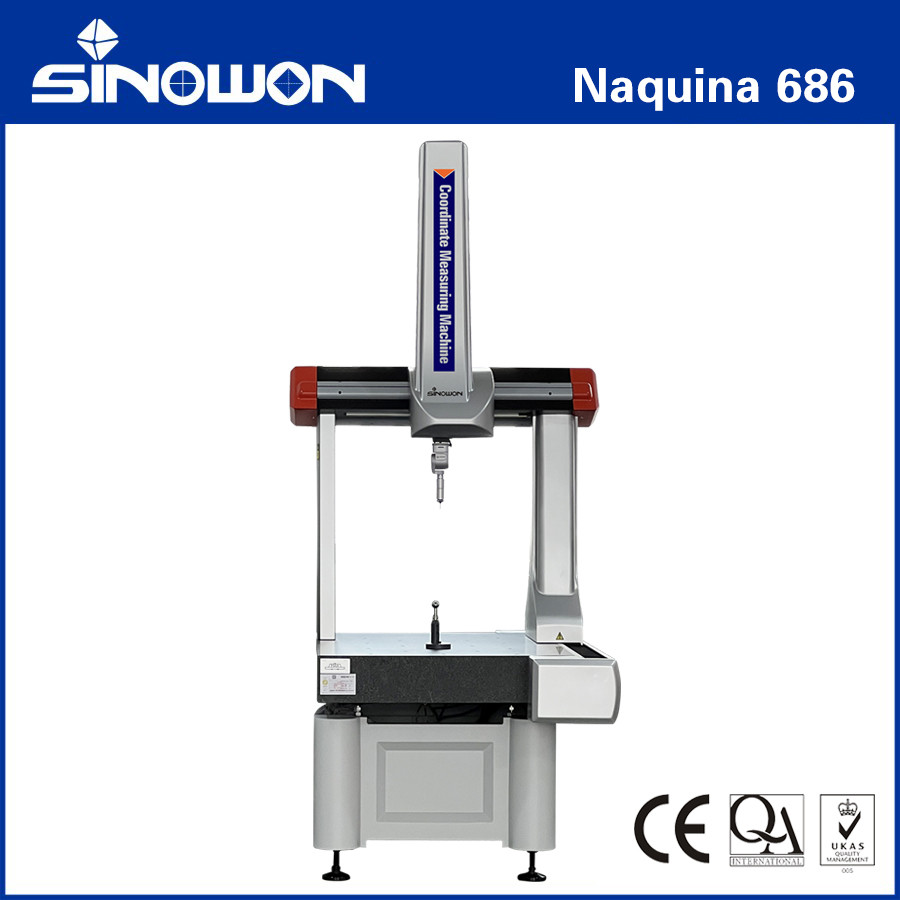

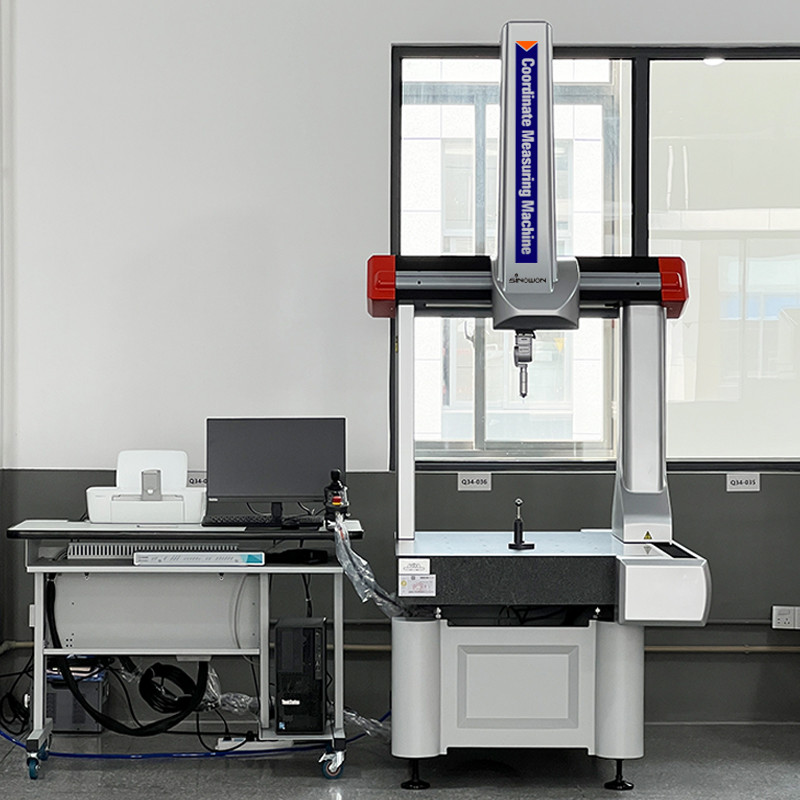

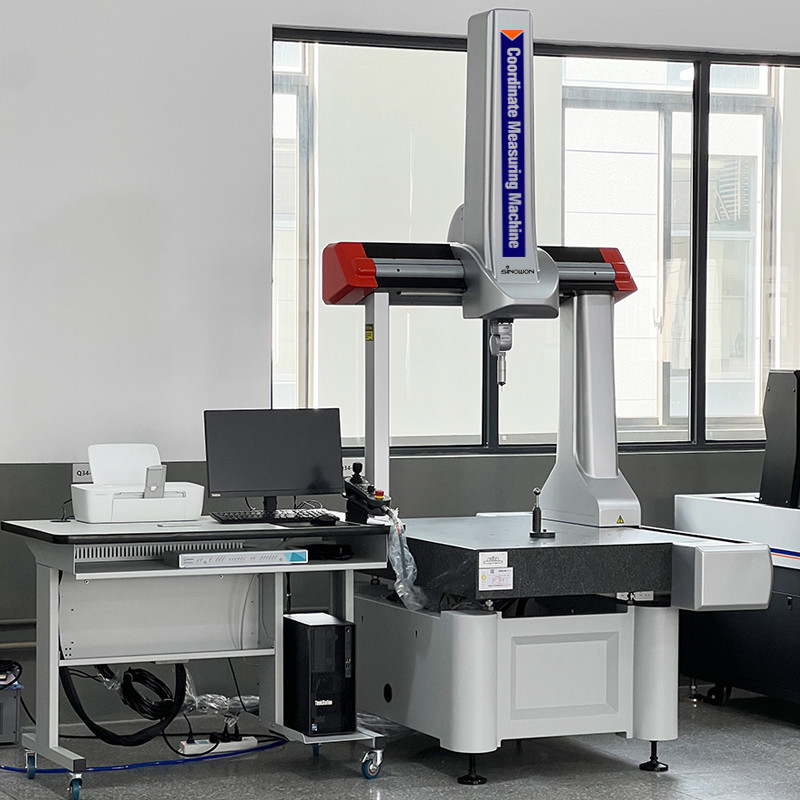

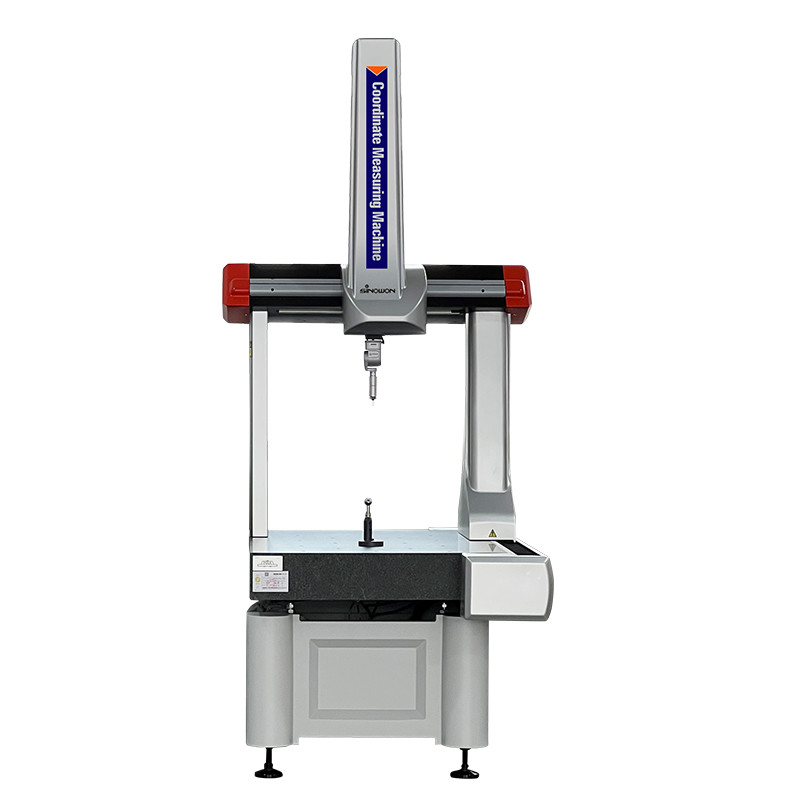

Moving Bridge Coordinate Measuring Machine Naquina 686

Technical Description

Technical Highlight:

• Distinctive TRICISION^TM bridge design for X beam provides optimum stiffness-to-mass ratio. The light alloy bridge is 25 percent stiffer than traditional designs and the X rail has a 50 percent lower center of gravity for smooth, precise movement. Wider bearing separation than competitive bridge designs assures improved control of bridge axis roll for precise volumetric measuring accuracy, reduced repeatability errors, increased acceleration/deceleration and greater measuring throughput.

• Patented precision-machined dovetail guideway in Y axis improves CMM’s accuracy and repeatability.
• All machine axes’ transmission mode is timing belt, whose compact, nonskid structure makes it has excellence of high speed, low noise and easy maintenance.
• Pneumatic counterbalance (adjustable) for Z axis, which makes Z axis operate stably, with automatic brake on emergency condition and keep CMM in safety.
• The scales (gold and steel) of German Heidenhain are certified by PTB (Physikalisch-Technische Bundesanstalt), a German national institute of science and technology. Their excellent veracity and coherence of thermal expansivity ensure the exact and stable thermal compensation.
• Remote mounted drive motors reduce moving mass for faster setting, and dissipate heat away from the machine frame.
• Equipped with the Naquina scanning control system,Inspector can achieve continuous scanning with Leitz X1 scanning probe.
• Equipped with the powerful measuring software(RationalDMIS)which second to none, Inspector can handle any common shop measurement and inspection tasks.

Pecifications:
