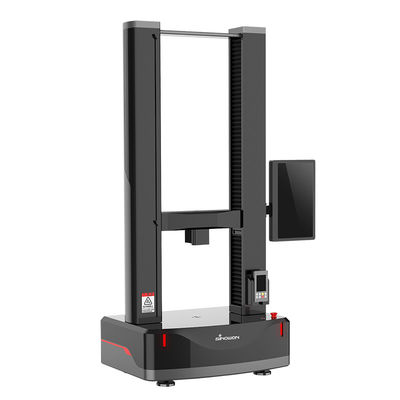

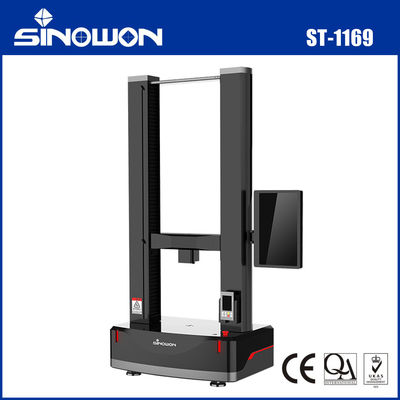

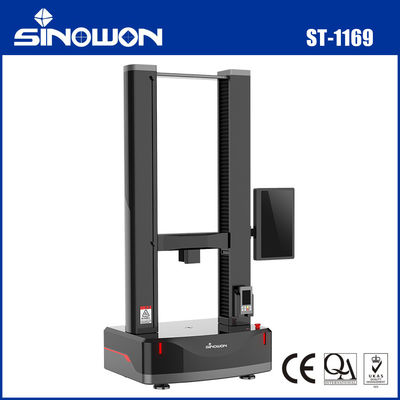

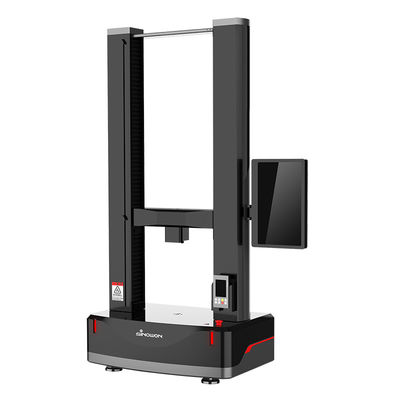

High Precision Computer Servo Tensile & Compression Testing Machine ST-1169
Product Introduction:
ST-1169 High Precision Computer Servo Tensile & Compression Testing Machine is the crystallization of the ninth-generation R&D achievements of Sinowon. It can test the physical properties of various materials, finished products, and semi-finished products. Equipped with a standard professional pneumatic fixture, it supports optional fixtures for tensile, compression, holding tension, holding compression, bending, tearing, peeling, adhesion, and shear tests. It complies with national and international standards such as GB, ISO, ASTM, BS, DIN, and JIS for testing, making it an ideal inspection and research device for factories, technical supervision departments, commodity inspection agencies, research institutes, universities, and other departments. It is suitable for precision research applications in industries including aerospace, petrochemical, machinery manufacturing, metal materials and products, wires and cables, rubber, plastics, paper products, color printing packaging, adhesive tapes, luggage, handbags, textile fibers, food, and pharmaceuticals.
Product Characteristic:
● High Performance
The machine structure adopts German-made precision-ground zero-backlash ball screws and high-precision guide rails, enhancing load efficiency and structural rigidity. It utilizes Japanese- and German-made fully digital AC servo systems, ensuring high transmission efficiency, smooth operation, low noise, and speed accuracy controllable within ±0.1%.
High Precision
Imported high-precision sensors with an effective measuring range of 0.3%–100% F.S. and overall accuracy better than Class 0.3.
● Standardization
Standardized fixture connections enable quick replacement of various test fixtures. Dedicated pneumatic fixtures are essential for high-end instruments.
● High Intelligence
Professional software with an intelligent control interface automatically completes parameter setting, operational state control, data acquisition and processing, result display, and print output. One-click mouse operation for testing and report generation eliminates the need for complex training.
● High Aesthetics
Precision casting combined with meticulously crafted parts processing showcases the exquisitely refined European design style of the whole machine, embodying Sinowon’s unique industrial design aesthetic philosophy.
Software Specifications:
l Utilizes Windows operating platform with point-and-click parameter settings for simple operation;
l Operates on a single screen without the need for screen switching;
l Software interface supports Simplified Chinese, Traditional Chinese, English, and over 30 other languages for convenient switching;
l Quick self-planning test table templates;
l Test data is displayed directly on the main screen; historical data can be imported in real-time for automatic comparison;
l Supports multiple measurement units with switchable metric/imperial systems and customizable unit editing;
l Enables simultaneous comparison of multiple data curves;
l Features auto-return function;
l Features auto-correction function;
l Supports custom test method configuration;
l Automatically calculates and analyzes test data with user-defined formulas;
l Auto-zoom function optimizes graph size for clarity;
l Performs tensile, compression, bending, peeling, sustained tension, sustained compression, fatigue, and other tests;
l Equipped with extensometer for precise measurement of large/small deformations.
Specifications:
| Model |
ST-1169 |
| Capacity Selection |
5, 10, 20, 50, 100, 200, 500, 1000, 2000kg (Select one; Japan NTS) |
| Measurement and Control Software |
Windows Professional test software under the platform |
| Input End |
load cells input , two point extension 1 group input, power input; Internet port input |
| Accuracy of measuring force |
Better than ±0.3% |
| Detective resolution |
1/1,000,000 |
| Test Speed Range |
0.01～2000mm/min, can be set |
| Displacement Resolution |
0.00004mm |
| Test maximum trip |
1000mm (excluding fixtures) |
| Effective Test Space |
Left & right 420mm |
| Unit switch |
Multiple measurement units including international units |
| Shutdown method |
Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing |
| Standard Item |
Standard pneumatic fixture ×1 set; Software and data cable ×1 set; Equipment power cord ×1; Operation Manual ×1; Product Certificate ×1; Product Warranty Card ×1 |
| Optional Item |
Printer ×1; Various test fixtures |
| Dimensions /Weight |
About 710 × 420 × 1600 (W×D×H) / About 140kg |
| Motor power |
AC servo motor |
| Control Method |
Computer measurement and control system |
Load Measurement Accuracy
±0.5% of indicated value, meeting or exceeding the following international standards:
ASTM E-4, BS 1610, DIN 51221, ISO 7500/1, EN 10002-2, JIS B7721, JIS B7733, etc.
Speed Accuracy
±0.1% of set speed
Environmental Requirements
Operating Environment: +10~30°C
Storage Environment: -40~70°C
Humidity: 10%~90% RH.
Self-developed professional testing software complies with over 30 national standards such as GB 228-87 and GB 228-2002. It supports testing and data processing according to GB, ISO, JIS, ASTM, DIN, and user-provided standards, with good scalability.

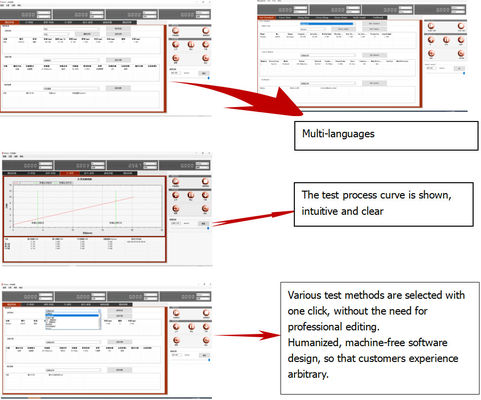

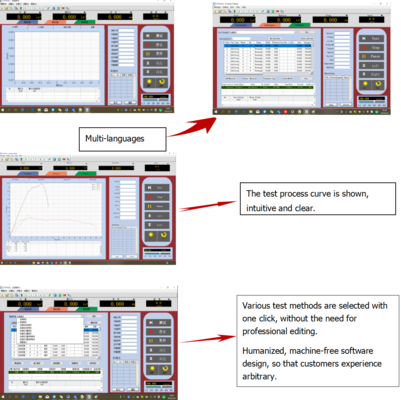

Software:
