Name: Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197
Brand: Hoyamo and Sinowon Inc
SKU: SL-8197
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 752-302

Capacity: 2,5,10,20,50,100,200kg Optional

Accuracy: Better Than ±1.0%

Force Resolution: 1/10,000

Effective Force Measurement Range: 1~100%F.S

Accuracy Of Deformation Indication: Better Than ±1.0%

Test Speed Range: 0.5～500mm/min, Optional

Size: 700*360*300mm

Weight: 30Kg

Test Maximum Stroke: Maximum300mm

Highlight:

Horizontal Universal Testing Machines

Electronic Universal Testing Machines

Horizontal Peel Strength Tester

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SQP

Certification: CE/ROHS

Model Number: SL-8197

Document: D4 Sinowon SL-8197 Horizont...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

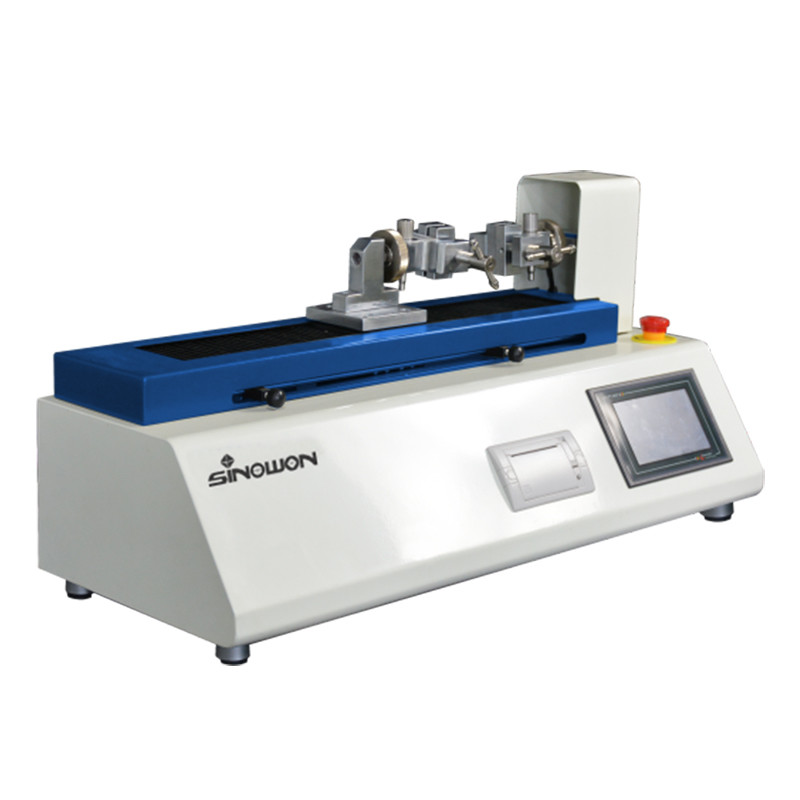

Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197

Product Description

Horizontal Electronic Peel Strength Tester SL-8197

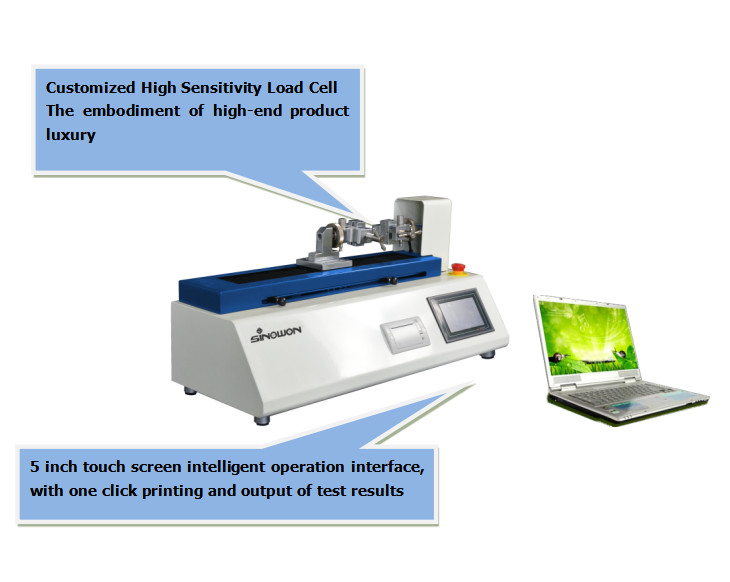

Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197 0

Product Introduction:

The SL-8197 horizontal tensile testing machine is the latest economic horizontal testing machine designed and developed by our company. It is suitable for testing tensile, peel, tear, shear, pulling force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, and conveyor belts. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.

Specifications:

Model	SL-8197	SL-8197B
Code#	752-302	752-302B
Capacity	2,5,10,20,50,100,200kg optional
Display	5 inch display
Accuracy	Better than ±1.0%
Force resolution	1/10,000
Effective force measurement range	1~100%F.S
Accuracy of deformation indication	Better than ±1.0%
Test speed range	0.5～500mm/min, optional
Test maximum stroke	Maximum300mm
Power unit switching	Kgf, gf, N, kN, Ibf
Stress unit switching	MPa, kPa, kgf/cm², Ibf/in²
Transformation unit switching	Mm, cm, in
Stop Method	Left and right limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection
Pointing method	Manual point selection and pre-set point selection (20 points) function during the test process
PC Linked	N/A	Yes
Accessary	Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics	Standard Grips 1 pair, printer 1 pics, U disk 1 pics, CD operation manual 1 set, quality pass 1 pics, warranty 1 pics
Dimension	Around 700360300mm(W×D×H)
Weight	Around 30kg
Motor	Step motor
Power	AC220V, 50/60Hz, 10A or customized

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.

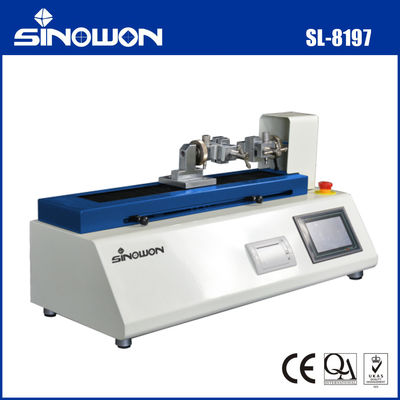

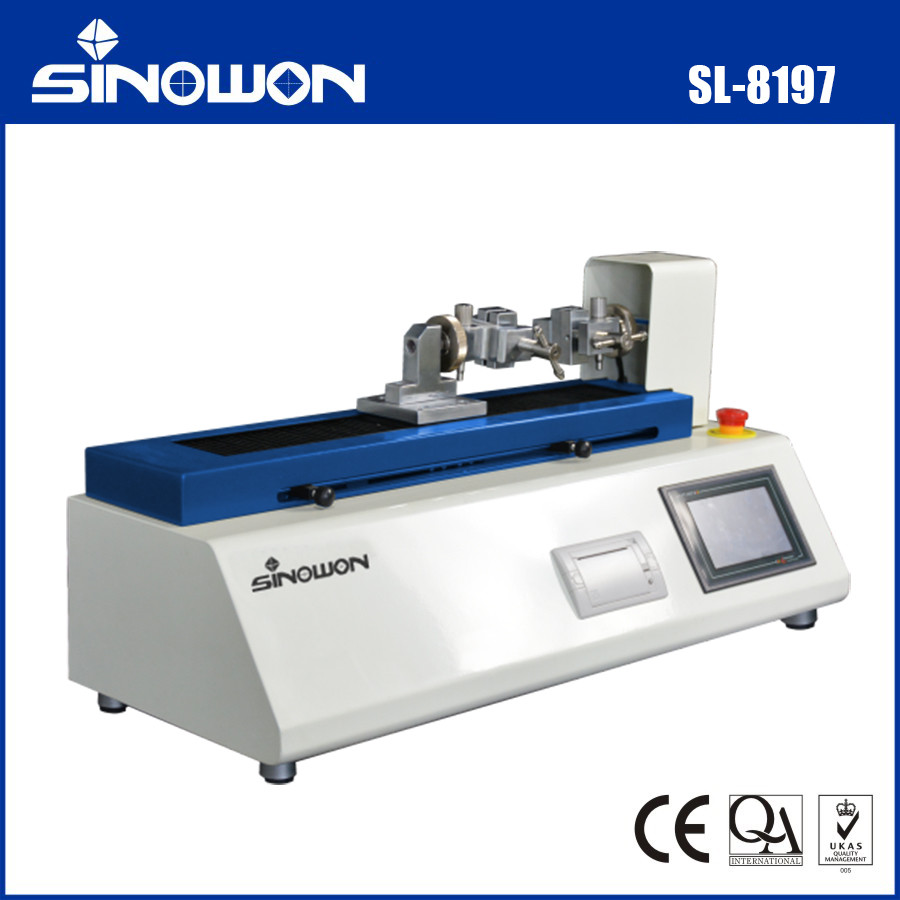

Horizontal Universal Testing Machines Electronic Peel Strength Tester SL-8197 1
