Name: Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz
Brand: Hoyamo and Sinowon Inc
SKU: SL-8198
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 752-122

Capacity: 2,5,10,20,50,100,200kg Optional

Accuracy: Better Than ±1.0%

Size: 450*280*680mm

Weight: 25Kg

Max. Stroke: 500mm, Excluding Grips

500mm, Excluding Grips: 90mm

Highlight:

Compression Universal Testing Machines

Universal Testing Machines 50Hz

Universal Tensile Strength Machine

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SQP

Certification: CE/ROHS

Model Number: SL-8198

Document: D4 Sinowon SL-8198 Tensile ...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

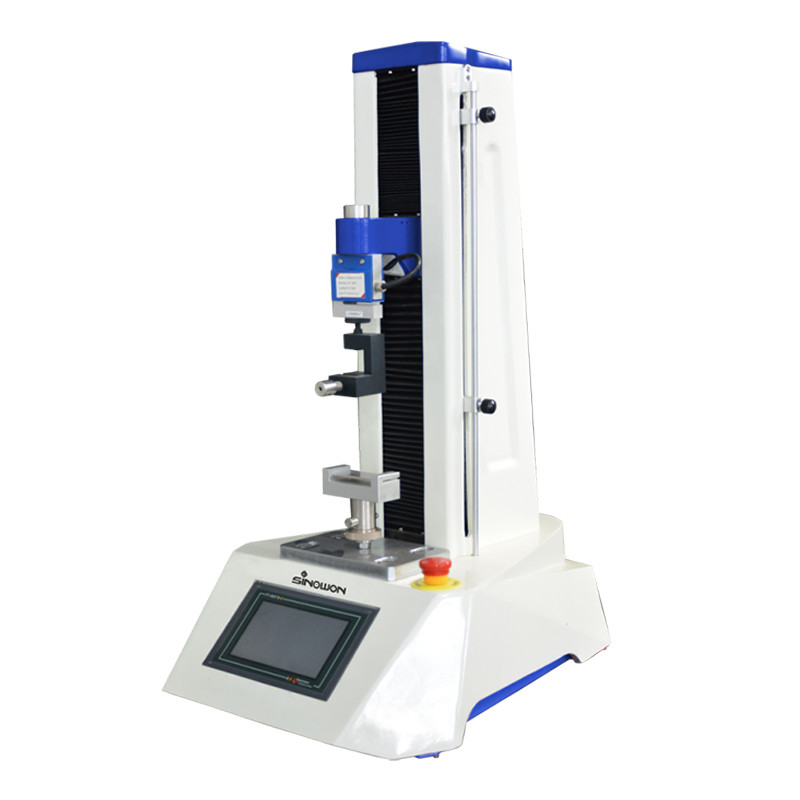

Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz

Product Description

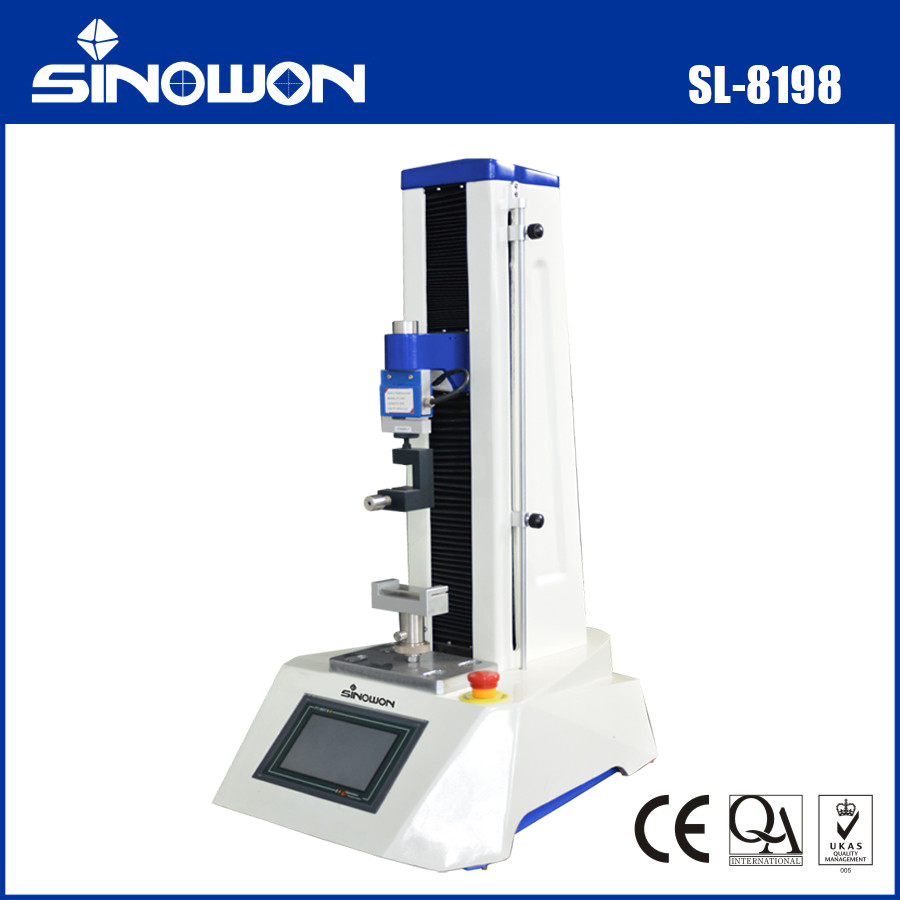

Tensile Strength Machine SL-8198

Product Introduction:

The SL-8198 tensile (compression) machine is the latest economic testing machine designed and developed by our company, suitable for testing tensile, peel, tear, shear, pull-out force, fatigue, etc. in industries such as adhesive products, paper products, printing and packaging, food, electronics, buttons, etc. This testing machine has high cost-effectiveness, convenient operation, and simple maintenance, making it an ideal equipment for quality testing and production assistance in various factories and enterprises.

Specifications:

Model	SL-8198(screen display)	SL-8198B(computer linked)
Code#	752-122	752-122B
Capacity	2,5,10,20,50,100,200kg optional
Accuracy	Better than ±1.0%
Measurement unit switching	Kgf, gf, N, kN, Ibf
Stress unit switching	MPa, kPa, kgf/cm2, Ibf/in2
Speed	0.5～500mm/min (screen setting)
Length	Mm, cm, in
Testing functions	Pull, Press, Bending and so on
Functions	Fracture, pressure holding, timing, fixed force value, positioning displacement, and elongation display
Displacement measurement	Available
Max. Stroke	500mm, excluding grips
Space (front & back)	90mm
Grips	Choose any one set of stretching or compression fixtures
PC Linked	N/A	PC software
Weight	Around 25kg
Dimension	Around 450280680mm(W×D×H)
Power	220V, 50Hz( or 110V, 60Hz)

Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.

Compression Universal Testing Machines Tensile Strength Machine 50Hz / 60Hz 1
