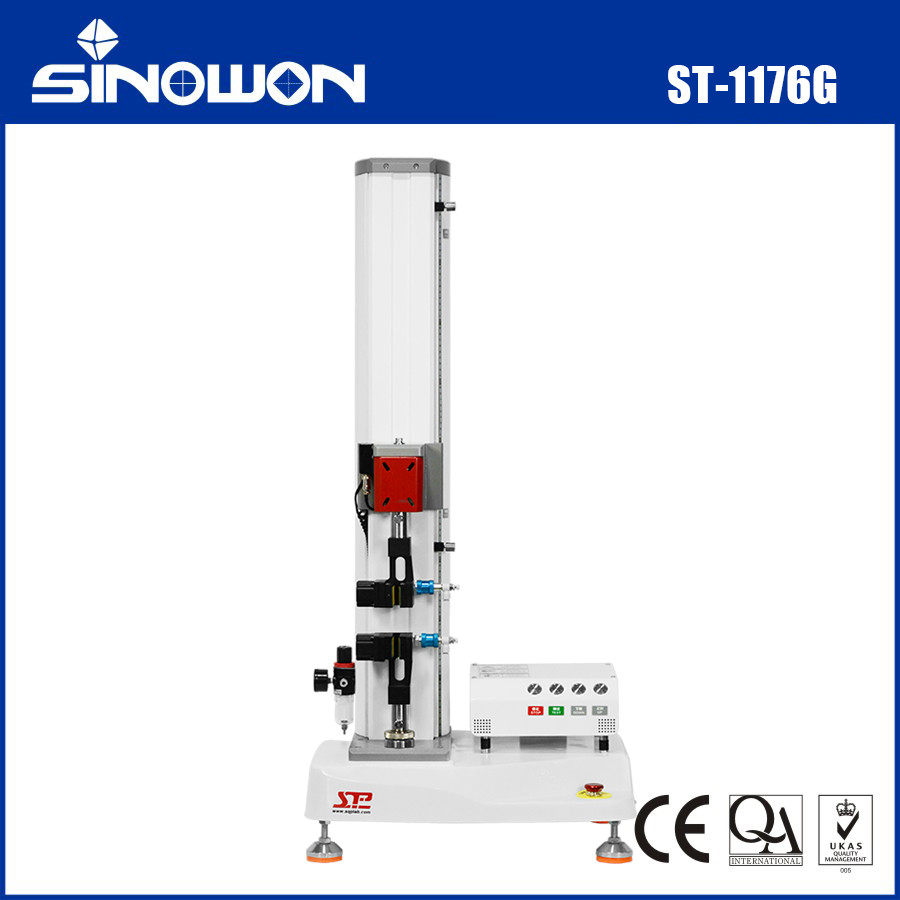

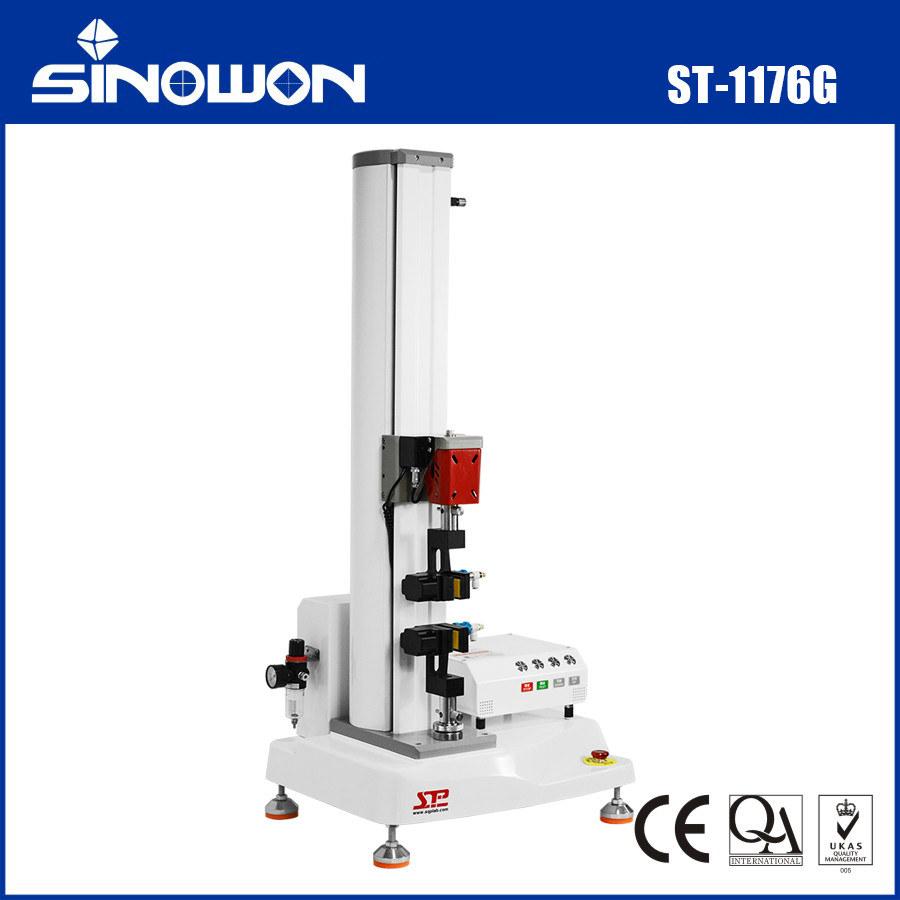

Computer Servo Pull Pressure Test Machine ST-1176G CE / ROHS Approved

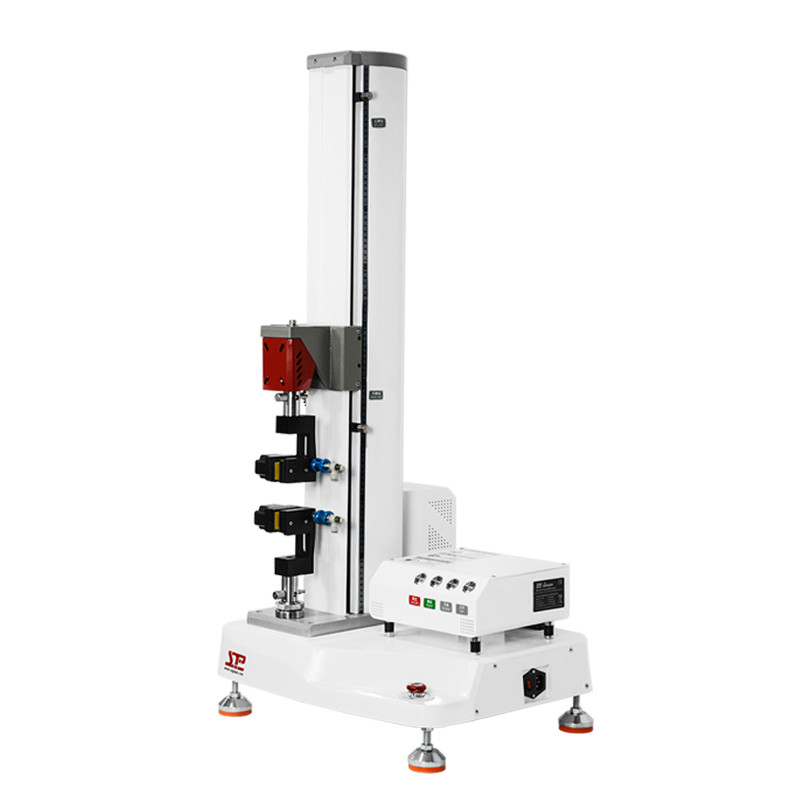

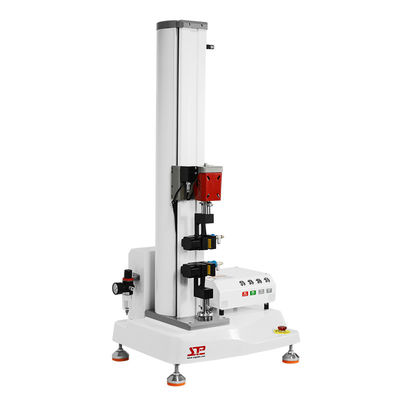

Computer Servo Pull Pressure Test Machine ST-1176G

Product Introduction:

The ST-1176G computer servo tension and pressure testing machine is specially developed and manufactured by our company for the needs of high-precision testing. The instrument is equipped with a new transmission structure, running smoothly and without noise. It adopts customized high-precision sensors, ensuring force measurement accuracy, and is particularly suitable for the technical research and development of various adhesive materials. The instrument can be equipped with different fixtures for 180 degrees ˚ Peel test, 90 ˚ Peel test, T-shaped peel test, and floating roller peel test (applicable to high-strength adhesives) can also be used to test the tensile shear strength, splitting strength, and other tests of adhesive products, which can meet different testing standards.

Product Characteristic:

• High-performance

The machine structure adopts no pless ball screw and high stiffness guide column, which improves the load efficiency and structural rigidity. Using the full digital AC servo system, to ensure the high transmission efficiency, stable transmission, low noise, speed accuracy can be controlled within ± 0.2%;

• High-accuracy

Customized high-precision sensors with an effective measurement range of 0.5% to 100% F.S, with a comprehensive accuracy better than level 0.5;

• Standardization

Grip connection standardization, can quickly replace a variety of test applicable fixtures;

• High wisdom

Professional software intelligent control interface, automatically complete parameter setting, working state control, data acquisition and processing analysis, result display and printing output; mouse click one-click control, one-click output test report, without tedious education and training; One click automatic calibration ensures the accuracy and consistency of test data.

• Gorgeous

Precision casting, combined with finely crafted spare parts processing technology, presents the exquisite and atmospheric European design style of the entire machine.

Software Specifications:

• Adopting self-developed specialized testing software for tensile and compressive testing machines;
• Using windows working platform, parameter set all point selection, simple operation;
• Single screen operation, no need for screen switching
• The software interface has simplified Chinese, traditional Chinese and English three languages, easy to switch;
• The test form mode can be regulated by itself;
• Test data can be called directly in the main screen;
• With a variety of measurement units, the metric British system can be switched;
• Data comparison of multiple curves can be performed simultaneously;
• With the automatic return function;
• With the automatic correction function;
• With the custom-defined test method function;
• With the test data operation and analysis function;
• With the function of automatic magnification, in order to achieve the most appropriate size of the figure;
• Can do tensile, compression, bending, stripping, pull, pressure, fatigue and other tests.

Specifications:

Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.
