Name: Small Universal Testing Machines Pull Pressure Testing Machine ST-1162
Brand: Hoyamo and Sinowon Inc
SKU: ST-1162
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Code#: 752-222

Capacity: 2,5,10,20,50,100,200,500kg Of Either Option

Accuracy: Better Than ±1.0%

Force Resolution: 1/10,000

Effective Force Measurement Range: 1~100%F.S

Deformation Value Accuracy: Better Than ±1.0%

Test Speed Range: 1~500mm / Min, For Any Set

Size: 630*400*1100mm

Weight: 55Kg

Test Maximum Trip: Maximum Of 700mm, Without Fixture

Highlight:

Small Universal Testing Machines

CE Universal Testing Machines

Small Pull Pressure Testing Machine

Basic Infomation

Place of Origin: Dongguan, China

Brand Name: SQP

Certification: CE/ROHS

Model Number: ST-1162

Document: D4 Sinowon ST-1162 Small Pu...a1.pdf

Payment & Shipping Terms

Packaging Details: Plywood

Delivery Time: 15 work days

Payment Terms: L/C, T/T

Supply Ability: 100 Sets/Month

Gallery

Small Universal Testing Machines Pull Pressure Testing Machine ST-1162

Product Description

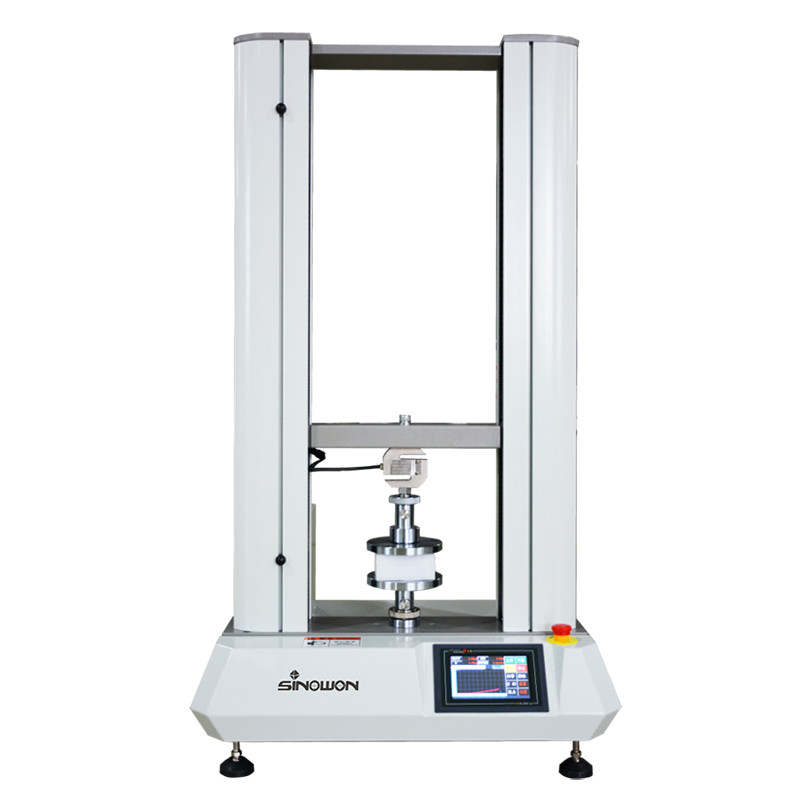

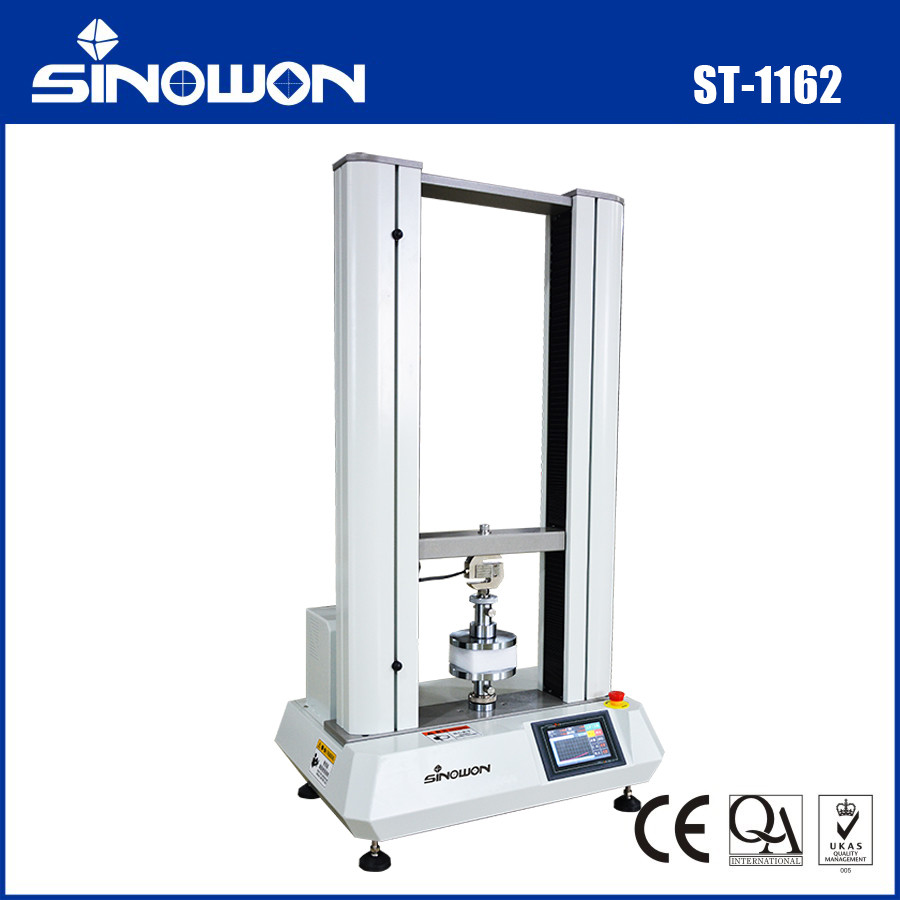

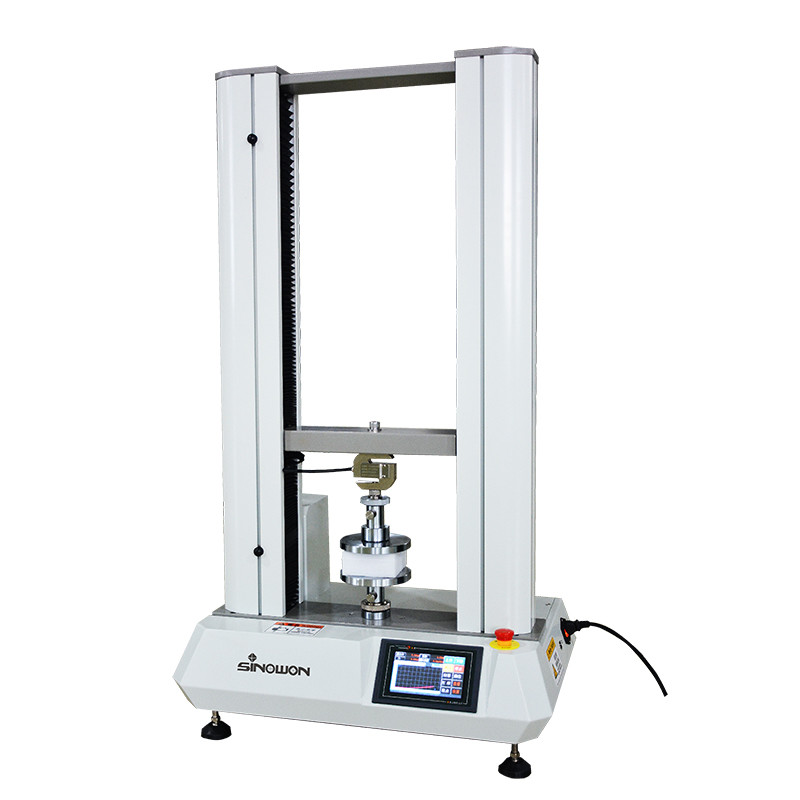

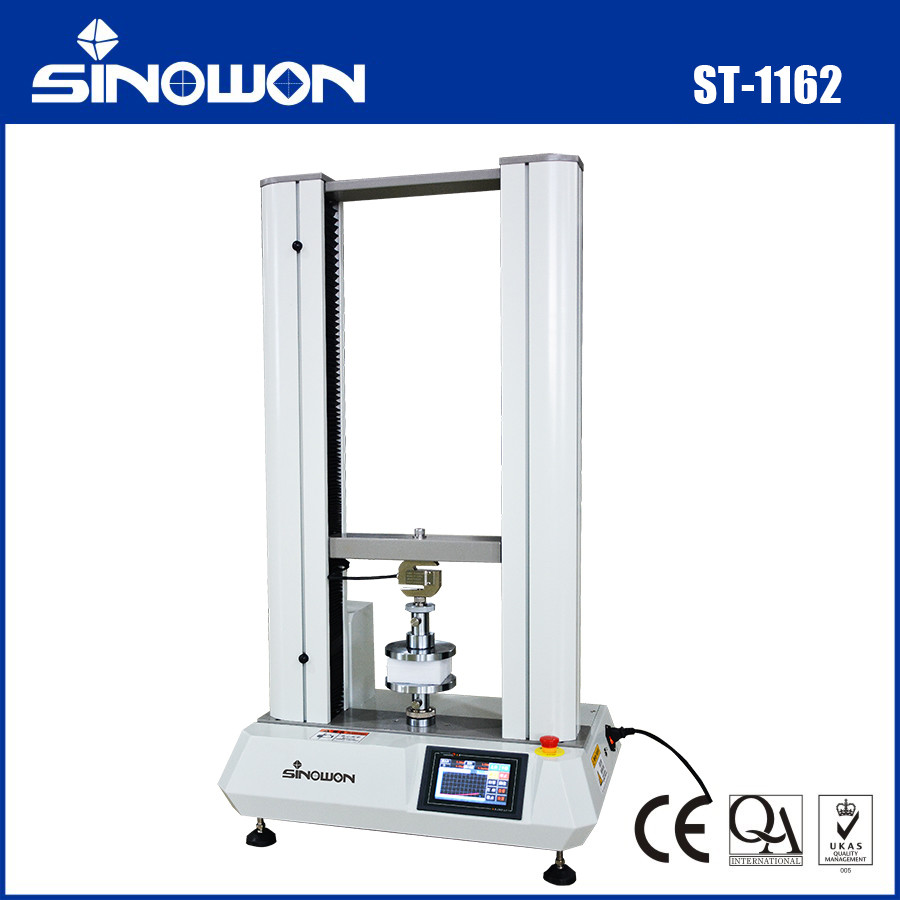

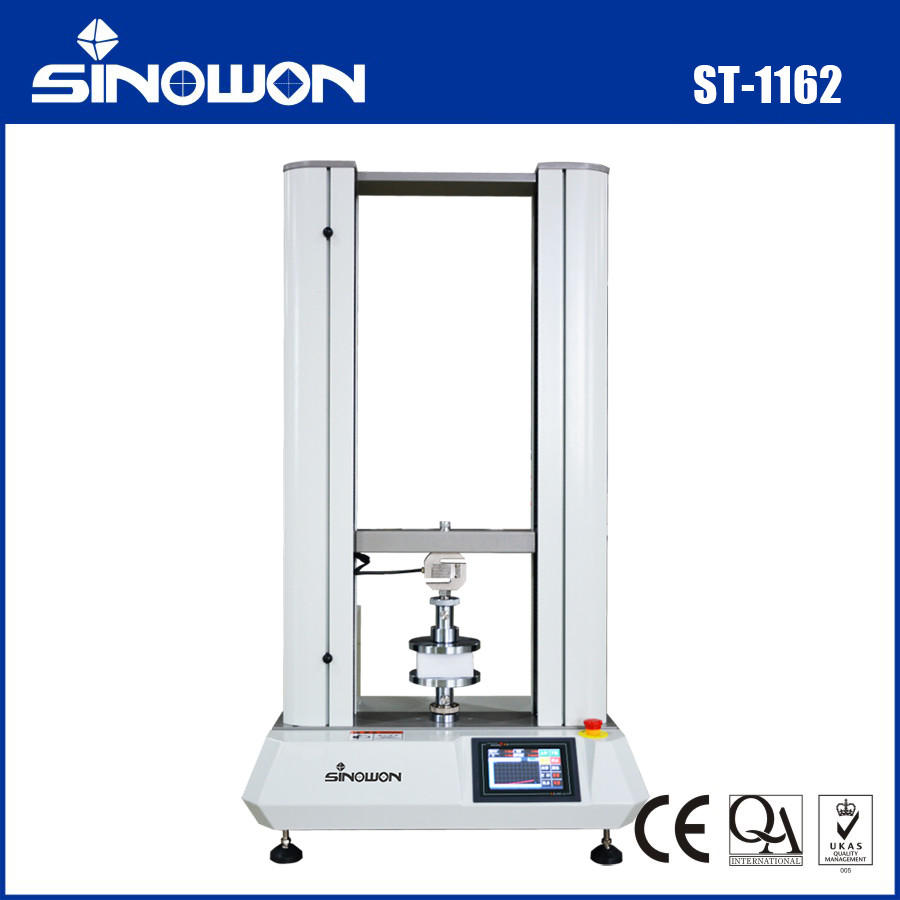

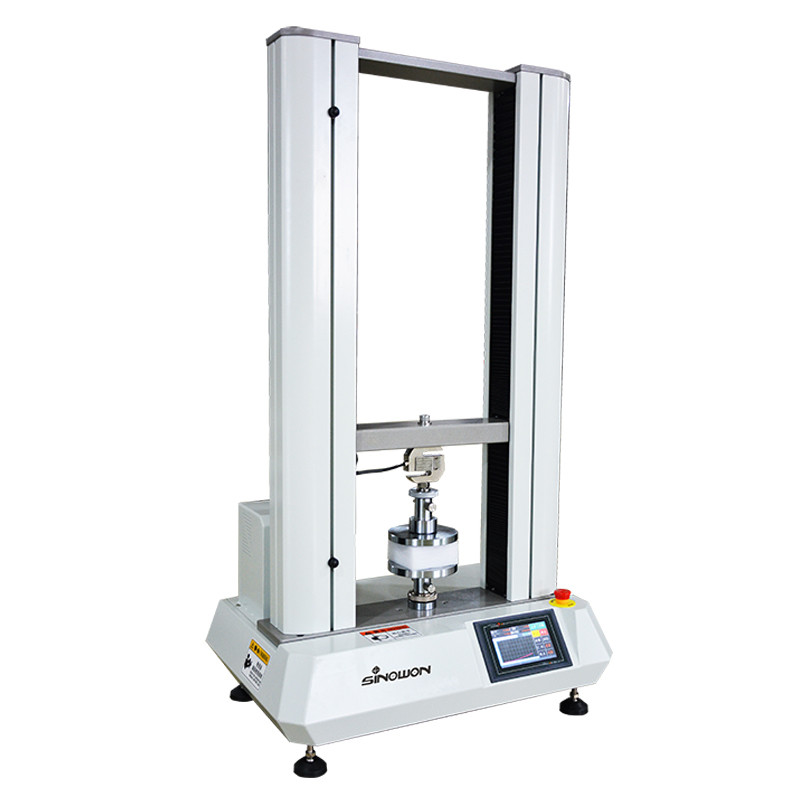

Small Pull Pressure Testing Machine ST-1162

Small Universal Testing Machines Pull Pressure Testing Machine ST-1162 0

Product Introduction:

ST-1162 is the company's latest development of a small pressure test machine, mainly suitable for hardware, rubber plastic, paper, color printing packaging, adhesive tape, bags, textile, medicine, daily chemical, food, wire electronics and other industries. Can do a variety of materials, semi-finished products and finished products of pulling, pressing, bending, folding, shear, tear, stripping and other forms of test.

Specifications:

Model	ST-1162	ST-1162B
Code#	752-222	752-222B
Capacity selection	2,5,10,20,50,100,200,500kg of either option
Indicator	Power and extension display
Accuracy of measuring force	Better than ± 1.0%
Detective power resolution	1/10,000
Effective force measurement range	1~100%F.S
Deformation value accuracy	Better than ± 1.0%
Test speed range	1~500mm / min, for any set
Test maximum trip	Maximum of 700mm, without fixture
Effective test space	Left and right, 300mm, front and back
Power unit switch	k gf,gf ,N,kN,Ibf
Stress unit switching	MPa,kPa,kgf/cm2,Ibf/in2
Deformation unit switching	mm,cm,in
Downtime method	Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing
Take some way	Functions of manually taking points and preset taking points (20 points) during the test
Computer expansion	Have
Standard layout	1 standard fixture, 1 equipment power cable, 1 operation manual, 1 product certificate, 1 product warranty card	1 payment of standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card
Machine size	Approx. 6304001100mm (WDH)
Machine weight	About 55kg
Motive power	Stepper motor
Source	1 PH, AC220V, 50 / 60Hz, 10A, or specified

Professional test software complies with GB228-87, GB228-2002 and other more than 30 national standards, and can provide various standards according to GB, ISO, JIS, ASTM, DIN and users for testing and data processing, and has good scalability.

Software:
