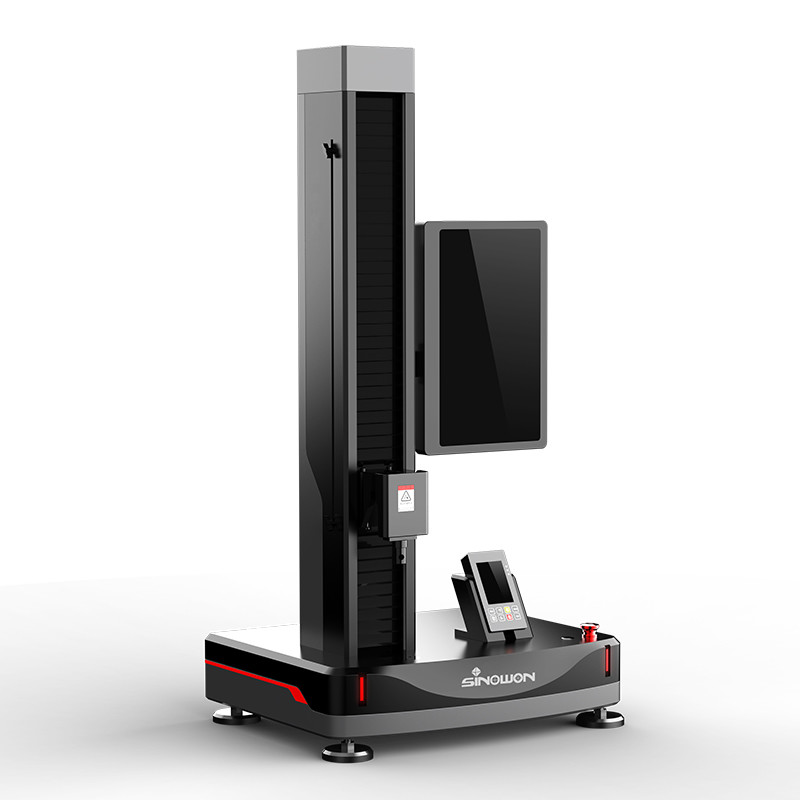

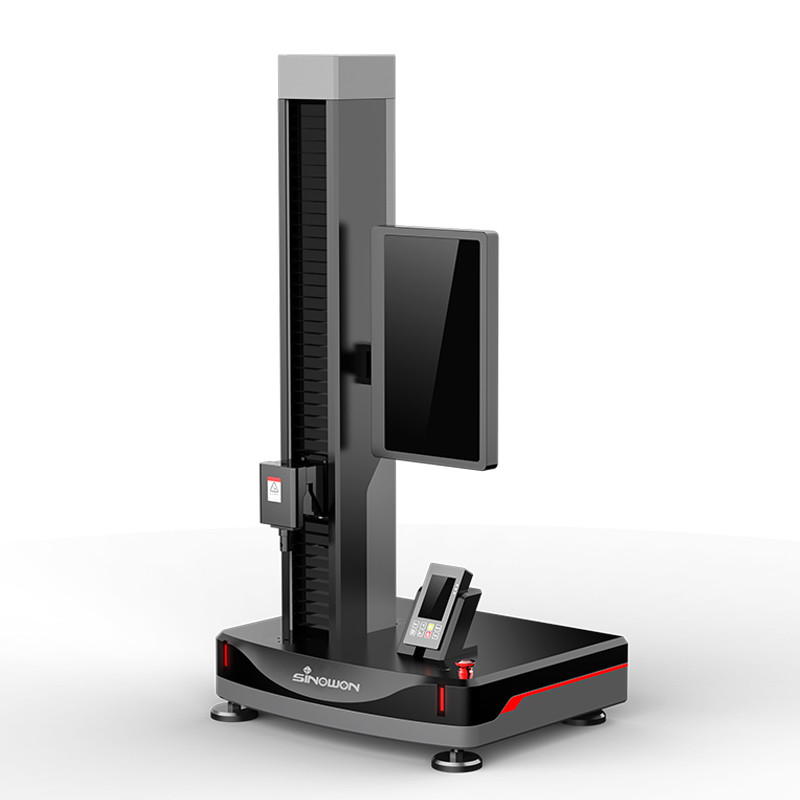

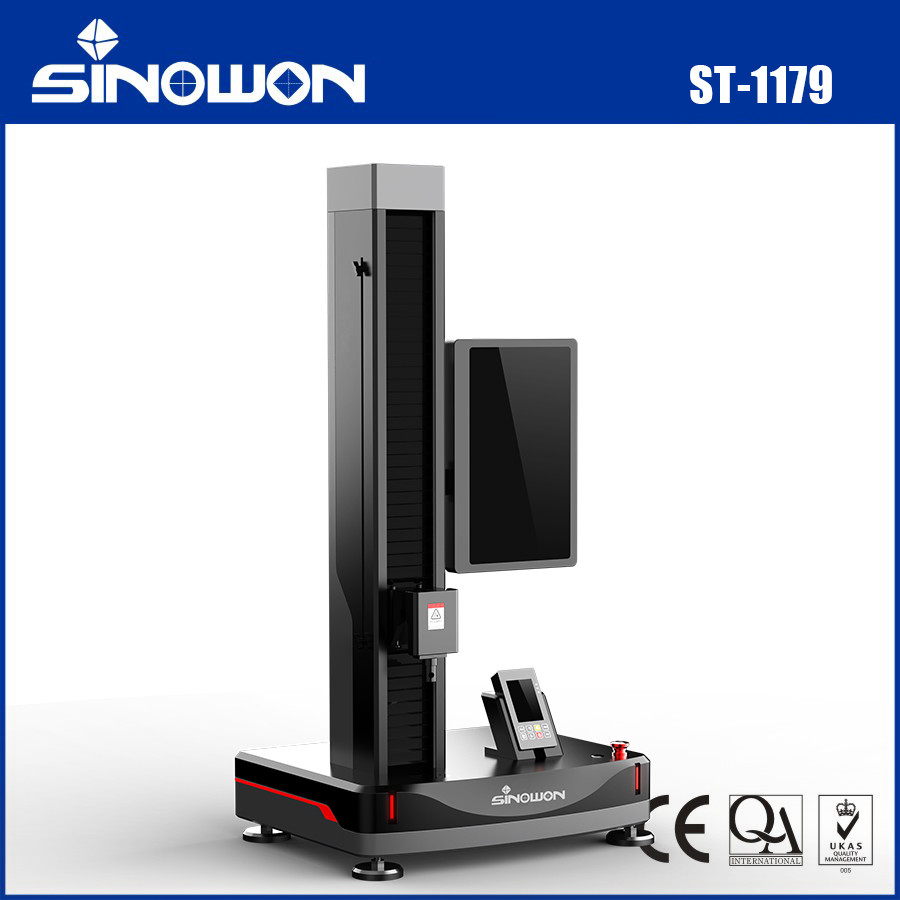

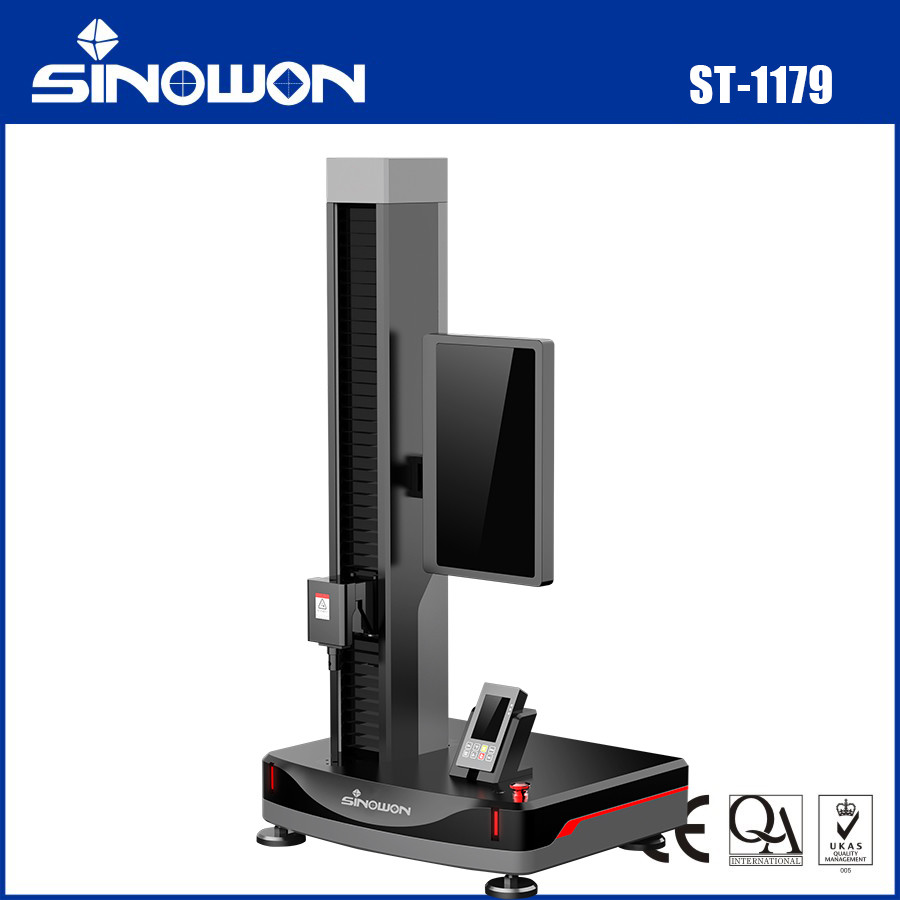

High Precision Computer Type Tensile Compression Testing Machine ST-1179
Product Introduction:
Can test the physical properties of various materials and finished products, semi-finished products, buy a variety of different fixtures can do tensile, compress, tensile, bending, tearing, stripping, adhesion, shear and other tests. It is suitable for fine research in aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber and plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries.
Product Characteristic:
The machine structure adopts the interstitial ball screw and the high stiffness guide column, which improves the load efficiency and the structural rigidity. Adopt full digital ac servo system to ensure high transmission efficiency, smooth transmission, low noise, speed accuracy can be controlled within ±0.1%.
Imported high-precision sensor, effective measurement range 0.3% ~ 100%F.S, the comprehensive accuracy is better than 0.3 grade.
Fixture connection standardization, can quickly replace various test fixture;
Professional software intelligent control interface, automatic parameter setting, working state control, data acquisition and processing analysis, results display and print output; Mouse click one-button control, one-button output test report, without tedious education and training.
Aluminum extruded sealing plate, with the exquisite processing technology of spare parts, presents the exquisite European design style of the whole machine, and embodies the unique aesthetic proposition of our industrial design.
Software Specifications:
- Windows platform, parameter setting all click, simple operation;
- Single screen operation, no screen switching
- Software interface with simplified Chinese, traditional Chinese and English three languages, easy to switch;
- Can test the form mode by itself.
- Test data can be directly called in the main screen;
- With a variety of units of measurement, the metric system can be switched;
- The data of multiple curves can be compared simultaneously.
- With automatic return function;
- Automatic correction function;
- It has the function of custom test method.
- Test data operation and analysis function;
- Automatic magnification to achieve the most appropriate size of the graphics;
- It can be used for tensile test, compress test, bending test, stripping test, tension test, pressure test and fatigue test.
- Equipped with an extensometer, it can accurately measure large and small deformations, etc.
Specifications:
| Model |
ST-1179 |
| Code# |
752-142 |
| Capacity |
5,10,20,50,100,200,500kgf, one option(American Interface) |
| Software |
Windows professional testing software |
| Input Terminals |
load cells input , two point extension 1 group input, power input; Internet port input |
| Measurement Accuracy |
Better than ±0.5% (GB-0.5 class)
|
| Force Resolution |
1/1,000,000 |
| Test Speed |
0.01～3000mm/min, free set |
| Displacement Resolution |
0.00004mm |
| Test Travel |
Max 700mm,1000mm, one option,exclude grip |
| Effective Test Space |
Dia. 120mm |
| Unit Switch |
Any of various units of measurement, including international units |
| Stop Method |
Upper and lower limit safety setting, emergency stop button, program strength and elongation setting, test piece failure |
| Standard Configuration |
Fixture/grip* 1 pair, software and data line *1 sets, power supply*1, operating manual*1, product certification *1 copy, warranty card*1 |
| Alternative Configuration |
printer 1 set, other kinds of test fixtures/grips (purchase separately) |
| Size/Weight |
About 570*470*1500mm(W×D×H) / about 70kg |
| Motor |
AC servo motor |
| Control Model |
Computer measurement and control system(removable type) |
Load Measurement Accuracy : + / - 0.5% of the indicators met or exceeded the following international standards: ASTM E-4, BS 1610, DIN 51221, ISO7500/1, EN10002-2, JIS B7721, JIS B7733
Speed Accuracy : ±0.1% of set speed
Environment Condition :
Working:+10~30℃ storage:-40~70℃ Humidity:10%~90%RH
The independently developed professional testing software complies with more than thirty national standards such as GB228-87 and GB228-2002, and can conduct testing and data processing according to various standards provided by users such as GB, ISO, JIS, ASTM, DIN, and has good scalability.
