Small Universal Testing Machines Tensile Compression Column Testing Machine 55Kg

1 Sets
MOQ
Can be discussed
Price
Small Universal Testing Machines Tensile Compression Column Testing Machine 55Kg
Features Gallery Product Description Request A Quote
Features
Specifications
Code#: 752-202
Size: 630*400*1100mm
Weight: 55Kg
Capacity: 2,5,10,20,50,100,200,500kg (optional)
Displays: Power And Extension Display
Accuracy: Better Than ±1.0%
Force Resolution: 1/10, 000
Speed: 1~500mm/min, Optional
Max. Stroke: Max.700mm, Grips Excluded
Highlight:

Universal Testing Machines Compression

,

Universal Testing Machines 55Kg

,

Tensile Compression Column Testing Machine

Basic Infomation
Place of Origin: Dongguan, China
Brand Name: SQP
Certification: CE/ROHS
Model Number: SL-8162
Payment & Shipping Terms
Packaging Details: Plywood
Delivery Time: 15 work days
Payment Terms: L/C, T/T
Supply Ability: 100 Sets/Month
Product Description

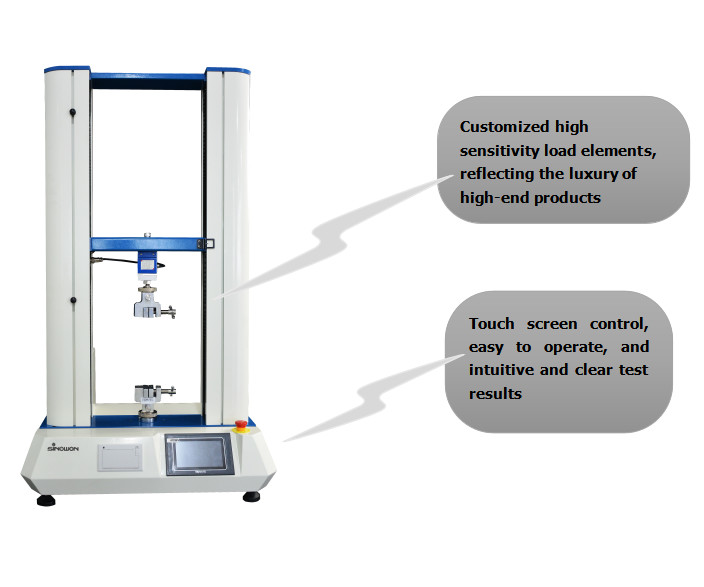

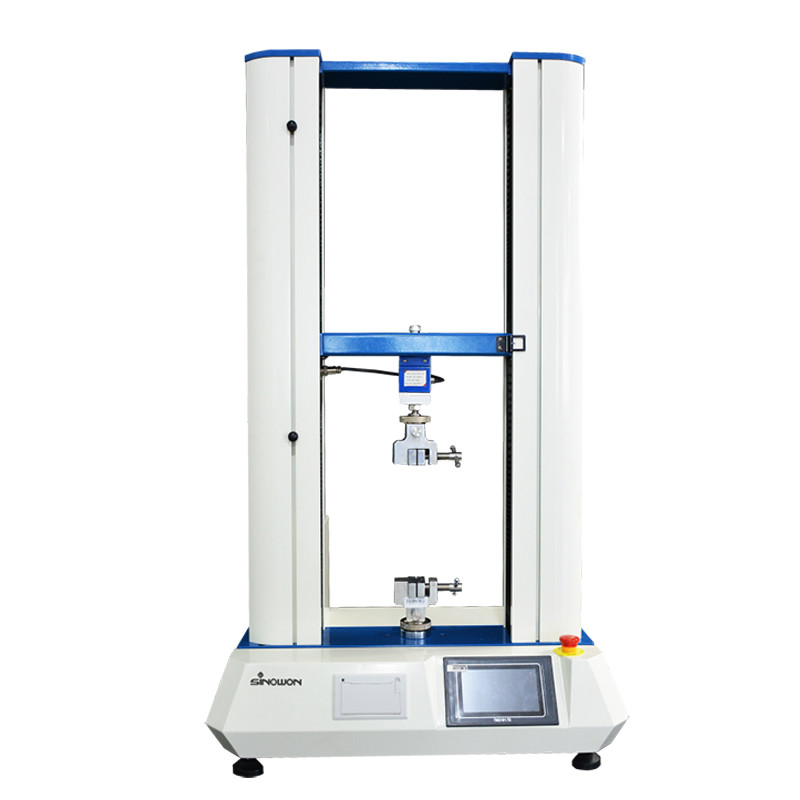

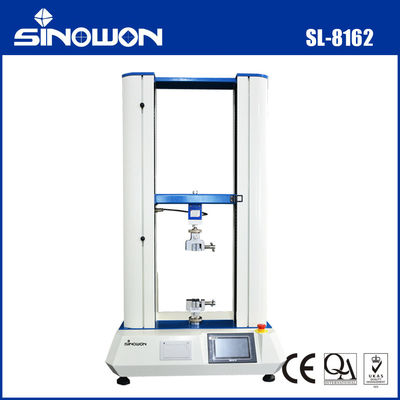

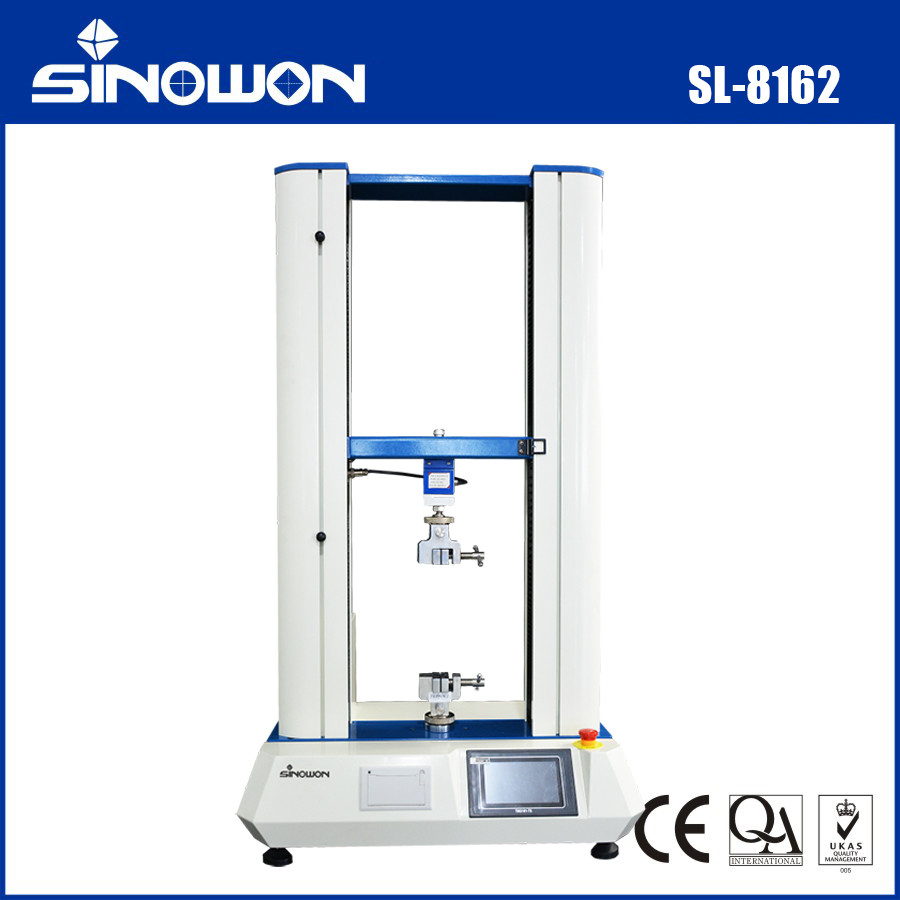

Twin Column Tensile Compression Testing Machine SL-8162



Small Universal Testing Machines Tensile Compression Column Testing Machine 55Kg 0







Product Introduction:



SL-8162 is a small tensile and pressure testing machine developed by our company, mainly suitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wire electronics, etc. It can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc.



Specifications:



Model SL-8162 SL-8162B
Code# 752-212 752-212B
Capacity 2,5,10,20,50,100,200,500kg (optional)
Displays Power and Extension Display
Accuracy Better than ±1.0%
Force resolution 1/10, 000
Effective force measurement range 1~100%F.S
Accuracy of deformation indication Better than ±1.0%
Speed 1~500mm/min, optional
Max. Stroke Max.700mm, grips excluded
Effective test space 300mm left and right, front and back
Measurement unit switching Kgf, gf, N, kN, Ibf
Stress unit switching MPa, kPa, kgf/cm2, Ibf/in2
Transformation unit switching Mm, cm, in
Stop method Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection
Spotting method Manual point selection and pre-set point selection (20 points) function during the test process
PC Linked N/A Yes
Accessary Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics Standard Grips 1 pair, cable 1 pics, manual 1 set, quality pass 1 pics, warranty 1 pics
Dimension Around 630*400*1100mm(W×D×H)
Weight Around 55kg
Motor AC servo
Power 1PH, AC220V, 50/60Hz, 10A or customized



Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
